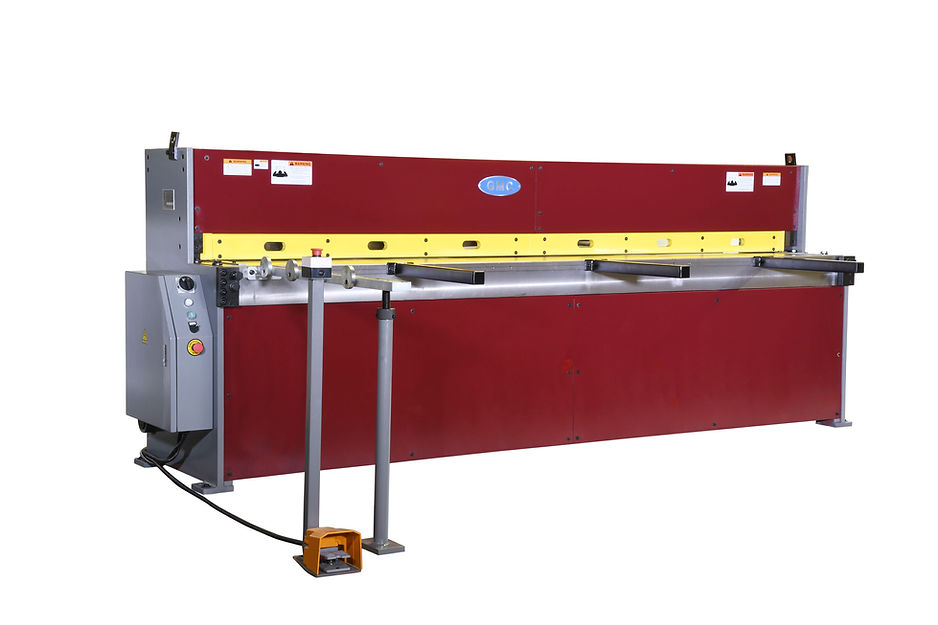

GMC Machinery 10’ x 14 Gauge 220V Three Phase Hydraulic Shear with Manual Back Gauge HS-1014MD
$12,425.00Current price is: $12,425.00.
- 26" Manual Back Gauge
- Cutting Capacity Mild Steel: 10’ x 14 Ga
- Cutting Capacity Stainless Steel: 10’ x 18 Ga
- Main Motor: 5-1/2 HP
GMC Machinery 10’ x 14 Gauge 220V Three Phase Hydraulic Shear with Manual Back Gauge HS-1014MD is a GMC Machinery product in the Shears collection.
Product Details
- 26" Manual Back Gauge
- Cutting Capacity Mild Steel: 10’ x 14 Ga
- Cutting Capacity Stainless Steel: 10’ x 18 Ga
- Main Motor: 5-1/2 HP
- Standard Features
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- Standard Equipment
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot
- Specifications
- Cutting capacity: Mild Steel: 10’ x 14Ga. Stainless Steel: 10’ x 18 Ga
- Mild Steel: 10’ x 14Ga.
- Stainless Steel: 10’ x 18 Ga
- Blade Length: 10’1”
- Strokes per Minute Adjustable: 14-18
- Throat Depth: 16”
- Worktable Height: 30-1/2”
- Front Support Arm: 24”
- Back Gauge, Manual: 26” Manual
- Blade Rake Angle: 1.5 Degree
- Oil Tank Cap.: 20gal
- Main Motor: 5-1/2 HP, 220V – 3PHASE
- Machine Weight: 5,200 LBS
- Machine Dimensions: 139”X35”52”
- Options
- Safety fence for enclosure of the back side of the machine
Specifications
- Manufacturer: GMC Machinery
- SKU: HS-1014MD (220V)
- Shipping Method: Flatbed
- Weight: 5,200 lb
- Dimensions: 139 × 35 × 52 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 5200.0 lbs |
|---|---|
| Dimensions | 139.0 × 35.0 × 52.0 in |
| Brand | GMC Machinery |
