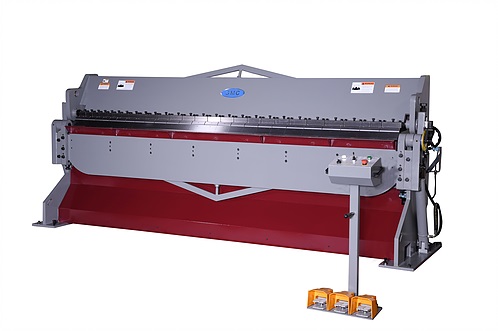

GMC Machinery 12’ x 14 Gauge Heavy Duty Box & Pan Brake GMC-HBB-1214
$28,502.50Current price is: $28,502.50.
- Max Bending Length: 12’
- Bend Angle Degree: 135°
- Max Box Depth: 6”
- Main Motor: 10 HP
GMC Machinery 12’ x 14 Gauge Heavy Duty Box & Pan Brake GMC-HBB-1214 is a GMC Machinery product in the Sheet Metal Brakes collection.
Product Details
- Max Bending Length: 12’
- Bend Angle Degree: 135°
- Max Box Depth: 6”
- Main Motor: 10 HP
- Features
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment (front and back)
- reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- A wide guide body ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- Standard Equipment
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
- Specifications
- Capacity Mild Steel: 14 Ga
- Capacity Stainless Steel: 16 Ga
- Large Beam Opening: 3”
- Oil Tank: 50 Gal
- Machine Weight: 8,950 lbs
- Overall Dimensions: 180 x 46 x 69
Specifications
- Manufacturer: GMC Machinery
- SKU: GMC-HBB-1214
- Shipping Method: LTL Freight
- Weight: 8,950 lb
- Dimensions: 180 × 46 × 69 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 8950.0 lbs |
|---|---|
| Dimensions | 180.0 × 46.0 × 69.0 in |
| Brand | GMC Machinery |
