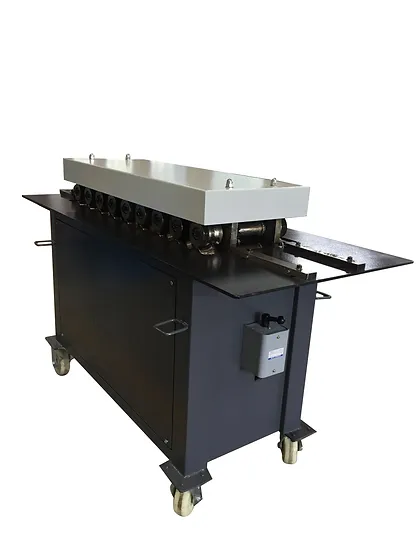

GMC Machinery 24Ga to 18Ga 220V Three Phase Pittsburgh Type Hemming Forming Machine PL-18HEM
$7,702.50Current price is: $7,702.50.
- Capacity (Galvanized Sheet): 24Ga to 18Ga
- Feeding Speed: 21 fpm
- 4HP Heavy Duty AC main motor
- Forms flattened hem, open hem, teardrop hem, and rope hem
GMC Machinery 24Ga to 18Ga 220V Three Phase Pittsburgh Type Hemming Forming Machine PL-18HEM is a GMC Machinery product in the Metal Forming & Shaping collection.
Product Details
- Capacity (Galvanized Sheet): 24Ga to 18Ga
- Feeding Speed: 21 fpm
- 4HP Heavy Duty AC main motor
- Forms flattened hem, open hem, teardrop hem, and rope hem
- Description
- Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.
- Features
- ISO 9001 Certified
- Heavy welded all steel construction for maximum rigidity
- One side forms flattened hem and open hem
- One side forms teardrop hem and rope hem
- Standard Equipment
- One set of 9 pair rolls form flattened hem and open hem
- One set of 9 pair roll form teardrop hem and rope hem
- Specifications
- Capacities (Galvanized sheet) Flattened Hem: 24Ga to 18Ga Open Hem: 24Ga to 18Ga Teardrop Hem: 24Ga to 18Ga Rope Hem: 24Ga to 18Ga Pittsburgh lock, 5/16” width Double Seam: 24Ga to 18Ga Drive Cleat: 24Ga to 18Ga
- Flattened Hem: 24Ga to 18Ga
- Open Hem: 24Ga to 18Ga
- Teardrop Hem: 24Ga to 18Ga
- Rope Hem: 24Ga to 18Ga
- Pittsburgh lock, 5/16” width
- Double Seam: 24Ga to 18Ga
- Drive Cleat: 24Ga to 18Ga
- Station Numbers: 9 stations with 9 pairs of rolls on each side
- Main motor: 220V Three Phase 4HP 15Amp
- Machine Dims: 60” x 25” x 40”
- Approx Weight: 685 lbs
- Optional Add-Ons
- Set of rolls for Pittsburgh lock & double seam, 2 in 1
- Drive cleat roll #DCR-18HEM
Specifications
- Manufacturer: GMC Machinery
- SKU: PL-18HEM
- Shipping Method: LTL Freight
- Weight: 750 lb
- Dimensions: 62 × 27 × 43 in
- Country of Origin: Taiwan
| Weight | 750.0 lbs |
|---|---|
| Dimensions | 62.0 × 27.0 × 43.0 in |
| Brand | GMC Machinery |
