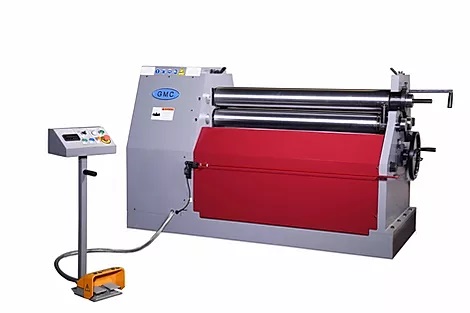

GMC Machinery 4’ x ¼” Initial Pinch 3 HP Hydraulic Plate Bending Roll HBR-0425
$12,902.50Current price is: $12,902.50.
- Main Motor: 3 HP
- Roll Capacity Mild Steel: 4’ x ¼”
- Roll Capacity Stainless Steel: 4’ x 3/16”
- Min Roll Dia.: 8-1/4”
GMC Machinery 4’ x ¼” Initial Pinch 3 HP Hydraulic Plate Bending Roll HBR-0425 is a GMC Machinery product in the Roll Benders collection.
Product Details
- Main Motor: 3 HP
- Roll Capacity Mild Steel: 4’ x ¼”
- Roll Capacity Stainless Steel: 4’ x 3/16”
- Min Roll Dia.: 8-1/4”
- Features
- ISO 9001 certified
- Taiwan Machines
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high-grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V , 3 phase)
- Standard Equipment
- LED indicator for bending roll position
- Removable safety foot pedal and tool box
- Specifications
- Rolls Length: 4’ 3”
- Rolls Dia.: 5-7/8”
- Pre-Bend: 0.16”
- Roll Speed: 5 RPM
- Rolls Opening: 2-1/2”
- Oil Tank Cap: 25 Gal
- Mach Weight: 4,650 lbs
- Dimensions: 87 x 36 x 53
Specifications
- Manufacturer: GMC Machinery
- SKU: HBR-0425
- Shipping Method: LTL Freight
- Weight: 4,650 lb
- Dimensions: 87 × 36 × 53 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 4650.0 lbs |
|---|---|
| Dimensions | 87.0 × 36.0 × 53.0 in |
| Brand | GMC Machinery |
