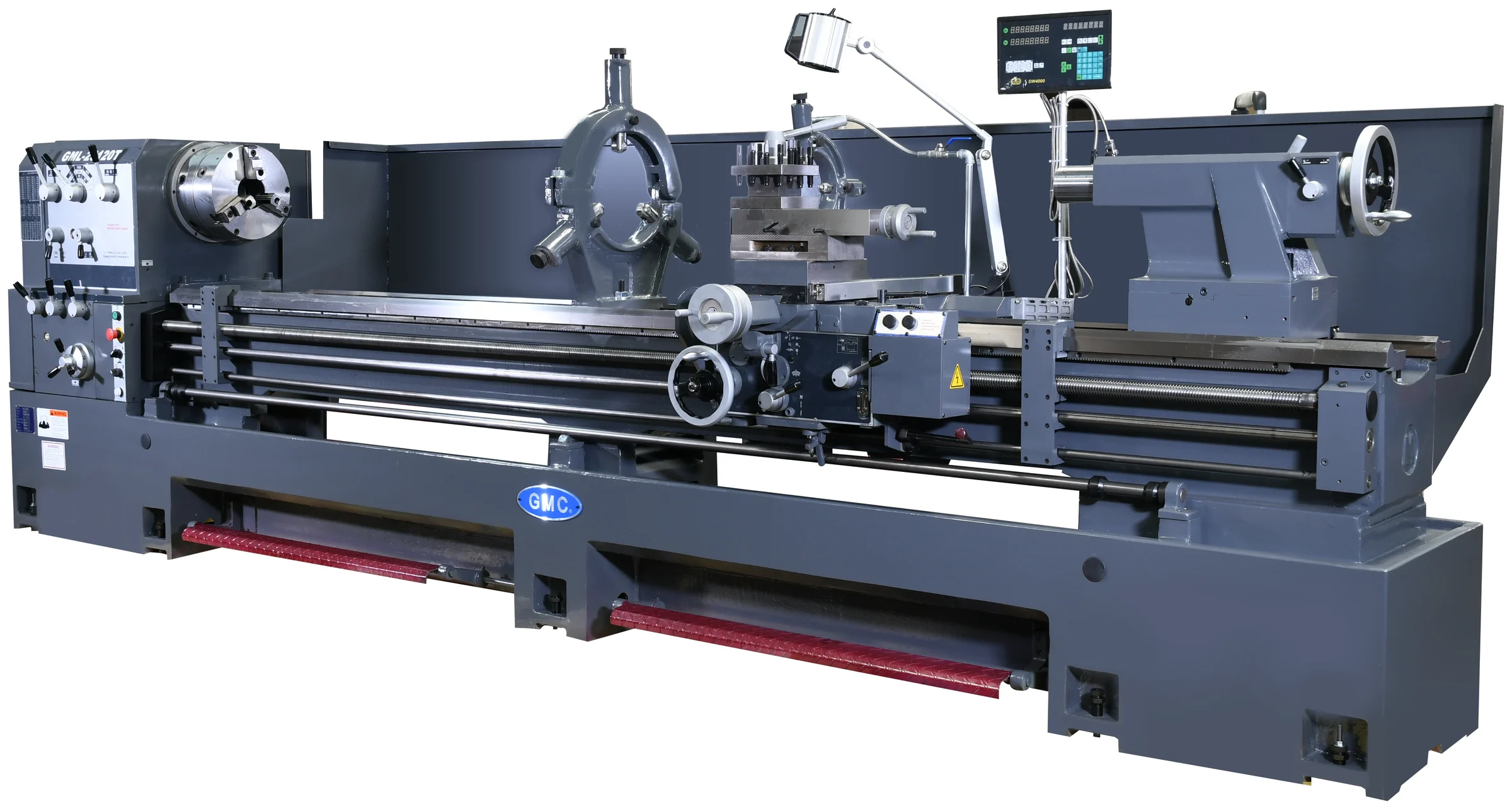

GMC Machinery 440V Three Phase 26” x 160” 12-Speed Heavy-Duty Gap Bed Lathe with DRO GML-26160T
$38,252.50Current price is: $38,252.50.
- Spindle bore: 4¾”, D1-11
- Max swing in gap: 35”
- Taper of spindle center: MT7
- Spindle speeds: 10-1,000 rpm, 12 steps
GMC Machinery 440V Three Phase 26” x 160” 12-Speed Heavy-Duty Gap Bed Lathe with DRO GML-26160T is a GMC Machinery product in the Lathes collection.
Product Details
- Spindle bore: 4¾”, D1-11
- Max swing in gap: 35”
- Taper of spindle center: MT7
- Spindle speeds: 10-1,000 rpm, 12 steps
- Features
- Made in Taiwan by top manufacturer with very high level of quality
- One piece solid casting base, Meehanite high performance cast iron
- Machine bed is made of Meehanite casting – high performance cast iron
- ISO 9001 certified
- Large spindle bore 4¾”
- Heavy duty spindle D1-11
- Heavy duty main motor 15HP
- 12 spindle speeds from 10-1,000 rpm
- 2-speed tailstock
- 54 kinds of inch and metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened, and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Standard Equipment
- Free CARMAR DRO installed
- Rapid traverse on carriage on longitudinal way
- Automatic kick-out longitudinal carriage stop system
- 12” 3-jaw chuck with top reversible jaws, direct mount
- 20” face plate
- 12” steady rest with roller jaws
- 5” follow rest with roller jaws
- Removable gap
- 4-way tools post
- Foot brake
- Halogen work light and coolant system
- Splash guard on carriage
- Dead center
- Thread chasing dial
- Reducing sleeve MT7/MT5 for spindle
- Toolbox and leveling pads
- Specifications
- Max swing over bed: 26”
- Max length of workpiece: 160”
- Max swing over cross slide: 17¼”
- Width of bed: 15¾”
- Effective length in gap to spindle: 9”
- Effective length in gap to chuck jaws: 4½”
- Longitudinal feeds: 0.002-0.032 IPR, 35 kinds
- Cross feeds: 0.001-0.0094 IPR, 35 kinds

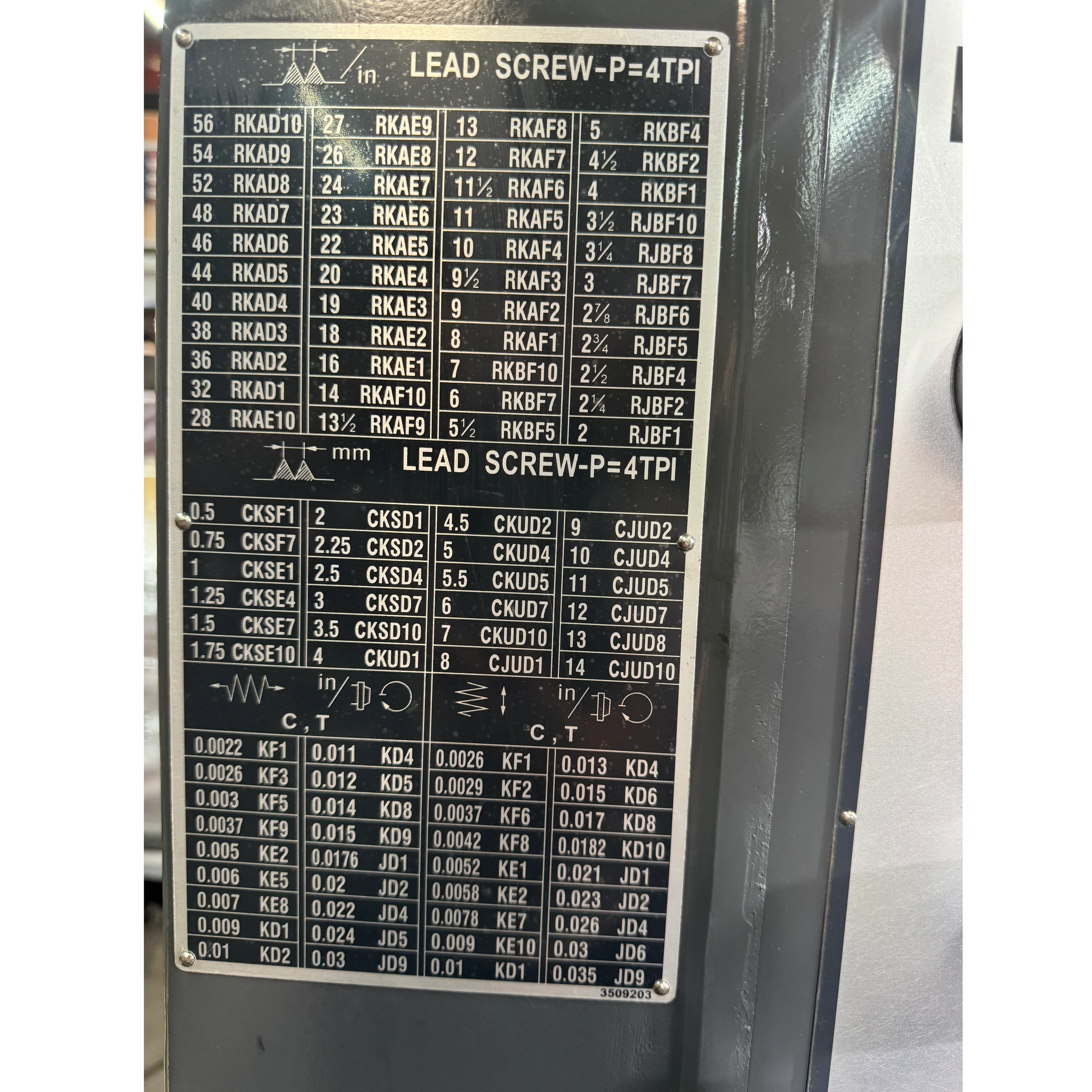

- Inch threads: 2-56 TPI, 44 kinds
- Metric threads: 0.5-14mm, 24 kinds
- Max travel of top slide: 8”
- Max travel of cross slide: 13½”
- Leadscrew length X TPI: 1½” x 4 TPI
- Diameter of tailstock quill: 3½”
- Max travel of tailstock quill: 7½”
- Taper of tailstock quill center: MT5
- Machine oil: #30 weight machine oil, 8 gallon
- Rapid traverse motor: 440V Three Phase 1HP
- Coolant pump motor: 440V Three Phase 1/8HP, 3 gal coolant fluid
- Electrical Requirements: 440V Three Phase 15HP 30A
- Machine Dims: 219” x 50” x 73”
- Approx Weight: 10,810 lbs
- Optional Add-Ons
- ALORIS type QC tool post set, 6 pcs
- Live Center
- Taper attachment
- Chuck
- **This model does not work with a phase converter**
Specifications
- Manufacturer: GMC Machinery
- SKU: GML-26160T(440V)
- Shipping Method: Flatbed
- Weight: 11,000 lb
- Dimensions: 232 × 44 × 77 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 11000.0 lbs |
|---|---|
| Dimensions | 232.0 × 44.0 × 77.0 in |
| Brand | GMC Machinery |
