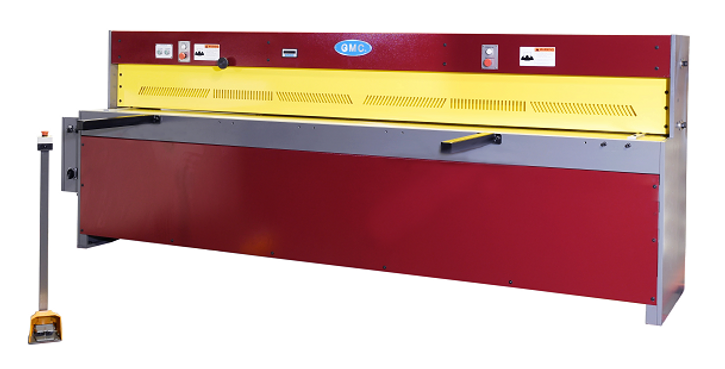

GMC Machinery 6’ x 10 Gauge 440V Electric Power Shear with Manual Back Gauge EPS-0610M
$9,975.00Current price is: $9,975.00.
- Main Motor: 7-1/2 HP, 440V
- Cutting capacity for Mild steel: 6’ x 10 Ga
- Cutting capacity for Stainless steel: 6’ x 14 Ga
- 26” back gauge
GMC Machinery 6’ x 10 Gauge 440V Electric Power Shear with Manual Back Gauge EPS-0610M is a GMC Machinery product in the Shears collection.
Product Details
- Main Motor: 7-1/2 HP, 440V
- Cutting capacity for Mild steel: 6’ x 10 Ga
- Cutting capacity for Stainless steel: 6’ x 14 Ga
- 26” back gauge
- Standard Features
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- Included Equipment
- 26” manual back gauge with one side operated handwheel.
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
- Specifications
- Cutting Capacity: Mild Steel: 6' x 10 Ga. Stainless Steel: 6' x 14 Ga.
- Mild Steel: 6' x 10 Ga.
- Stainless Steel: 6' x 14 Ga.
- Blade Length: 6’6"
- Strokes per minute: 28
- Worktable height: 32"
- Front support arm: 36"
- Back gauge: 26"
- Blade Rake Angle: 2.5 Degree
- Machine weight: 5,650 LBS
- Machine dimensions: 100" x 43" x 68"
- *This model does not work with a phase converter*
- Options
- Safety fence for enclosure of the back side of the machine
Specifications
- Manufacturer: GMC Machinery
- SKU: EPS-0610M (440V)
- Shipping Method: LTL Freight
- Weight: 5,650 lb
- Dimensions: 100 × 43 × 68 in
- Warranty: 1 Year (Parts)
| Weight | 5650.0 lbs |
|---|---|
| Dimensions | 100.0 × 43.0 × 68.0 in |
| Brand | GMC Machinery |
