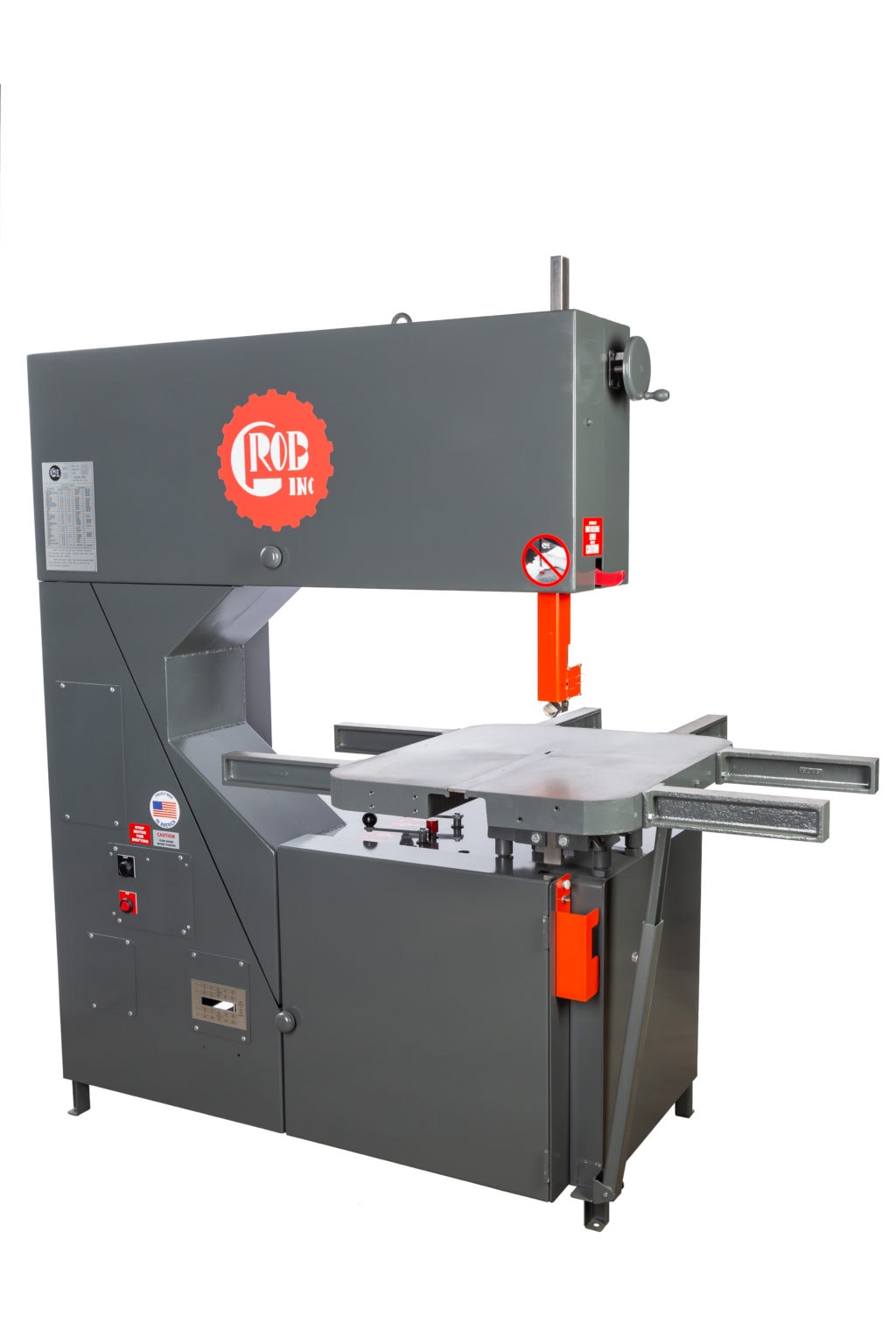

Grob 36″ Variable Speed 230V Three Phase Vertical Band Saw 4V-36
$15,583.75Current price is: $15,583.75.
- 36” Throat Depth
- 12” Work Height Saw Blades
- 4 Speed Gear Box
- TEFCBB Double Shaft Motor
Grob 36″ Variable Speed 230V Three Phase Vertical Band Saw 4V-36 is a Grob Inc. product in the Band Saws collection.
Product Details
- 36” Throat Depth
- 12” Work Height Saw Blades
- 4 Speed Gear Box
- TEFCBB Double Shaft Motor
- Description
- The 4V-36 has an increased throat depth for larger applications. Heavy duty Grob Inc. 4 speed transmission with all cold rolled gears and splines. Infinitely variable speed range for complete control of your sawing needs. Band saw blade welder available for making any length blades from economical coil stock. Frequency drive with dynamic braking available.
- Specifications
- 3 h.p. 230 Volt Motor (Totally Enclosed Fan Cooled Ball Bearing Double Shaft Motor)
- Infinitely Variable Speed 40-5000 F.P.M.
- Speed Indicator
- Balanced Cast Aluminum Pulleys, Ball Bearing Mounted, Oil Resistant Rubber Facing
- Heavy Cast Iron Table Tilts – 45° down right, and 10° down left
- 12″ Long Table Extensions
- 3/8 – 1/2″ Single Piece Hard Aluminum-Bronze Saw Guides
- Optional Equipment
- Air Hydraulic Feed
- Butt Welder
- Air Chip Blower
- Rip Fence
- Miter Gauge
- Work Light
- Flood or Mist Coolant
- Magnifying Glass
- Circular Cutting Attachment
- Frequency Drive with Dynamic Breaking
Specifications
- Manufacturer: Grob Inc.
- SKU: 4V-36 (230V)
- Shipping Method: LTL Freight
- Weight: 1,890 lb
- Dimensions: 90 × 48 × 80 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 1890.0 lbs |
|---|---|
| Dimensions | 90.0 × 48.0 × 80.0 in |
| Brand | Grob Inc. |
