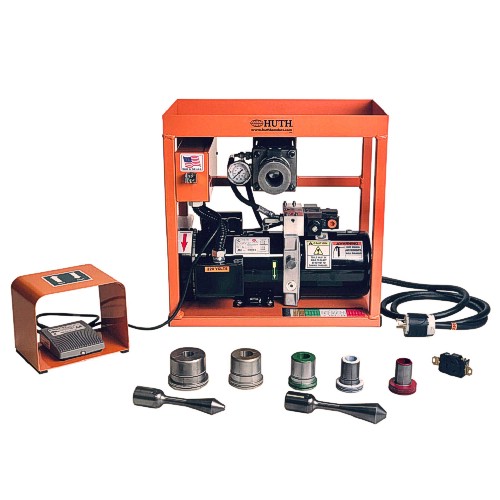

Huth 220V Single Phase 2HP Foot Pedal Activation Portable Benchtop Tube Expander 1690

Huth 220V Single Phase 2HP Foot Pedal Activation Portable Benchtop Tube Expander 1690 is a Huth product in the Tube & Pipe Benders collection.

Product Details

• Motor: 2HP 220V Single Phase
• 25,000 lbs of expanding power
• Standard Capacity: 1 ½” – 3 ½”
• Foot pedal activation for heads-free operation
• Description
• The compact design of the 1690 allows it to fit on your bench-top while the foot pedal gives you hands-free operation. Quickly and easily size muffler end tubes and pipes. The 1690 comes with the tooling shown above for expanding capacity from 1 ½” to 3 ½”. Additional tooling gives you expanding capacity from 1” to 5 ½”. The 1690 also allows you to create custom brackets with help from Huth’s Rod Bracket Bender as an additional option.
• Equipped with a 2 horsepower motor this machine has 25,000 lbs of expanding power. The 1690 comes with a built-in tooling tray to keep everything at your fingertips and is fashioned with Huth’s Accu-Sizer system for making precise expansions every time.
• Features
• Foot pedal activation
• Motor runs on both 50Hz and 60Hz
• Capacity from 1” – 5 ½” with additional tooling
• Features Huth’s Accu-Sizer system for quick, precise expanding
• Built-in tool tray
• Compact design: 24”L x 20”W x 24”H
• 10ft power cord with male and female receptacles
• Includes 572 and 573 Solid Piece Arbors
• Includes 472, 474, 475, 476, and 477 Segment Sets
• Options
• Custom tooling available
• Huth’s Rod Bracket Bender for creating custom brackets

Specifications

• Manufacturer: Huth
• SKU: 1690 (220V)
• Shipping Method: LTL Freight
• Weight: 190 lb
• Dimensions: 34 × 34 × 49 in
