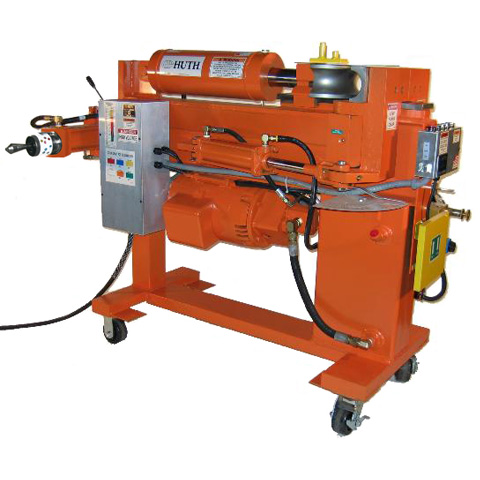

Huth 220V Single Phase 7.5HP Manual Knee Control Heavy Duty Horizontal Pipe Bender with Swager/Expander 2600HD
$8,682.50Current price is: $8,682.50.
- Motor: 7.5HP 220V Single Phase
- 85,000 lbs of bending force
- Heavy-duty swager/expander
- Automatic Depth-of-Bend selector
Huth 220V Single Phase 7.5HP Manual Knee Control Heavy Duty Horizontal Pipe Bender with Swager/Expander 2600HD is a Huth product in the Tube & Pipe Benders collection.
Product Details
- Motor: 7.5HP 220V Single Phase
- 85,000 lbs of bending force
- Heavy-duty swager/expander
- Automatic Depth-of-Bend selector
- Description
- The 2600 is designed for production work and bending heavier materials up to 3” OD. Meeting the standards set by our other models for precise bending and end finishing.
- The 2600 provides 85,000 lbs of tube bending force and comes standard with a 7.5 horse-power motor. A 3” tube bent to 90-degree in the automatic mode can be completed in 16 seconds. The ergonomically designed knee control allows the operator hands-free control for quick tube location and securing of the tube. It is also invaluable for prototyping.
- The smart automatic mode features an adjustable return-to-home position control. This unique, time saving feature increases efficiency by assuring fast and easy transitions between multiple bends. The automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth-of-bend plate. This feature assures accuracy and repeatability.
- The swager/expander gives you complete end-finishing capabilities. The swager end accommodates 1” to 3” tubing. The expander end allows for expansions from 1” to 5½”. With Huth’s Accu-Sizer bulls-eye expanding system, you can dial in precise expansions every time.
- Features
- Reinforced bending gates and frame
- Large volume reservoir
- Elevated center of bend
- 7.5HP 60Hz Motor
- Push button controls
- Easy-to-use knee control for forward/reverse
- Bending die retainer
- Rugged I-Beam Construction
- Exclusive safety guard package
- Front swivel caster w/o brakes
- Options
- High voltage options available
- Tooling available for additional purchase
- Control Wrinkle Die now available for this model to bend 304 Stainless Steel
Specifications
- Manufacturer: Huth
- SKU: 2600HD (1PH)
- Shipping Method: LTL Freight
- Weight: 1,345 lb
- Dimensions: 77 × 33 × 52 in
| Weight | 1345.0 lbs |
|---|---|
| Dimensions | 77.0 × 33.0 × 52.0 in |
| Brand | Huth |
