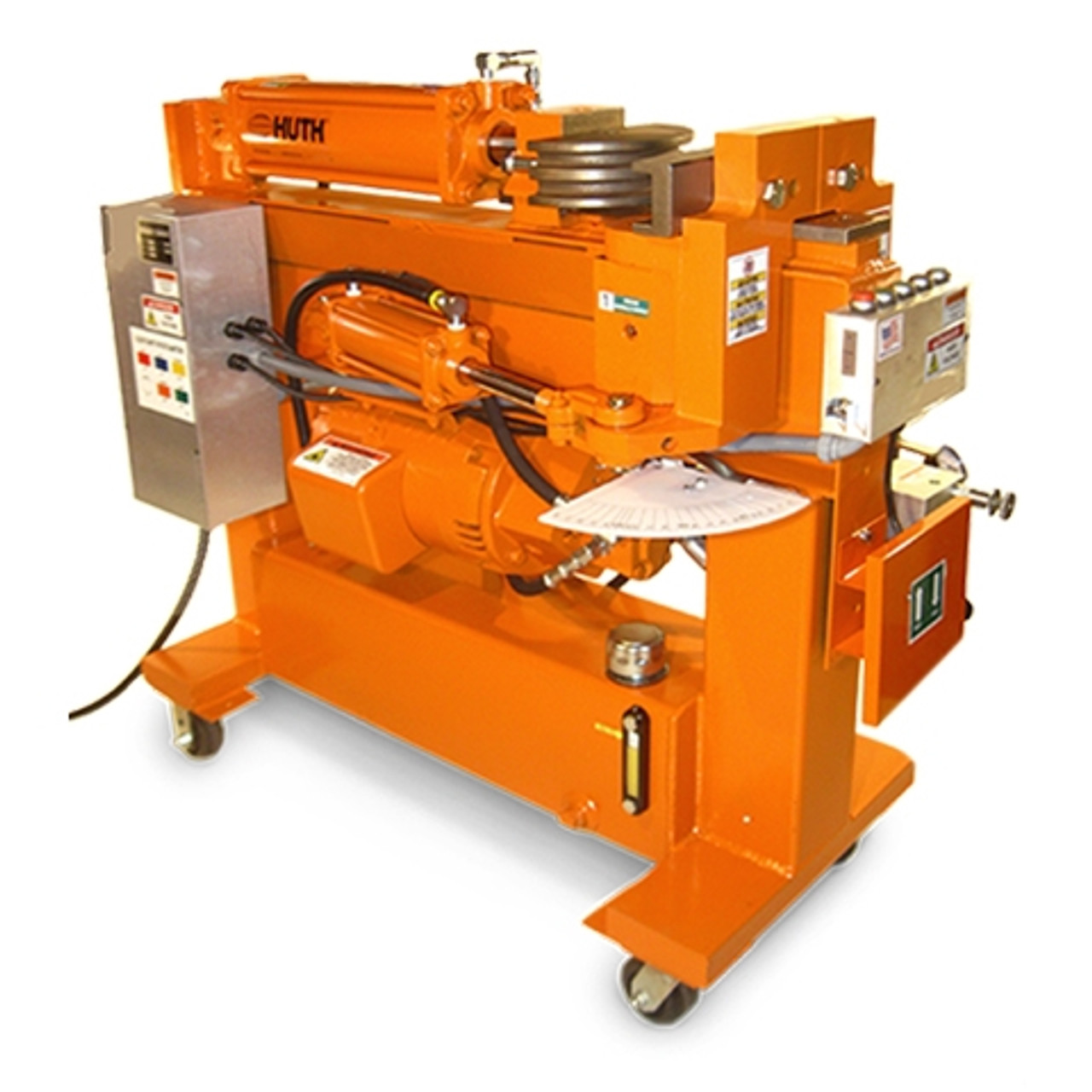

Huth 220V Three Phase 7.5HP Manual Knee Control Fabrication Bender with 5in Cylinder 2650
$13,396.83Current price is: $13,396.83.
- Motor: 7.5HP 220V Three Phase
- 5 inch cylinder
- 58,000 lbs of bending force
- Extra large 10 gallon oil tank
Huth 220V Three Phase 7.5HP Manual Knee Control Fabrication Bender with 5in Cylinder 2650 is a Huth product in the Roll Benders collection.
Product Details
- Motor: 7.5HP 220V Three Phase
- 5 inch cylinder
- 58,000 lbs of bending force
- Extra large 10 gallon oil tank
- Description
- The Model 2650 Fabrication Bender is great for all kinds of frame fabrication: trailers, fencing/gates, pole barns, carports, sporting equipment, farm structures (feed rings, panels, saddle racks), boat frame-lifts, and industrial racking just to name a few!
- This machine comes standard with a 7.5 horsepower motor and a 5-inch cylinder with 58,000 lbs of bending force. A 3” tube bend to 90-degree in the automatic mode can be completed in 16 seconds. The ergonomically designed knee control allows the operator hands-free control for quick tube location and securing of the tube. It is also invaluable for prototyping.
- The smart automatic mode features an adjustable return-to-home position control. This unique, time-saving feature increases efficiency by assuring fast and easy transitions between multiple bends. The automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth-of-bend plate. This feature assures accuracy and repeatability.
- Features
- Steel I-Beam construction reinforced with heavy steel framing
- Ergonomic: bending plane height 42”
- High efficiency, quiet helical pump
- Extra large oil tank (10 gal) for continuous and multi-shift usage
- 7.5 horsepower motor, heavy duty gates and brushings
- Small footprint: 24” wide, 54” long
- Knee pedal activation for set up
- Auto depth of bend selector
- Bends round, square, rectangular tubing and pipe
- Handles schedule/thick wall pipe with ease
- Options
- Custom tooling available Tooling available for these materials: square, flat stock, common pipe and tube
- Tooling available for these materials: square, flat stock, common pipe and tube
- Optional built-in end-forming kit
Specifications
- Manufacturer: Huth
- SKU: 2650 (3PH)
- Shipping Method: LTL Freight
- Weight: 1,290 lb
- Dimensions: 77 × 33 × 52 in
| Weight | 1290.0 lbs |
|---|---|
| Dimensions | 77.0 × 33.0 × 52.0 in |
| Brand | Huth |
