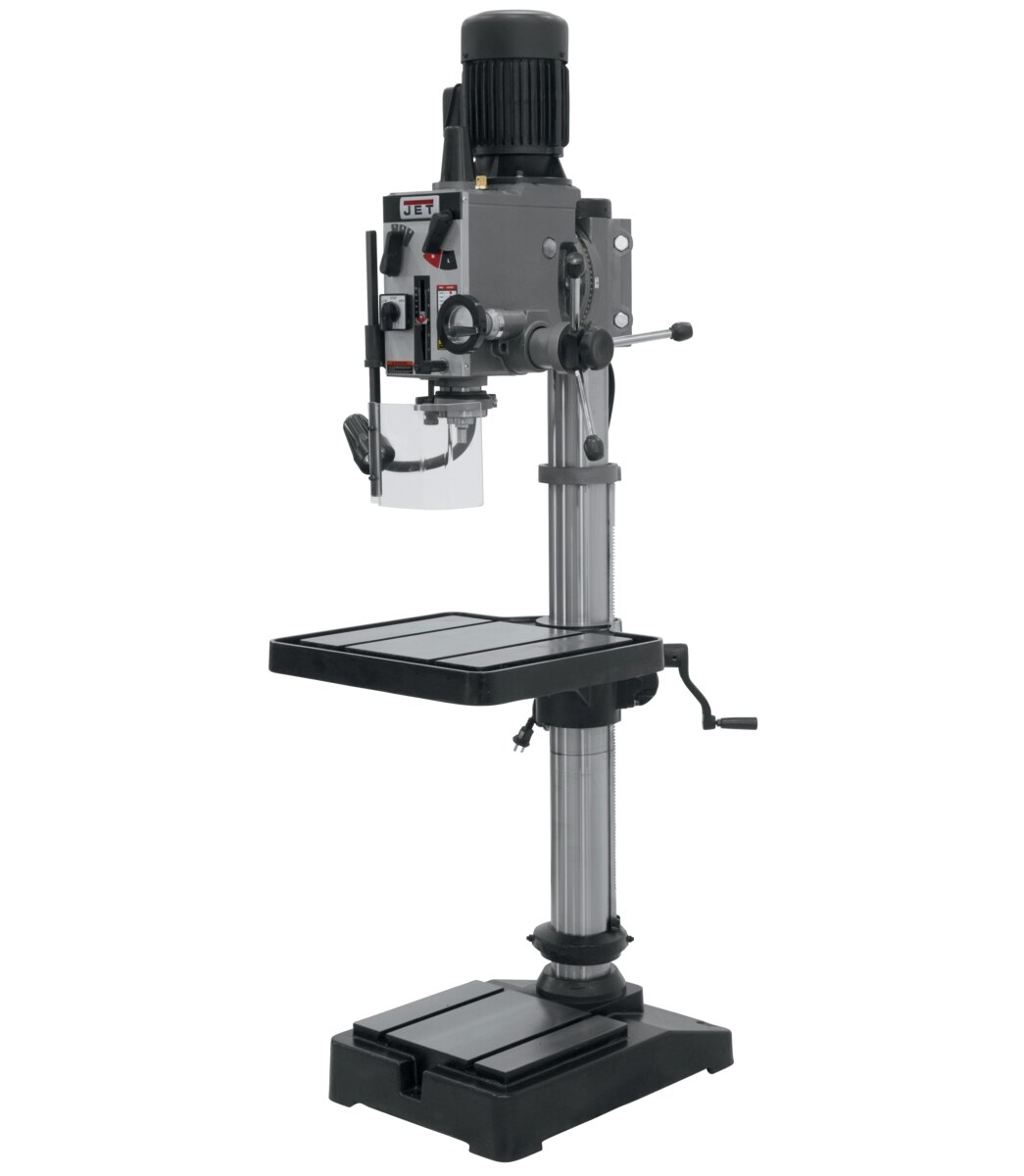

Jet GHD-20, 20″ Gear Head Drill Press 230V, 3Ph 354020

Jet GHD-20, 20″ Gear Head Drill Press 230V, 3Ph 354020 is a JET product in the Drill Presses collection.

Product Details

• Easily accessible table raiser
• Head tilts left or right
• Large production table and T-slotted base
• Three power downfeed rates
• JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
• Specification: Value
• Drills to Center of Circle (In.): 20
• Spindle Travel (In.): 5
• Style (Type): Geared Head
• Drilling Capacity Mild Steel (In.): 1-1/4
• Drilling Capacity Cast Iron (In.): 1-1/2
• Distance Column to Spindle (In.): 10
• Table Size (L x W) (In.): 21-3/4 x 19-1/2
• Spindle Distance to Base (In.): 44-15/16
• Weight (Lbs.): 660
• Spindle Distance to Table (Max.) (In.): 30-1/2
• Spindle Taper (In. x TPI): MT-3
• Range of Spindle Speeds (RPM): 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
• Table Travel (In.): 25-1/2
• Quill Diameter (In.): 3
• Quill Feed: Manual
• T-Slot Centers (In.): 9
• Work Table Weight Capacity (Lbs.): 275
• Base Work Table (In.): 15-1/4 x 13
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 26 x 18
• Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 32 x 24 x 71
• Weight: 698.0000
• Height: 0.0000
• Length: 0.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-354020
• UPC: 662755803840
• Shipping Method: LTL Freight
• Weight: 698 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
