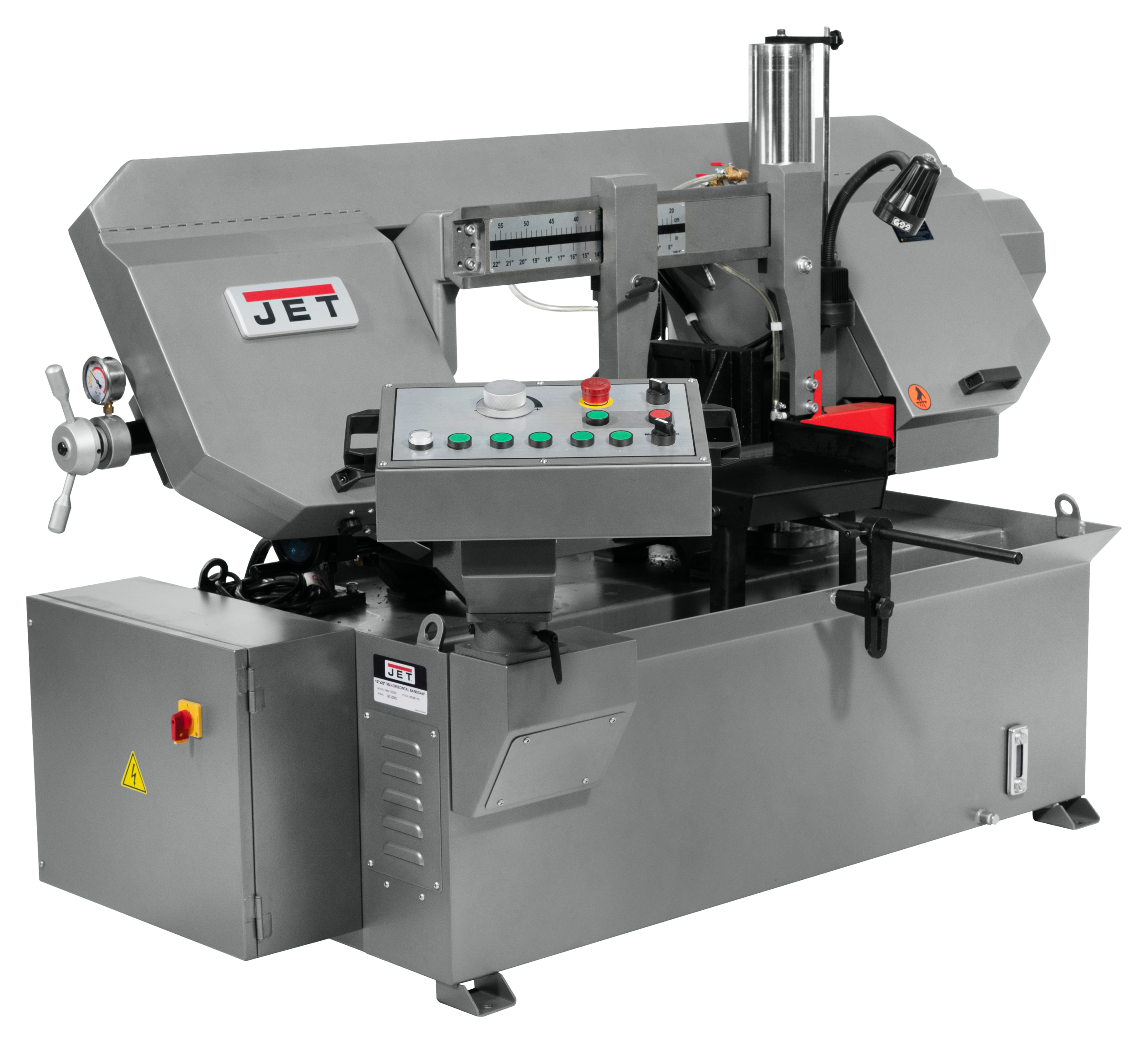

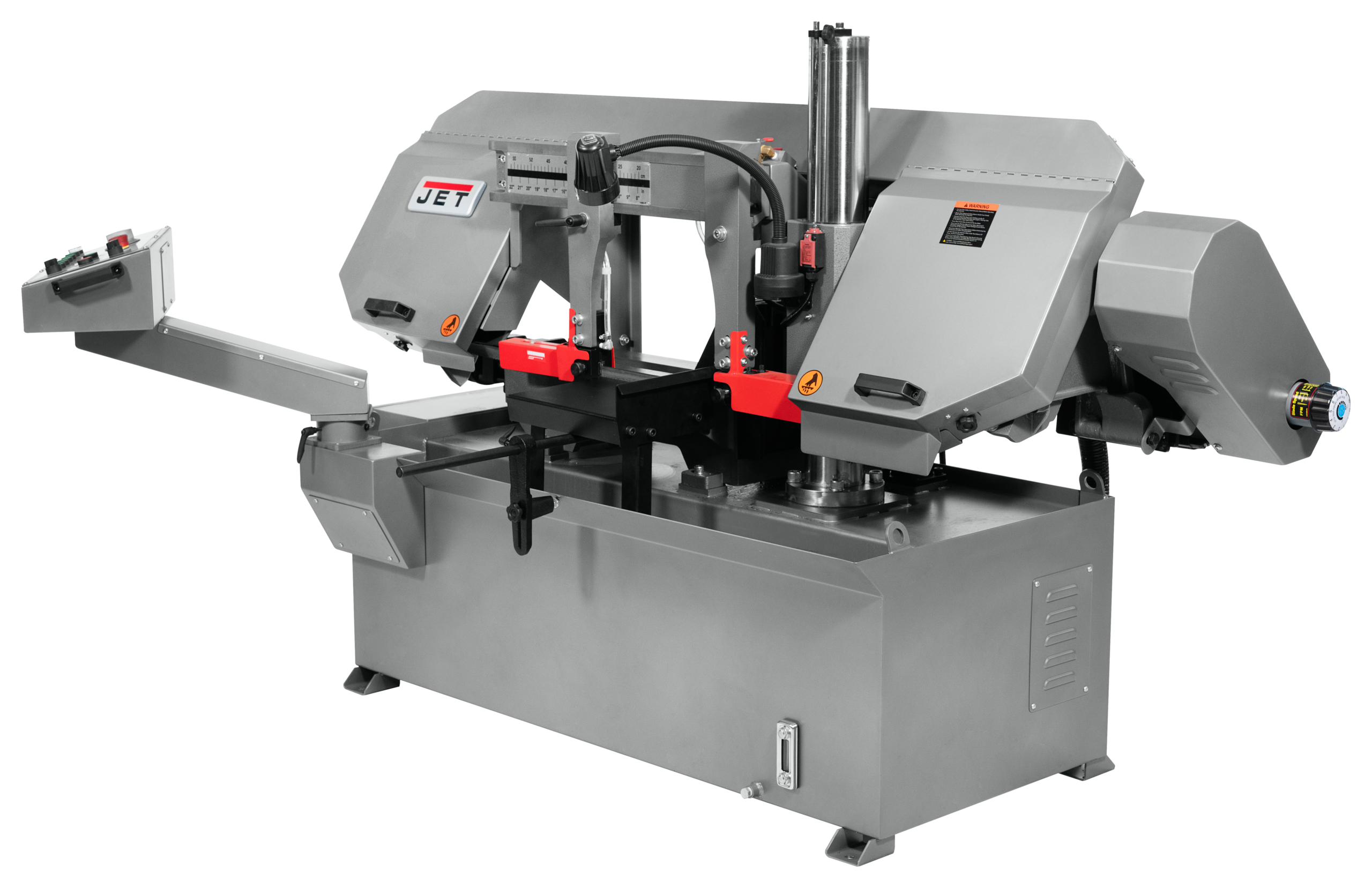

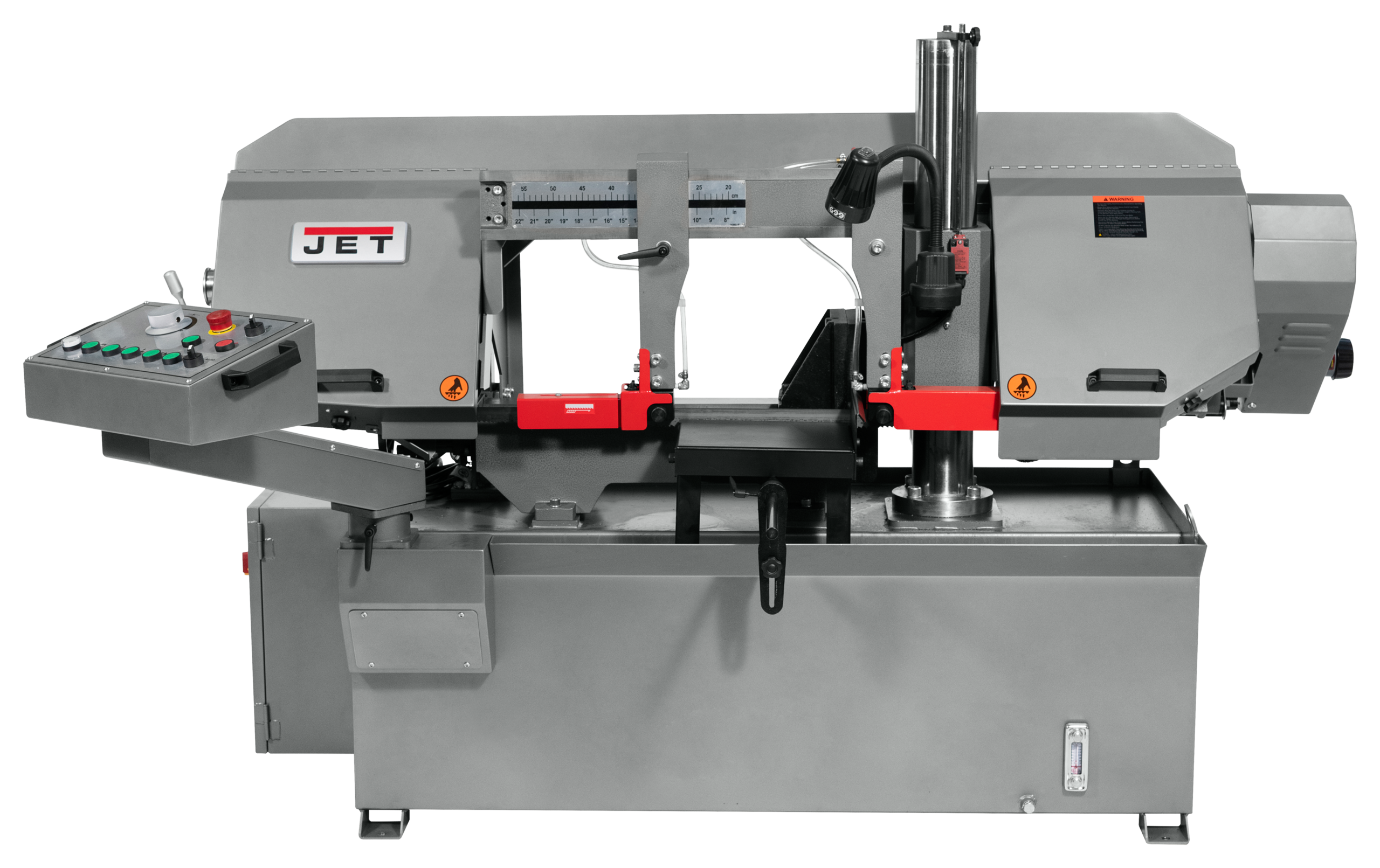

Jet HBS1220DC, 12×20″ Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase 413400
$13,967.02Current price is: $13,967.02.
- Heavy duty construction reduces vibration and deflection
- Coolant is distributed through the blade guides through an integrated coolant system
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
Jet HBS1220DC, 12×20″ Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase 413400 is a JET product in the Band Saws collection.
Product Details
- Heavy duty construction reduces vibration and deflection
- Coolant is distributed through the blade guides through an integrated coolant system
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Motor designed for continuous operation
- JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
- Powerful gearbox for long life
- Two column design for more productive cutting
- Specification: Value
- Throat Depth (In.): 12 x 12
- Blade Speeds (SFPM): 86,157,228,330
- Band Saw Size/Wheel Diameter (In.): 16
- Cutting Capacity Width (In.): 20
- Cutting Capacity Height (In.): 12
- Round at 90 Degrees (In.): 12
- Blade Length (In.): 155-1/2
- Blade Speed (SFPM): 95 – 295
- Rectangle at 90 Degrees (In.): 12 x 20
- Weight (Lbs.): 1420
- Blade Wheel Diameter (In.): 16
- Blade Width (In.): 0.043
- Electrics: 3HP, 230/460V, 3Ph
- Bed Height (In.): 27
- Motor Power (HP): 3
- Square at 90 Degrees (In.): 12
- Motor (HP): 3 HP, 230/460V, 1Ph
- Shipping Weight (Lbs.): 1628
- Coolant Pump Motor: 1/8HP, 230/4660V, 3Ph
- Motor Phase: 3
- Motor Voltage (V.): 230/460
- Overall Dimensions (L x W x H) (In.): 81 x 42-1/2 x 54-1/2
- Prewired Voltage (V.): 230
- Drive: Mechanical Variable Speed
- Net Weight (Lbs.): 1420
- Gross Weight (Lbs): 1628
- Height: 54.5000
- Length: 98.0000
- Width: 14.5000
- Weight: 1740.0000
Specifications
- Manufacturer: JET
- SKU: JT9-413400
- UPC: 731325868647
- Shipping Method: LTL Freight
- Weight: 1,740 lb
- Dimensions: 98 × 14.5 × 54.5 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 1740.0 lbs |
|---|---|
| Dimensions | 98.0 × 14.5 × 54.5 in |
| Brand | JET |
