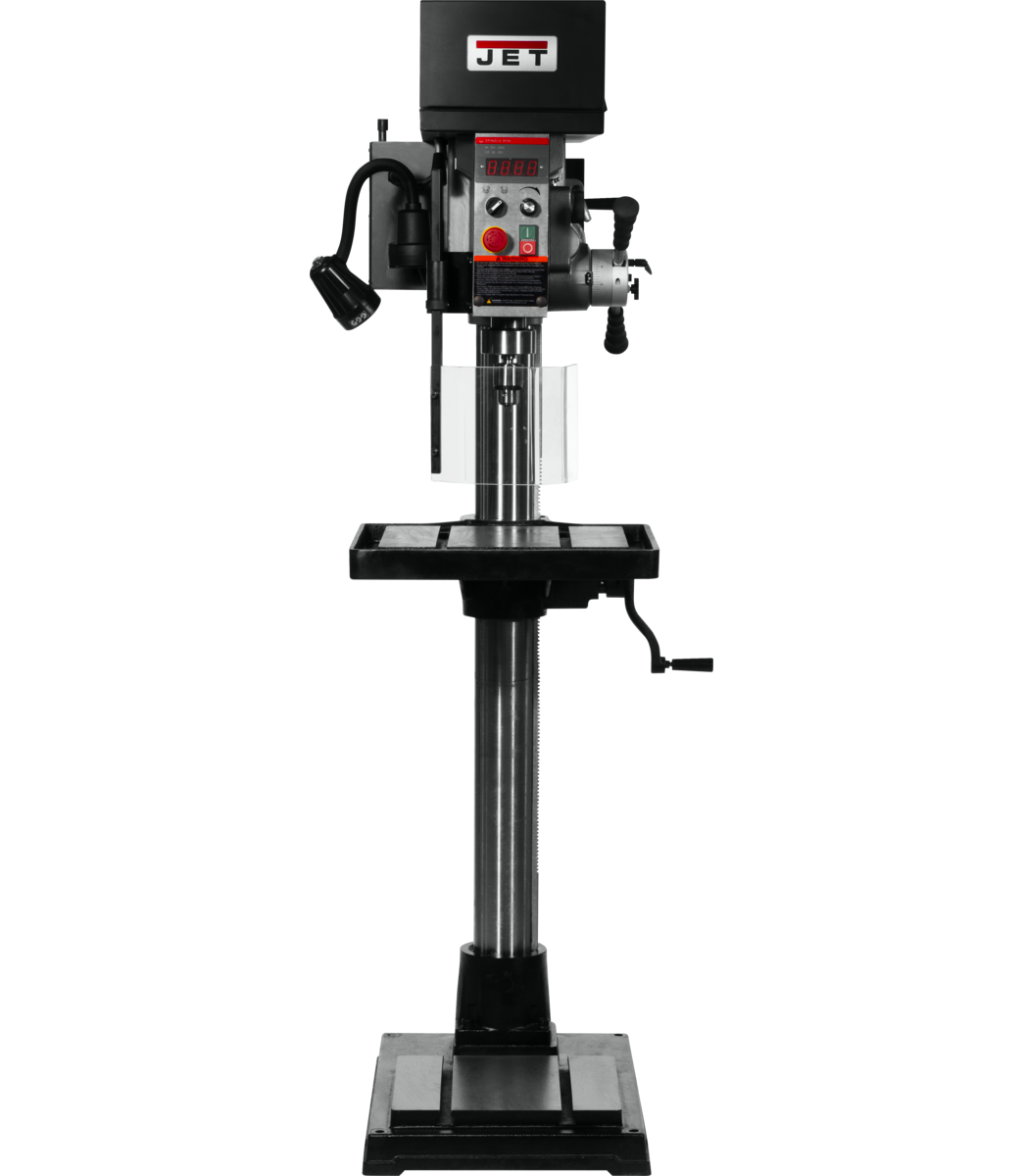

Jet JDPE-20EVSC-PDF 1-1/4″ Drilling Capacity 2HP 115V 1Ph Electronic Variable Speed Drill with Clutch Speed Change system and Power Downfeed 354251

Jet JDPE-20EVSC-PDF 1-1/4″ Drilling Capacity 2HP 115V 1Ph Electronic Variable Speed Drill with Clutch Speed Change system and Power Downfeed 354251 is a JET product in the Drill Presses collection.

Product Details

• Casted head for more accuracy and rigidity
• Emergency stop allows for immediate shut off
• Forward and reverse switch for instant tapping mode
• Front Mounted LED Spindle RPM Readout
• Heavy casted column prevents failures prolonging the life of the machine
• The 20'' JET JDPE-20EVS-PDF Drill Press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support. Engineered to maximize output, the 20’’ EVS Drill Press includes a three-speed power down feed for heavy drilling applications and capable of running various spindle speeds from 50 to 2000 RPMs. CSA/CUS Certified.
• LED machine lamp delivers extra light for more precise drilling

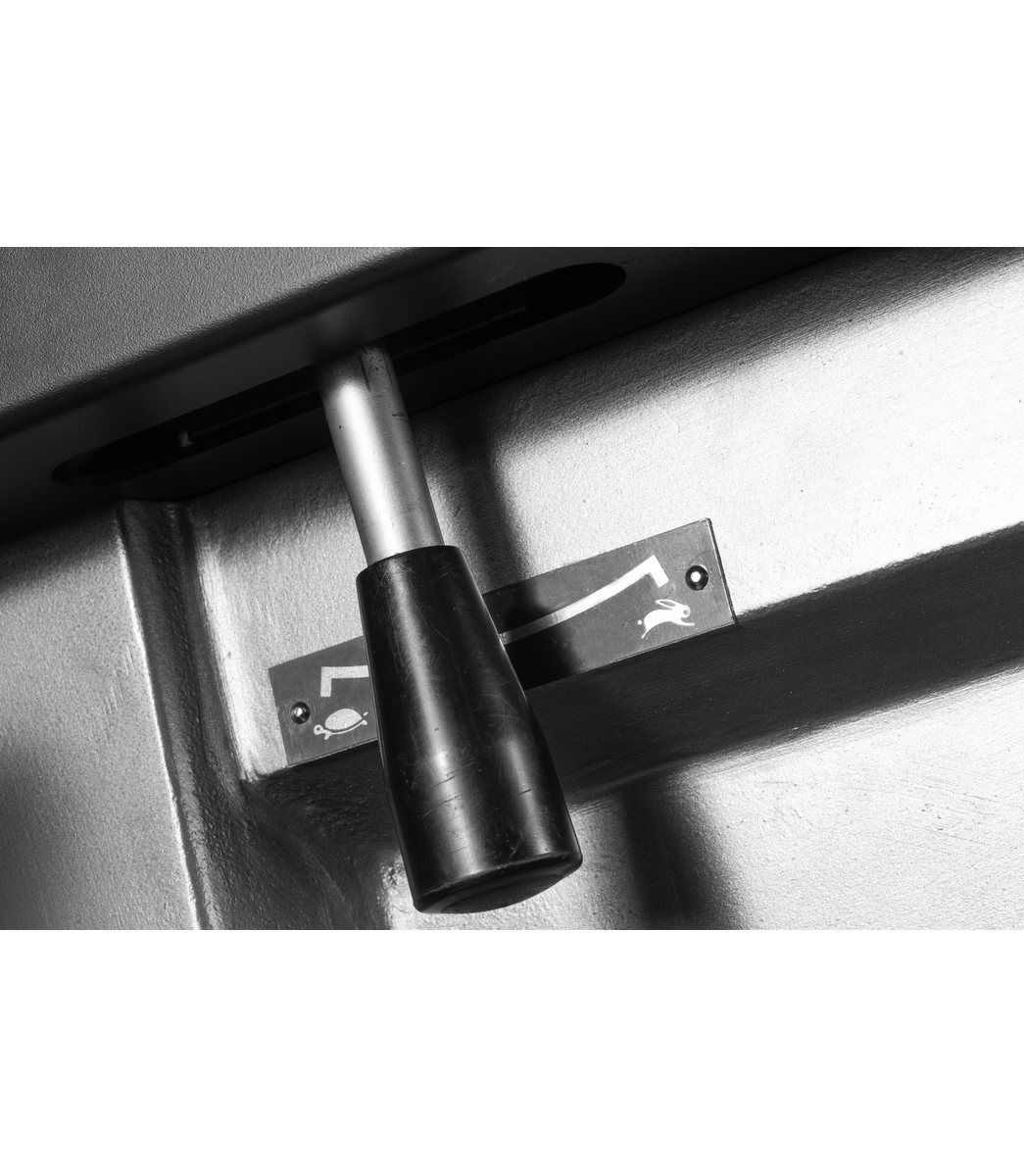

• Speed changes using a clutch system

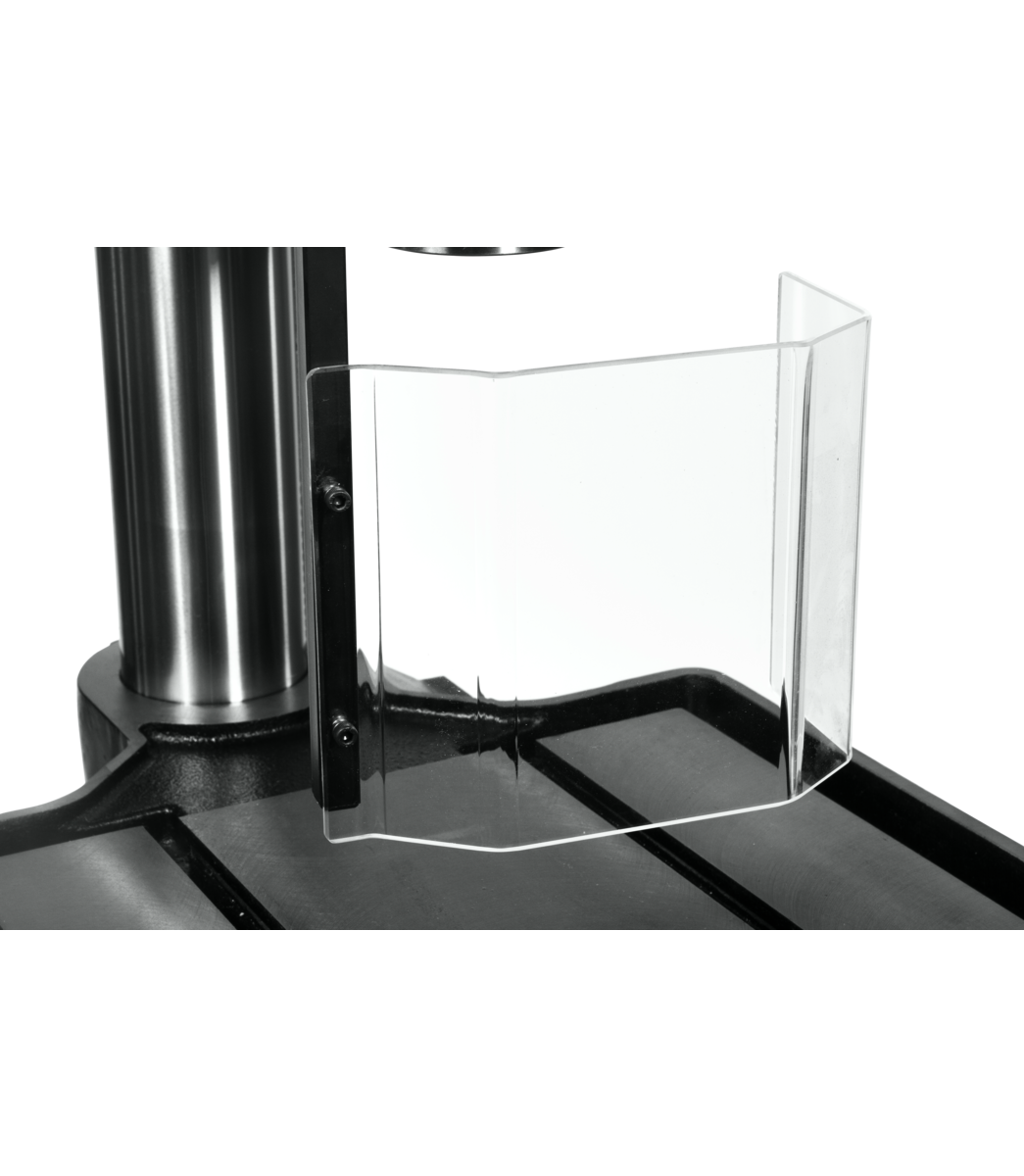

• Spindle guard protects user from flying debris
• Spindle power down feed system
• Specification: Value
• Swing (In.): 19-11/16
• Drills to Center of Circle (In.): 10
• Drilling Capacity Mild Steel (In.): 1-1/8
• Drilling Capacity Cast Iron (In.): 1-1/4
• Distance Column to Spindle (In.): 26-1/2
• Table Size (L x W) (In.): 16-1/2 x 18-1/2
• Tapping Capacity Mild Steel (In.): 5/8
• Spindle Distance to Base (In.): 48-1/4
• Spindle Distance to Table (Max.) (In.): 46.85
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel, Manual (In.): 5
• Spindle Travel Auto (In.): 4-1/4
• Quill Diameter (In.): 2.16
• T-Slots Number and Size (In.): 2, 1/2
• Base Work Table (In.): 14-3/16 x 13
• Column Diameter (In.): 4
• Base Dimensions (In.): 17.7 x 25-1/2
• Motor (HP): 1.5HP, 230V, 3PH
• Inverter Type / Power Source: 2HP/115V/1PH
• Inverter Type: JET Exclusive
• Overall Dimensions (L x W x H) (In.): 32-3/5 x 22-2/3 x 70-25/64
• Length: 32.5900
• Height: 70.3900
• Weight: 582.0000
• Width: 22.6300

Specifications

• Manufacturer: JET
• SKU: JT9-354251
• UPC: 731325789621
• Shipping Method: LTL Freight
• Weight: 582 lb
• Dimensions: 32.59 × 22.63 × 70.39 in
• Country of Origin: Taiwan
