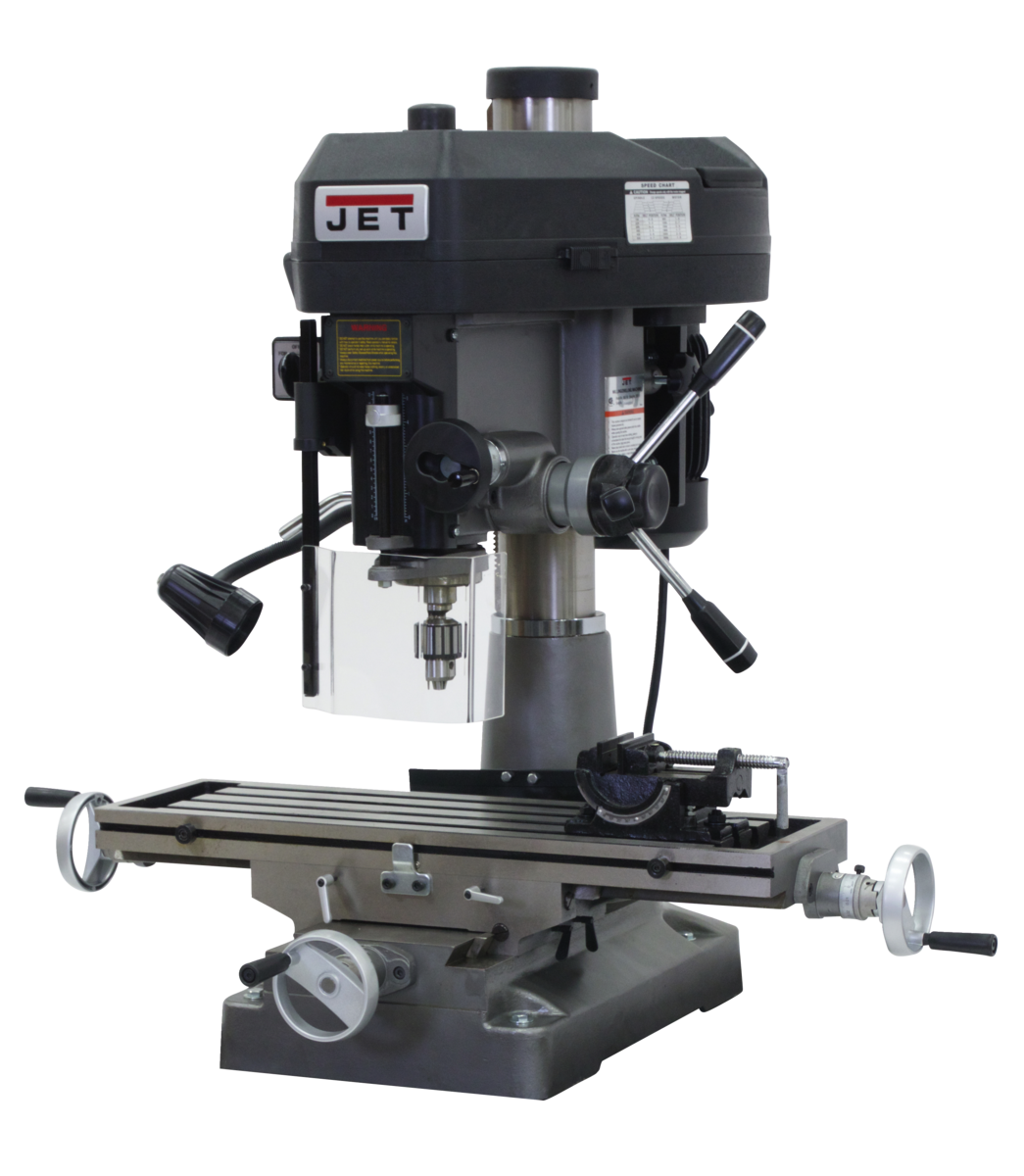

Jet JMD-18 Mill/Drill With NEWALL DP500 DRO 350133

Jet JMD-18 Mill/Drill With NEWALL DP500 DRO 350133 is a JET product in the Milling Machines collection.

Product Details

• 1/2” Drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read internal depth gauge
• Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
• Forward and Reverse Switch
• Mill Drill Stand, p/n 320020, shown in some images, is optional
• One-piece cast iron column for added support
• Positive quick-stop knob and easy to read internal depth gauge
• UL Listed
• Specification: Value
• Spindle Travel (In.): 5
• Number of Spindle Speeds: 12
• Face Mill Capacity (In.): 3
• Table Size (L x W) (In.): 9-1/2 x 32-1/4
• Weight (Lbs.): 660
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 17-1/2
• Quill Diameter (In.): 3
• Range of Spindle Speeds (RPM): 150 – 3,000
• Table Longitudinal Travel (In.): 20-1/2
• T-Slots Number and Size (In.): 4 and 5/8
• T-Slot Centers (In.): 1-13/16
• Work Table Weight Capacity (Lbs.): 400
• Motor (HP): 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
• Height: 0.0000
• Length: 0.0000
• Weight: 660.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-350133
• UPC: 731325453874
• Shipping Method: LTL Freight
• Weight: 660 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
