Jet JTM-1050EVS2 230V Three Phase 3-Axis Mill with Acu-Rite MILLPWR G2 CNC Controller and Air Powered Drawbar JT9-690684
$50,948.82Current price is: $50,948.82.
- Collet Capacity: 1/8” – 7/8”
- Column width: 20”
- Table cross travel: 14¾”
- Saddle width: 11½”
Jet JTM-1050EVS2 230V Three Phase 3-Axis Mill with Acu-Rite MILLPWR G2 CNC Controller and Air Powered Drawbar JT9-690684 is a JET product in the Milling Machines collection.
Product Details
- Collet Capacity: 1/8” – 7/8”
- Column width: 20”
- Table cross travel: 14¾”
- Saddle width: 11½”
- Description
- JET offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation.
- Features

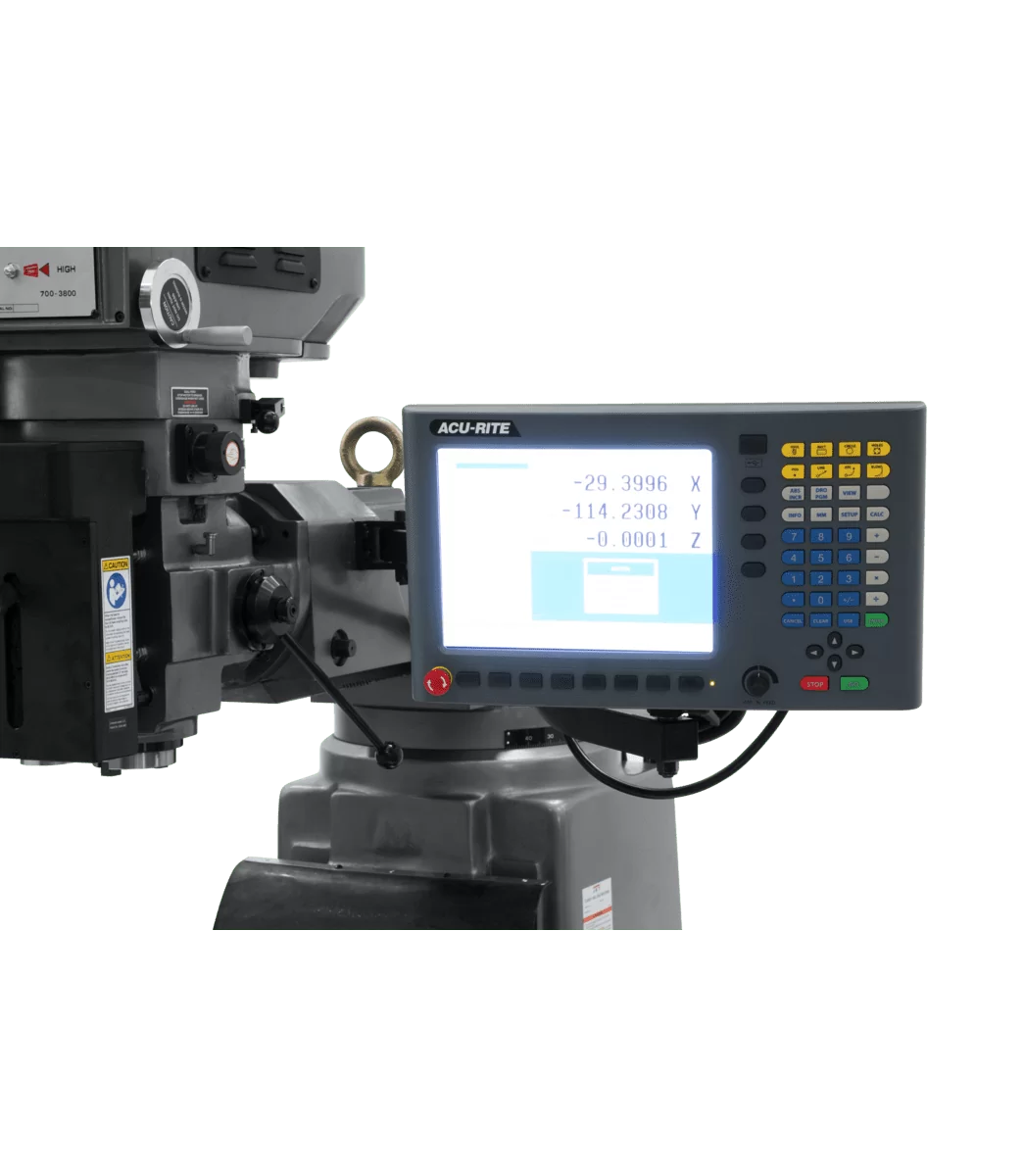

- 12.1” high resolution display (1024 x 768) with 3D graphics
- Available offline software
- Built-in calculator: performs standard, trig, and geometry calculations and transfers them directly into part programs
- Closed loop feedback using Acu-Rite precision linear encoders with 0.00005” resolution
- CNC electronic variable speed vertical milling machine package for JTM-1050EVS
- Estimated run time feature
- Jog control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneously

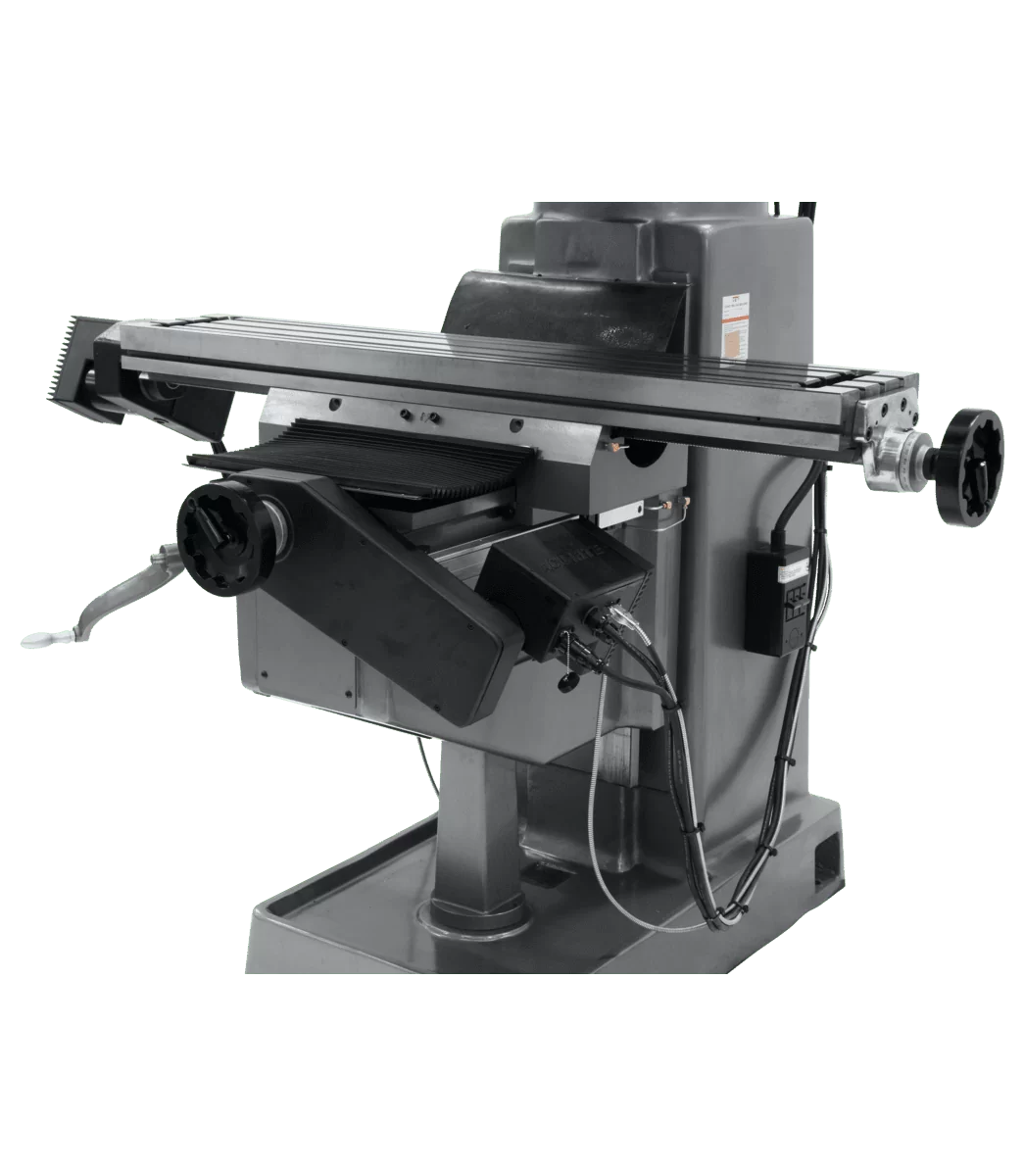

- Powerful DC Servo motor assemblies that include mounting castings and hardware
- Precision ground ball screws eliminate backlash for precise lateral movements
- USB + Ethernet compatible
- Specifications
- CNC Package: ACU-RITE MILLPWR® G2
- Max distance spindle to column: 26¾”
- Inverter type: Delta, B
- Max distance spindle to table: 20¾”
- Number of Axis: 3
- Power Draw Bar: Pneumatic
- Prop 65: Cancer and Reproductive Harm
- Quill diameter: 3-3/8”
- Quill down feed rates (IPR): 0.0015 – 0.003 – 0.006
- Range of spindle speeds: 60-4,500 rpm
- Spindle Taper: R-8
- Spindle travel: 5”
- Style: CNC
- T-Slot Centers: 2½”
- Table longitudinal travel: 35-1/3”
- Table longitudinal travel with power feed: 29-7/8”
- Table size: 10” x 50”
- Travel of Knee: 16-1/8”
- Travel of Ram: 15-7/8”
- Work table weight capacity: 840 lbs
- Motor: 230V Three Phase 3HP
- Machine Dims: 67” x 63” x 86”
- Approx Weight: 2,486 lbs
Specifications
- Manufacturer: JET
- SKU: JT9-690684
- UPC: 731325482102
- Shipping Method: LTL Freight
- Weight: 2,600 lb
- Dimensions: 75 × 70 × 90 in
| Weight | 2600.0 lbs |
|---|---|
| Dimensions | 75.0 × 70.0 × 90.0 in |
| Brand | JET |
