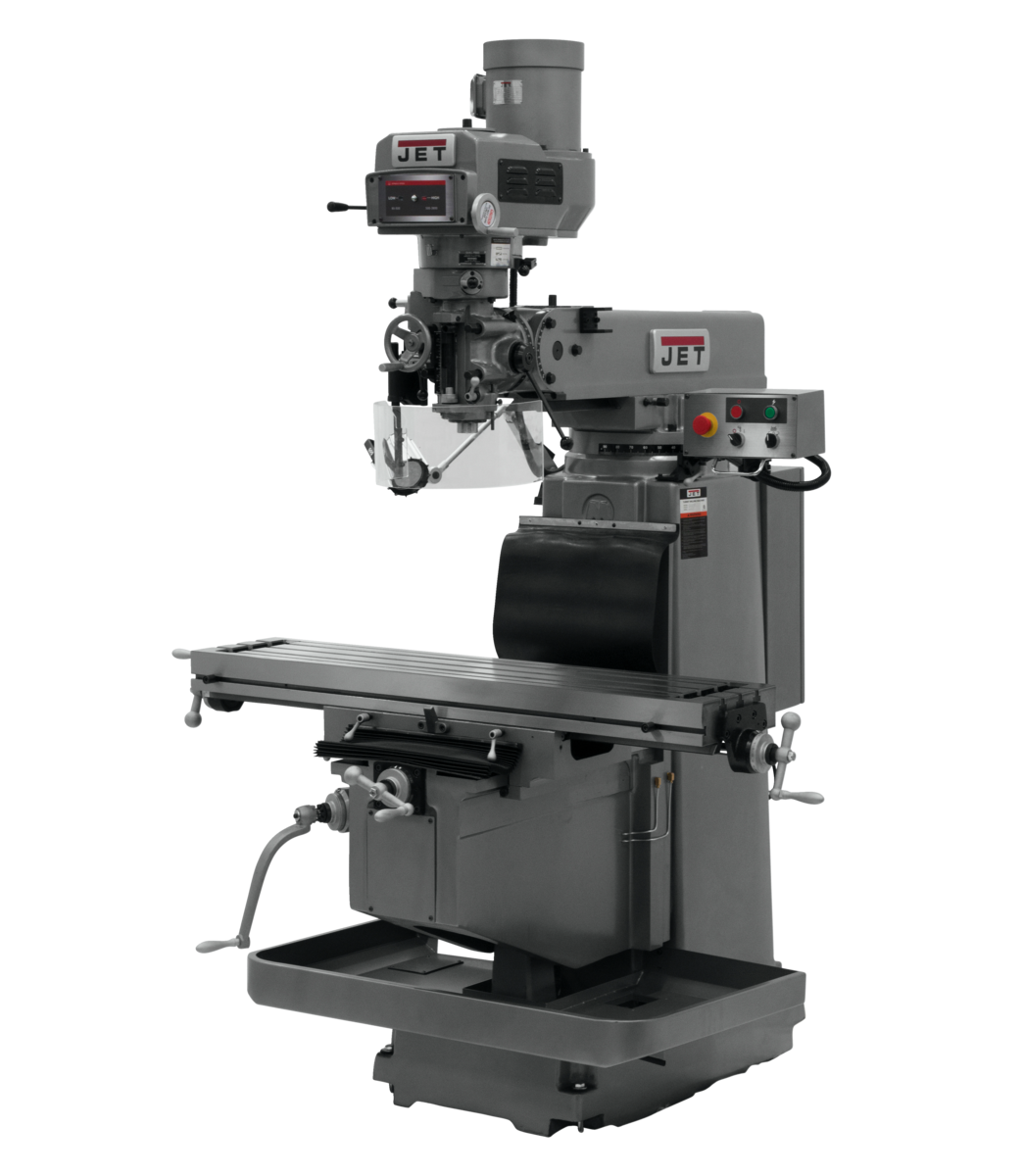

Jet JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph 690020
$17,568.54Current price is: $17,568.54.
- Adjustable gibs throughout
- Dual locks on all moveable surfaces
- Heavy-duty spindle brake
- Precision bored and honed milling head
Jet JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph 690020 is a JET product in the Milling Machines collection.
Product Details
- Adjustable gibs throughout
- Dual locks on all moveable surfaces
- Heavy-duty spindle brake
- Precision bored and honed milling head
- Precision hardened and ground ways and table
- This JET® 12" x 54" Vertical Metal Mill features the rugged stability of Meehanite® Castings to ensure that every job is up to your standards.
- Spindle Brake for rapid stopping of the spindle
- Three Precision ground t-slots
- Three-stage power downfeed with automatic stop
- Two 115V outlets on electrical box for Powerfeeds only
- Specification: Value
- Spindle Travel (In.): 5
- Style (Type): Variable Speed R8
- Table Size (L x W) (In.): 12 x 54
- Weight (Lbs.): 3969
- Spindle Taper (In. x TPI): R-8
- Max Distance Spindle to Table (In.): 23
- Distance Spindle to Column (Max.) (In.): 27-3/4
- Quill Diameter (In.): 3-3/8
- Range of Spindle Speeds (RPM): 80 – 3,800
- Collet Capacity: 1/8 – 1
- Table Longitudinal Travel (In.): 33-7/8
- Quill Down Feed Rates (IPR): .0015–.003–.006
- Table Longitudinal Travel With Powerfeed (In.): 28-1/4
- Table Cross Travel (In.): 15-1/3
- T-Slot Centers (In.): 2-1/2
- Work Table Weight Capacity (Lbs.): 925
- Travel of Knee (In.): 19-1/4
- Travel of Ram (In.): 25
- Saddle Width (In.): 25-5/8
- Motor (HP): 5HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
- Height: 104.2500
- Length: 92.1250
- Weight: 3969.0000
- Width: 79.8750
Specifications
- Manufacturer: JET
- SKU: JT9-690020
- UPC: 731325503753
- Shipping Method: LTL Freight
- Weight: 3,969 lb
- Dimensions: 92.13 × 79.88 × 104.25 in
- Country of Origin: Taiwan
| Weight | 3969.0 lbs |
|---|---|
| Dimensions | 92.13 × 79.88 × 104.25 in |
| Brand | JET |
