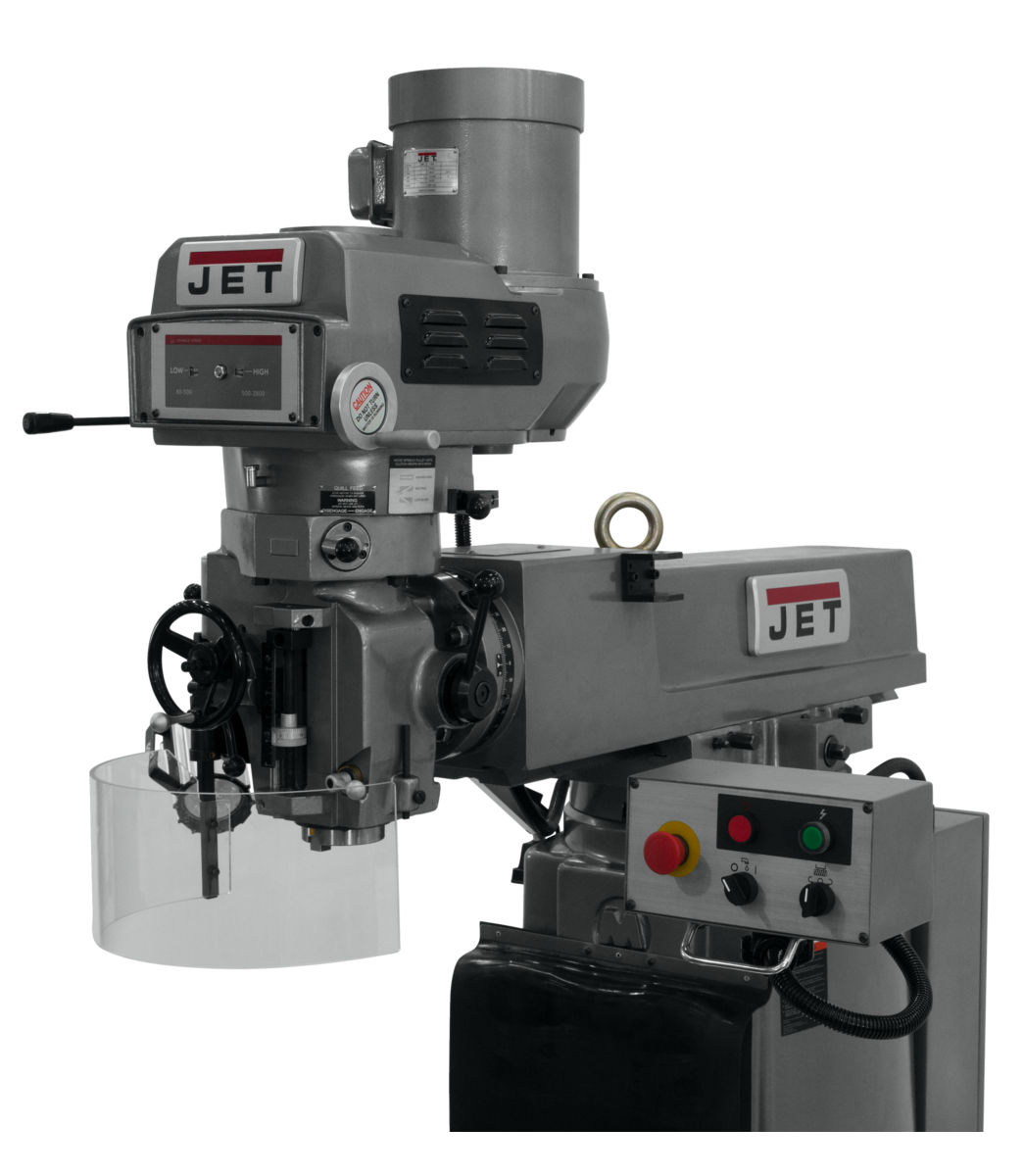

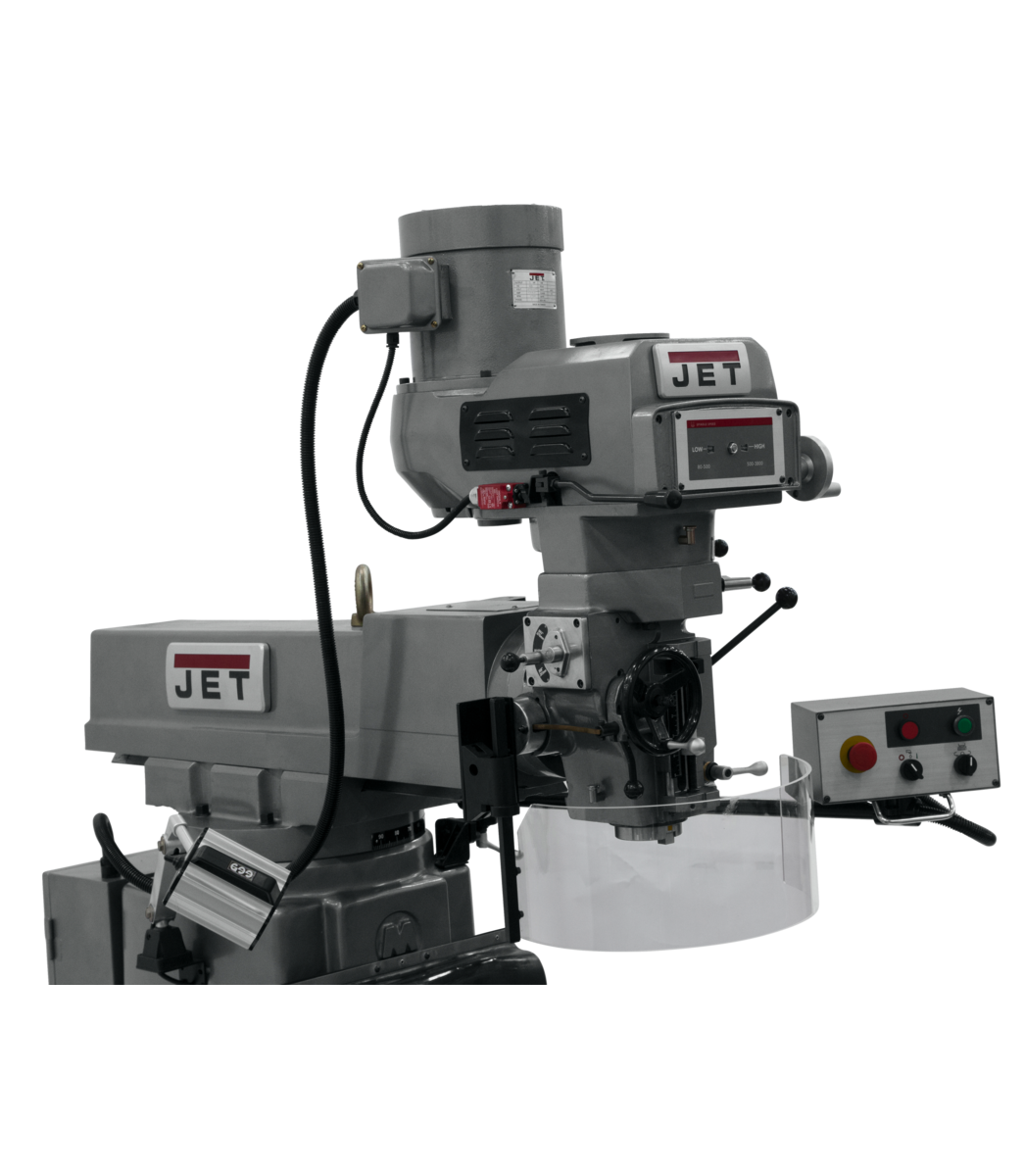

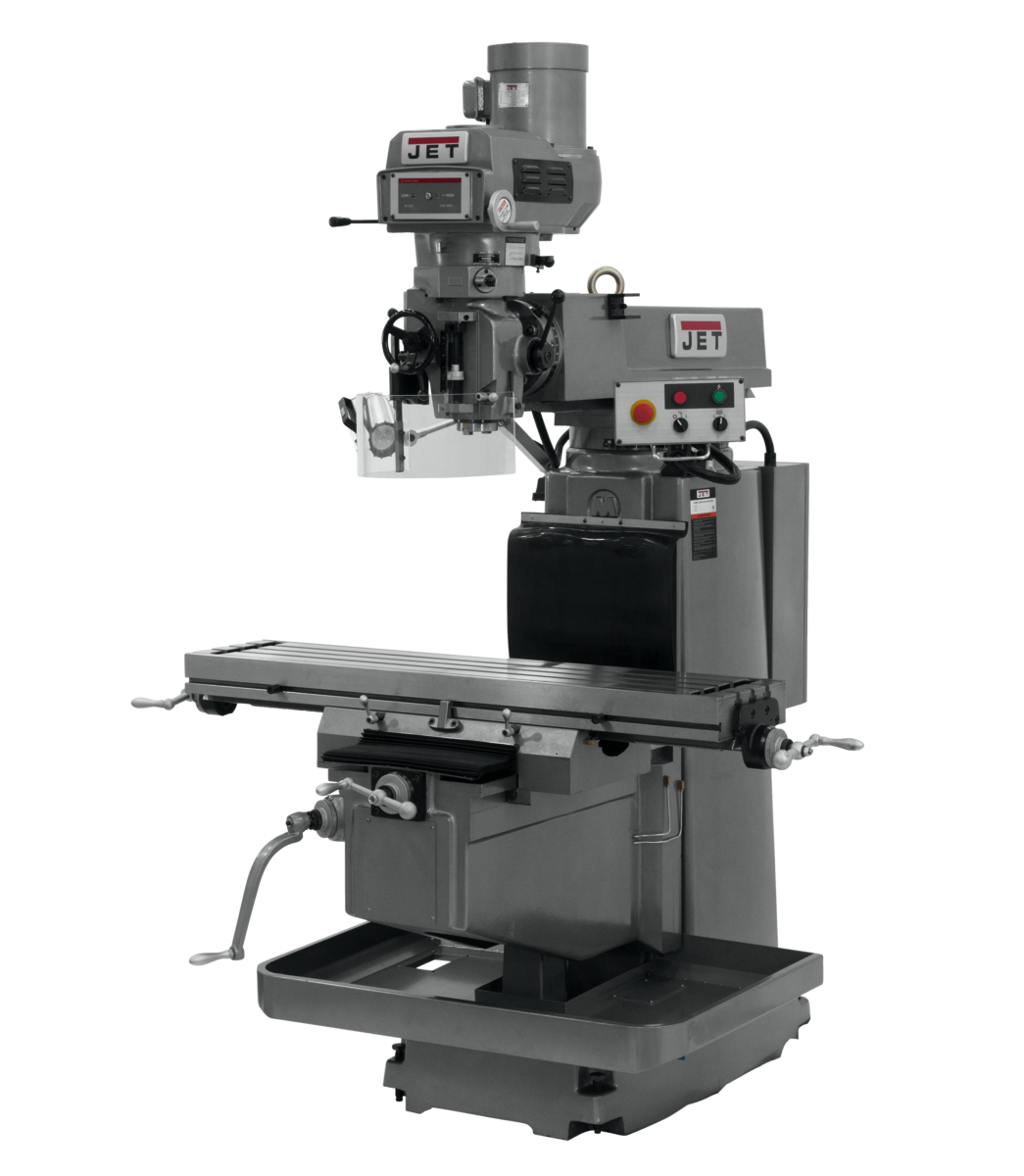

Jet JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph 690025

Jet JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph 690025 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Certified Meehanite® castings
• Dual locks on all moveable surfaces
• Precision bored and honed milling head
• The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
• Precision hardened and ground ways and table
• Quick nut for spindle feed
• Spindle Brake for rapid stopping of the spindle
• Three Precision ground t-slots
• Three-stage power downfeed with automatic stop
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): Variable Speed NT40
• Table Size (L x W) (In.): 12 x 54
• Weight (Lbs.): 3969
• Spindle Taper (In. x TPI): NST #40
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800
• Quill Down Feed Rates (IPR): .0015–.003–.008
• Table Longitudinal Travel With Powerfeed (In.): 33-7/8
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 925
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Saddle Width (In.): 25-5/8
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Height: 104.2500
• Length: 92.1250
• Weight: 3969.0000
• Width: 79.8750

Specifications

• Manufacturer: JET
• SKU: JT9-690025
• UPC: 731325503760
• Shipping Method: LTL Freight
• Weight: 3,969 lb
• Dimensions: 92.13 × 79.88 × 104.25 in
• Country of Origin: Taiwan
