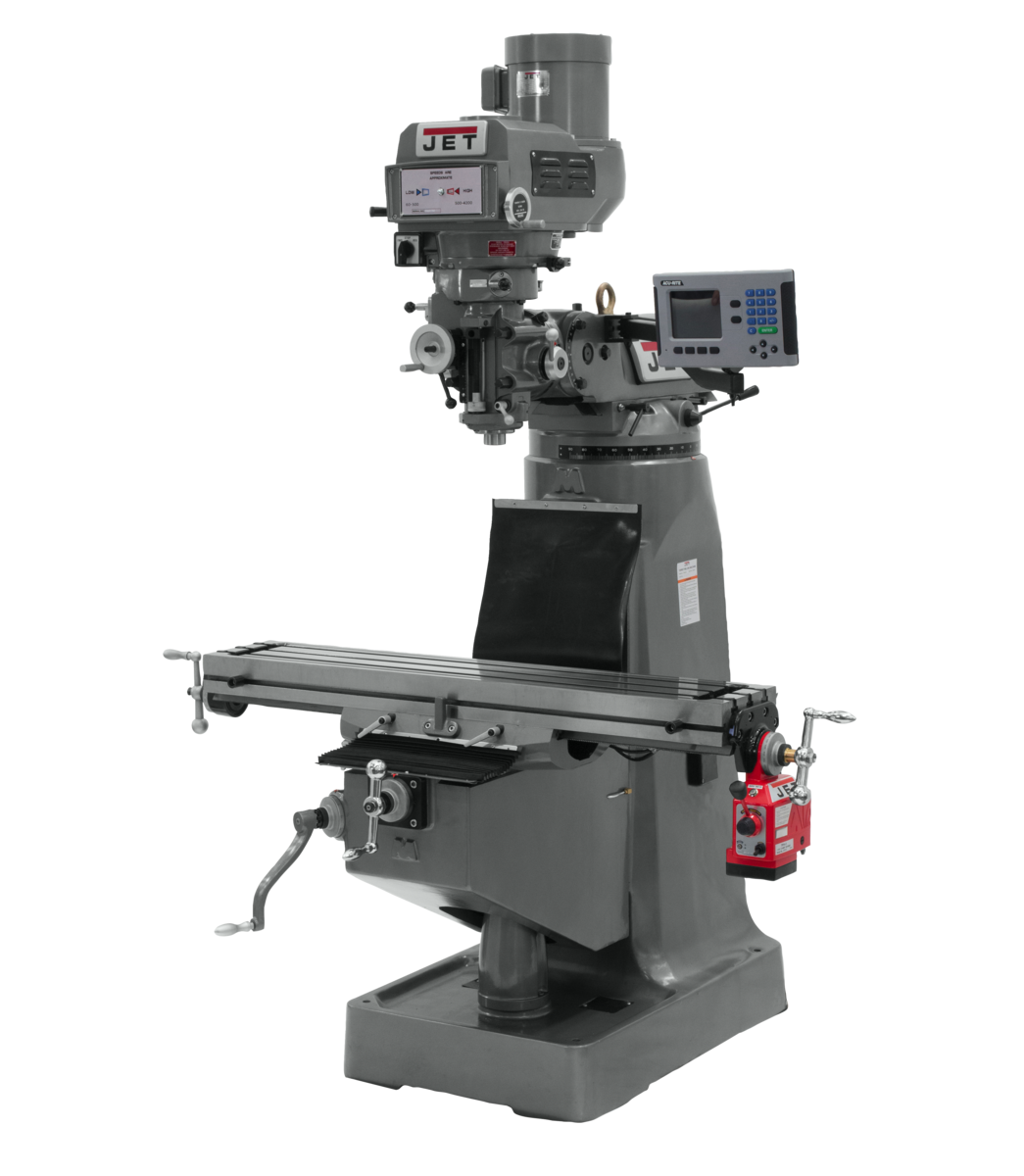

Jet JTM-4VS Mill With ACU-RITE 203 DRO With X-Axis Powerfeed 690107
$9,547.50Current price is: $9,547.50.
- Adjustable gibs throughout
- Heavy duty splined motor drive
- Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
Jet JTM-4VS Mill With ACU-RITE 203 DRO With X-Axis Powerfeed 690107 is a JET product in the Milling Machines collection.
Product Details
- Adjustable gibs throughout
- Heavy duty splined motor drive
- Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
- Precision hardened and ground ways and table
- Spindle head is internally cooled
- Tolerance test sheet included
- Specification: Value
- Powerfeed: X-Axis
- Spindle Travel (In.): 5
- Style (Type): Variable Speed R8
- Number of Axis: 2
- Table Size (L x W) (In.): 9 x 49
- Weight (Lbs.): 2420
- Spindle Taper (In. x TPI): R-8
- Max Distance Spindle to Table (In.): 17-1/2
- Distance Spindle to Column (Max.) (In.): 19
- Quill Diameter (In.): 3-3/8
- Range of Spindle Speeds (RPM): 60 – 4,200
- Collet Capacity: 1/8 – 7/8
- Table Longitudinal Travel (In.): 34
- Quill Down Feed Rates (IPR): .0015 – .003 – .006
- Table Longitudinal Travel With Powerfeed (In.): 28-3/4
- Table Cross Travel (In.): 12
- T-Slot Centers (In.): 2-1/2
- Work Table Weight Capacity (Lbs.): 660
- Travel of Knee (In.): 14-1/2
- Travel of Ram (In.): 13-3/8
- Motor (HP): 3 HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
- Height: 72.0000
- Length: 66.0000
- Weight: 2230.0000
- Width: 56.0000
Specifications
- Manufacturer: JET
- SKU: JT9-690107
- UPC: 662755810169
- Shipping Method: LTL Freight
- Weight: 2,230 lb
- Dimensions: 66 × 56 × 72 in
- Country of Origin: Taiwan
| Weight | 2230.0 lbs |
|---|---|
| Dimensions | 66.0 × 56.0 × 72.0 in |
| Brand | JET |
