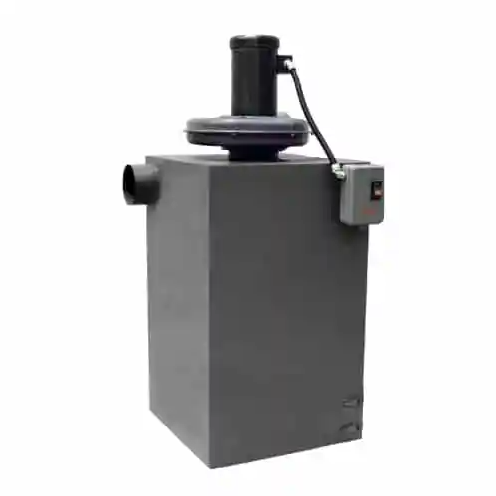

Kalamazoo Industries 3HP 220V Three Phase Dust Collector DCV-1
$1,990.95Current price is: $1,990.95.
- Capacity: 1200 CFM.
- Amp draws: 3PH 230 FLA 7.2 amps and 440 FLA 3.6 amps
- Vacuum dimensions: 24″ x 24″, 40″ High
- Magnetic on/off switch.
Kalamazoo Industries 3HP 220V Three Phase Dust Collector DCV-1 is a Kalamazoo Industries product in the Grinding & Sanding collection.
Product Details
- Capacity: 1200 CFM.
- Amp draws: 3PH 230 FLA 7.2 amps and 440 FLA 3.6 amps
- Vacuum dimensions: 24″ x 24″, 40″ High
- Magnetic on/off switch.
- Description
- The DCV-1 industrial vacuum is built with a powerful 3HP 3PH, 220V or 440V (specify voltage at time of order) TEFC motor and comes with a 6″ port and replaceable dust bag and vacuum base clean out.
- The DCV-1 is designed to collect various materials such as ferrous metals and non-ferrous metals.
- DCV-1 dust collector has applications in the following industries that: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Machine shops, Automotive, Metal Foundries, fabrication shops, work working shops and well as many other Manufacturing and Fabrication environments.
- Features
- Dust bag furnished with unit.
- Use with 16 inch – 26 inch abrasive saws and 8 inch – 14 inch belt sanders and the DS20 20″ disc sander.
- Dust collector for dry heavy duty applications.
- Specifications
- Motor: 3 HP, 3 PH. 220V or 440V
- Shipping weight: 300 lbs.
- Shipping dimensions: L 39″ x W 39″ x H 64″
- Options
- Dust port for the K20SSF
- K16-16 abrasive saws
- S8, S10, S14 belt sanders
- DS20 disc sander
Specifications
- Manufacturer: Kalamazoo Industries
- SKU: DCV-1 (220V)
- Shipping Method: LTL Freight
- Weight: 300 lb
- Dimensions: 39 × 39 × 64 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 300.0 lbs |
|---|---|
| Dimensions | 39.0 × 39.0 × 64.0 in |
| Brand | Kalamazoo Industries |
