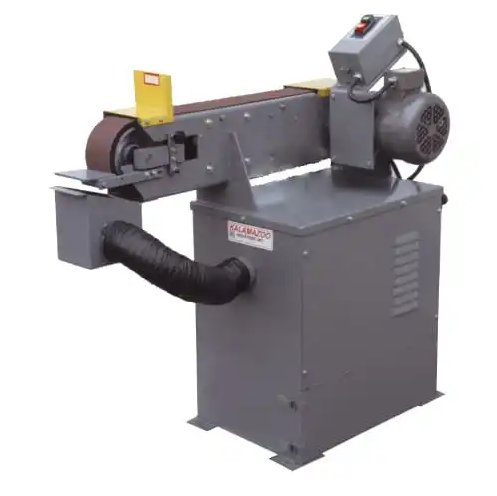

Kalamazoo Industries 5HP 220V Three Phase 4” x 90” Belt Grinder with Dust Collector KS490HV-5
$4,355.00Current price is: $4,355.00.
- Grinder amp draws: 3PH 230V 11.8 amps
- Dust collector amp draws: 3PH 230V 2.8 amps
- Belt speed: 6900 SFPM
- Grinder switch: Magnetic on/off switch
Kalamazoo Industries 5HP 220V Three Phase 4” x 90” Belt Grinder with Dust Collector KS490HV-5 is a Kalamazoo Industries product in the Grinding & Sanding collection.
Product Details
- Grinder amp draws: 3PH 230V 11.8 amps
- Dust collector amp draws: 3PH 230V 2.8 amps
- Belt speed: 6900 SFPM
- Grinder switch: Magnetic on/off switch
- Description
- KS490HV-5 4 x 90 inch belt grinder with dust collector is a heavy duty direct drive unit that features a powerful 5HP, 3PH motor, 6900 SFPM belt which delivers quick metal removal with minimal heat build up. An 8″ OD x 4″ W serrated 70 duro contact wheel with full left to right movement that allows for easy corning shaping, beveling, grinding, deburring, flat work, descaling, angel work and roughing.
- This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
- Designed to Do
- Aggressive grinding
- Beveling
- Deburring
- Descaling
- Polishing
- Finishing
- Tool sharpening
- Features
- Spring belt tensioning
- Vacuum base.
- Made in USA!
- Vacuum switch: rotary on/off switch.
- 8″ OD x 4″ W 70 durometer contact wheel with standard serrations.
- 24 – 1/2″ long reversible and replaceable steel platen.
- Mounted on DCV-6 dust collector – 400 CFM
- Specifications
- Motor: 5 HP 3 PH belt sander (220/440V)
- Dimensions: W 18″ x D 26″ x H 42″
- Weight: 450 lbs.
- Options
- KB49050 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
- KB49080 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
- KB490100 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
- 563-009 – 3 X 90 AND 4 X 90 INCH BELT GRINDER STEEL PLATEN
- 560-056 – 3 AND 4 INCH BELT GRINDER DRIVE WHEEL AND BUSHING
- 936-010 – 4 x 8 INCH 70 DUROMETER CONTACT WHEEL
Specifications
- Manufacturer: Kalamazoo Industries
- SKU: KS490HV-5 (220V)
- Shipping Method: LTL Freight
- Weight: 550 lb
- Dimensions: 31 × 23 × 47 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 550.0 lbs |
|---|---|
| Dimensions | 31.0 × 23.0 × 47.0 in |
| Brand | Kalamazoo Industries |
