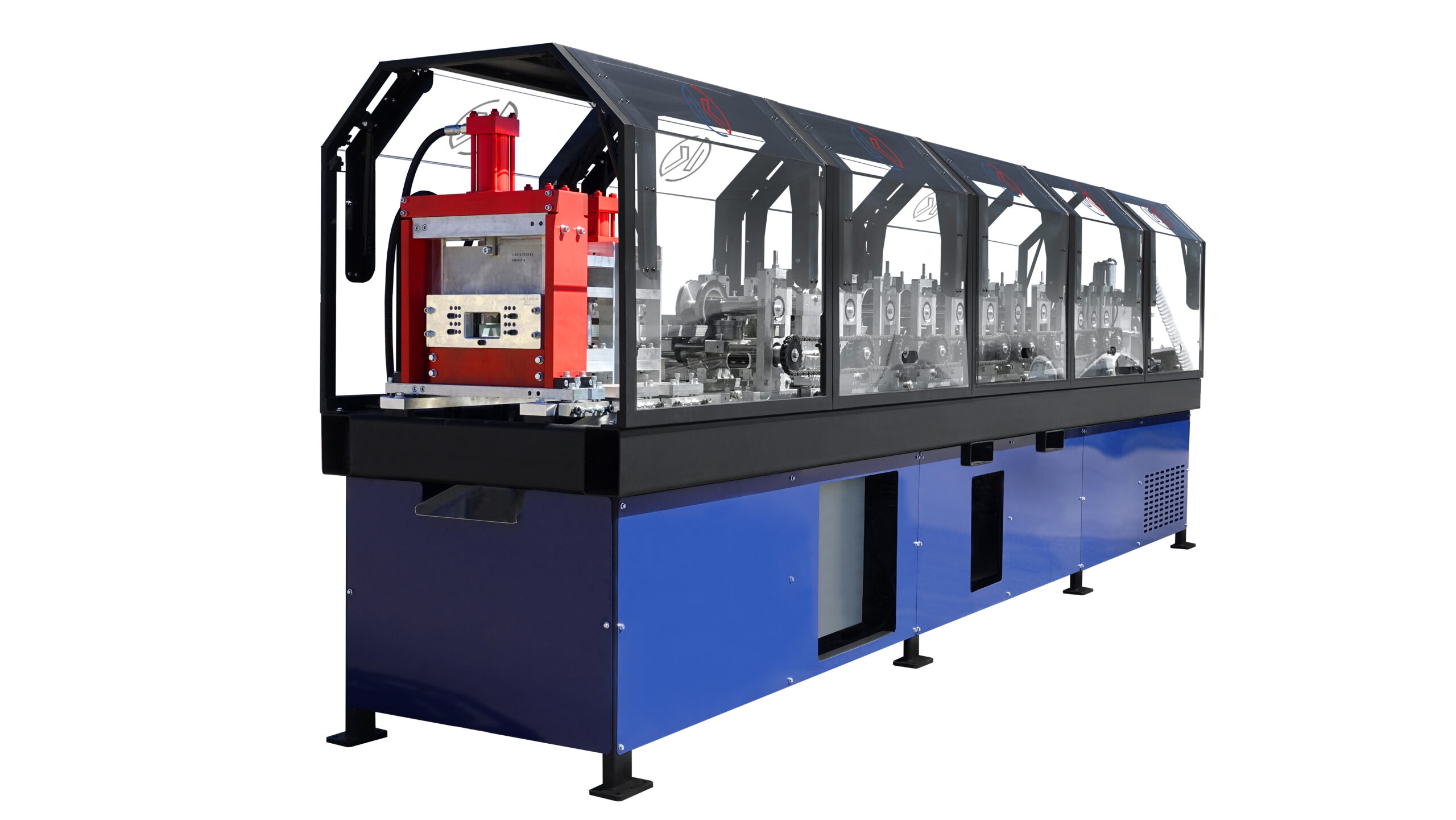

Knudson by Scottsdale Structural Framemaker Stud and Track Roll Forming Machine KFS 1622G1

Knudson by Scottsdale Structural Framemaker Stud and Track Roll Forming Machine KFS 1622G1 is a Knudson Manufacturing product in the Metal Forming & Shaping collection.

Product Details

• Stud/Track Web Sizes: 3.5 to 8-in. deep, Ga. 16 to Ga. 22 thick
• 5-station expandable manifold, printer mounting head, sheat/cut-off
• Flange dimpling tooling, 1.5×3.0-in. web service slot tooling
• Over 20 additional options, including control software, discounted Strucsoft MWF license, and much more.
• Overview
• The KFS-1622 FRAMEMAKER® showcases Knudson’s multi-profile/multi-thickness capabilities in a structural stud and track former. Tailored to the residential and multi-family component sizes, the KFS-1622 forms C-Channel (stud) and U-Channel (track) light-gauge steel framing profiles for residential and light commercial wall, floor, and truss construction.
• Profile Specifications
• KFS-1622 forms the following stud/track profiles:
• Stud/Track Web Sizes: 3.50, 3.63, 4.00, 5.50, 6.00, 8.00-in
• Stud Flange Sizes: 1.63, 2.00, 2.50-in
• Track Flange Sizes: 0.75-in (min) to 2.50-in (max)
• Oversized (standard) Track Profiles
• Profile Depth (max): 2.50-in
• Mechanical Change-Over – profile size and material thickness
• Material Specifications
• The KFS-1622 can successfully form the following materials.
• Material Thickness: 0.027 to 0.060-in (22 to 16 Ga)
• Material Strength: Grade 50 – up to 65-ksi Yield Strength
• Material Finish: Galvanized (up to G120), Painted, Bare
• Strip Width (min): 2.00-in
• Strip Width (max): 14.00-in
• Production Speed Rates
• Running Line Speed: 120 feet per minute (max)
• Average Stud Production Rate (Actual Throughput): 50-ft/min
• Average Track Production Rate (Actual Throughput): 35-ft/min
• Mechanical Specifications
• Overall Dimensions
• Length: 192-in (16 ft)
• Width: 36.00-in
• Height: 66.00-in (including safety covers)
• Weight: 4,200-lbs
• Roll-Forming Specifications
• 10 roll forming stations
• 1 Adjustment Stations
• 1 Pull-Out Station
• Exit-End Cut-Off
• Pass Line Height: 41.00-in
• Stop-to-Cut System
• In-Line Tool Specifications

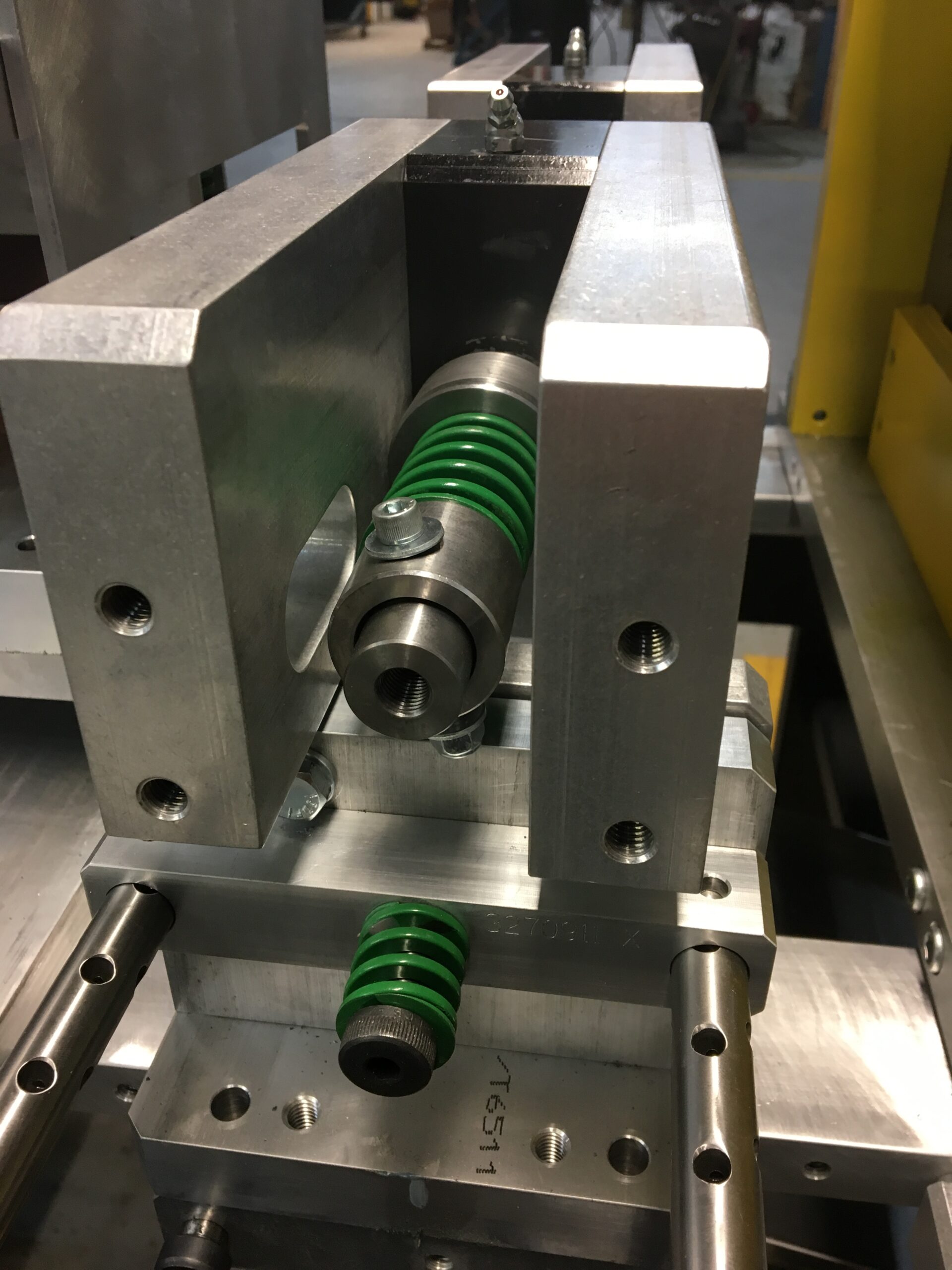

• The KFS-1622 may be customized with a selection of in-line punch tools:
• A library of over 40 punch configurations
• Standard and Custom features available
• Electrical Option Specifications
• 460 VAC / 60 Hz / 3 Ph – 48 Amps Full System Load
• 230 VAC / 60 Hz / 3 Ph – 97 Amps Full System Load
• Control Systems Option Specifications
• Beck Automation SII Multi-Press Controller
• Stop-to-Cut/Punch Control Type
• Servo-Feed, Closed Loop Control
• Drive System Specifications
• 11 KW Servo Motor Drive
• Sprocket and Roller Chain Power Transfer – Power Take-Off and Station-to-Station
• Spur Gear Power Transfer – Bottom to Top
• Hydraulic Power System Specifications
• Hydraulic Power Specifications (punch tool operation/actuation):
• 7.5 HP Electric Motor
• Axial Piston Variable Displacement Pump (Pressure Compensated System)
• 5.5 gpm @ 2,000-psi
• 4-Way, 2-Position Valves for Tool Actuation
• Environmental Specifications
• Ambient Air Temperature
• +41° to +131° Fahrenheit (+5° to +55° Celsius)
• Up to 24 hours at 122° Fahrenheit (50° Celsius)
• Humidity Range
• No Restrictions
• Altitude Range
• Vibration Shock and Bump
• Minimal vehicular transport on maintained roads
• Off-road transportation not recommended
• Transportation and Storage
• –13° to +131° Fahrenheit (–25° to +55° Celsius)
• Up to 24 hours at +158° Fahrenheit (+70° Celsius)
• Explosive Atmosphere
• Should not be operated in any kind of explosive atmosphere
• Airborne Noise Emissions
• Equivalent continuous A-weighted sound pressure level—less than 70 dB (A)
• Fluid Specifications
• The factory recommends use of the following fluids with the KFS-35X Power Pack:
• Hydraulic Oil – ISO 46 Oil
• Coolant – Soluble Oil EP CF
• Blade/Punch Lubricant –WD-40
• Shaft Lube – Mobile Synthetic Lubricating Grease
• Options
• Material Handling
• Dead-Roller Conveyor Tables for Material Discharge
• Coil Handling
• Motorized Stock Reels (Uncoilers) for Coil Feed
• Powered Material Straighteners/Levelers for Coil Straightness
• Software
• Connex™ Web-Based Enterprise Software Network Connection to Machinery Production Planning and Job Programming/Scheduling Inventory Management and Production Reporting
• Network Connection to Machinery
• Production Planning and Job Programming/Scheduling
• Inventory Management and Production Reporting
• CAD/Building Design Software Compatibility Strucsoft Solutions – MWF Pro Metal Vertex Systems – Vertex BD Arktec – TriCalc
• Strucsoft Solutions – MWF Pro Metal
• Vertex Systems – Vertex BD
• Arktec – TriCalc

Specifications

• Manufacturer: Knudson Manufacturing
• SKU: KFS-1622G1
• Shipping Method: Flatbed
• Weight: 4,200 lb
• Dimensions: 192 × 36 × 66 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
