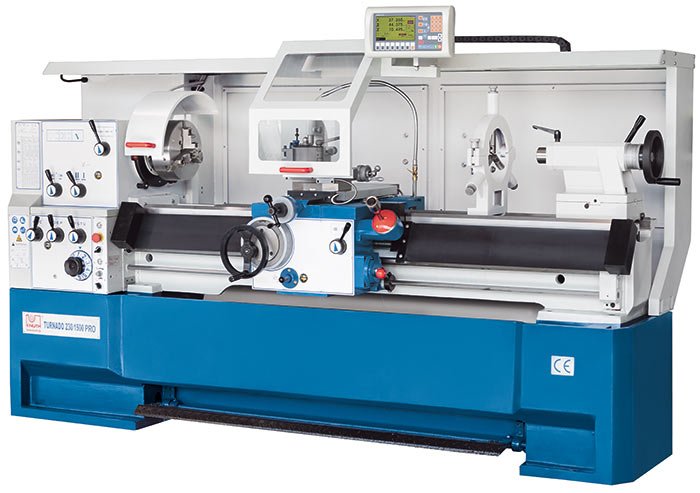

Knuth 10.1HP 59″ Center Width Turnado 280/1500 PRO Universal Lathe 320564

Knuth 10.1HP 59″ Center Width Turnado 280/1500 PRO Universal Lathe 320564 is a Knuth product in the Lathes collection.

Product Details

• Center height: 11”
• Turning-Ø over support: 14”
• Center width: 59.06"
• Bed width: 14”
• Description
• The machines of the Turnado PRO series are the modern version of the classic lathe. The PRO models are the latest generation of Knuth’s universal lathes, which have been tried and tested for 20 years. With constant cutting speed, rapid traverses and an extended speed range that can be controlled by an inverter, these models are characterized by high-performance machining, excellent surface quality and time efficiency. They are easy to recognize by the new ergonomic cladding design, which integrates all functions into an overall concept.
• Features
• With a new support, rapid feed, and a modern ergonomic machine frame, the Turnado Lathe PRO series continues its success story
• A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base
• Removable bridge allows machining of short workpieces with large diameters
• Back-gearing and an advanced electronic control technology of the powerful main spindle drive ensure high torque and a wide range of speeds
• High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity
• All guides are adjustable
• Gears, transmission shafts, and guideways are hardened and ground to guarantee quiet operation and long tool life

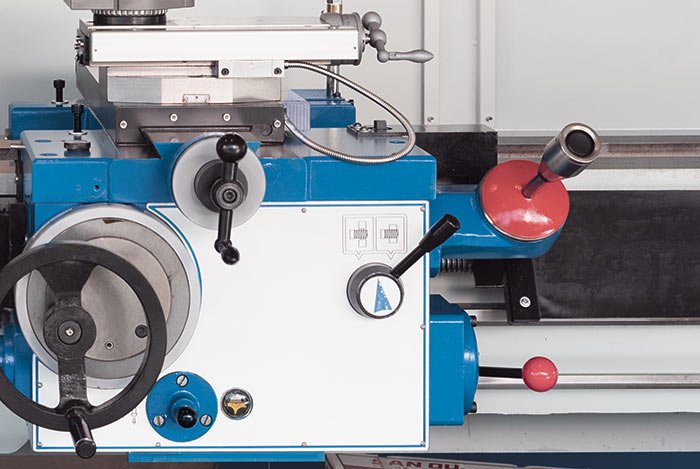

• The apron runs in an oil bath for low maintenance and high reliability
• A central lubrication system inside the support supplies all guideways with lubrication and simplifies maintenance
• Micrometer bed stop ensures high repeatability on the Z-axis

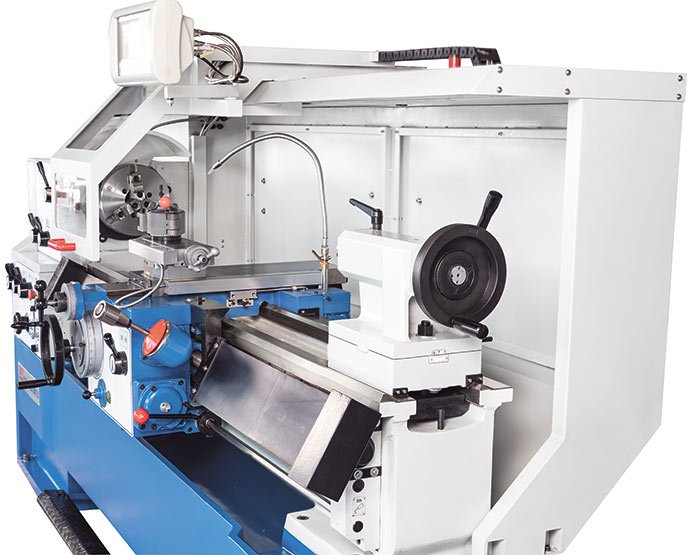

• The tailstock can be adjusted sideways for taper turning
• The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
• Constant cutting speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
• 3-axis position indicator, X.pos 3.2 VC
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions Auflösung 0,005 mm Spindle control ON/OFF Unit measurement conversion Inch / Metric Setting / Reseting current position Coordinate display switching ABS / INC Radius / Diameter display Z1/Z2 Axes summing Pocket calculator functions
• Auflösung 0,005 mm
• Spindle control ON/OFF
• Unit measurement conversion Inch / Metric
• Setting / Reseting current position
• Coordinate display switching ABS / INC
• Radius / Diameter display
• Z1/Z2 Axes summing
• Pocket calculator functions
• Extended Functions Axis position is maintained when display is turned off Hole circle pattern calculation Radius / diameter toggle Reference function for tool gauging Taper turning function
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function
• Constant cutting speed Allows you to have constant cutting speed during – the spindle speed automatically adjusts based on the turning diameter
• Allows you to have constant cutting speed during – the spindle speed automatically adjusts based on the turning diameter
• Standard Equipment
• 3-axis position indicator
• 3-jaw chuck Ø 12 inch
• 4-jaw face chuck Ø 14 inch
• Face plate Ø 17.7 inch
• Quick tool changer head WC
• Quick change tool holder WCD 32150
• Coolant system
• Steady and follow rests
• Rapid feed
• Micrometer longitudinal Stop
• Fixed splash guard (wall)
• Chuck guard
• Foot brake pedal
• Work light
• Traveling cover for the toolpost
• Reducing sleeve
• Dead center
• Micrometer bed stop
• Toolbox with operating tools
• Operator instructions
• Specifications
• Working Area Center height: 11” Turning-Ø over support: 14” Gap bridge length: 7” Bed width: 14” Center width: 59.06” Turning diameter over gap bridge: 31” In-gap diameter over bed: 22”
• Gap bridge length: 7”
• Turning diameter over gap bridge: 31”
• In-gap diameter over bed: 22”
• Travels Travel X-axis: 12.4” Travel Z1-axis: 5” Swing range of top slide: ± 52°
• Travel X-axis: 12.4”
• Travel Z1-axis: 5”
• Swing range of top slide: ± 52°
• Headstock Spindle mount: Camlock D1-8 Spindle bore: 3” Spindle taper: 7 MT Speed range, high: 200 rpm – 1600 rpm Speed range, low: 25 rpm – 200 rpm
• Spindle mount: Camlock D1-8
• Spindle bore: 3”
• Spindle taper: 7 MT
• Speed range, high: 200 rpm – 1600 rpm
• Speed range, low: 25 rpm – 200 rpm
• Feed Feed X-axis: 0.00079”/R – 0.02256”/R Feed Z-axis: 0.00232”/R – 0.0648”/R
• Feed X-axis: 0.00079”/R – 0.02256”/R
• Feed Z-axis: 0.00232”/R – 0.0648”/R
• Threading Threading, metric: 0.2 mm – 14 mm Threading, module: 0.0039” – 0.2756” Threading, withworth: (60) 2-112 TPI Threading, diametric: (50) 4-112 DP
• Threading, metric: 0.2 mm – 14 mm
• Threading, module: 0.0039” – 0.2756”
• Threading, withworth: (60) 2-112 TPI
• Threading, diametric: (50) 4-112 DP
• Tailstock Tailstock quill stroke: 7” Tailstock quill diameter: 3” Tailstock traverse adjustment: ± 0.47” Tailstock taper: MT 5
• Tailstock quill stroke: 7”
• Tailstock quill diameter: 3”
• Tailstock traverse adjustment: ± 0.47”
• Tailstock taper: MT 5
• Drive Capacity Motor rating main drive: 10.1 Hp
• Motor rating main drive: 10.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 112” x 46” x 58” Weight: 5,214 lbs.
• Overall dimensions (length x width x height): 112” x 46” x 58”
• Weight: 5,214 lbs.
• Optional Accessories
• 146483 – 4-Jaw Lathe Chuck Steel 12 inch
• 103025 – Quick-Set Spindle Bore Stop Size 9 3.1-3.6 inch
• 103332 – Pivoted Mounts LK 6
• 103022 – Quick-Set Spindle Bore Stop Size 7 2.2-2.6 in
• 103184 – Coolant Concentrate 5 Ltr.
• 103301 – Tool holder WCD 32×150
• 103302 – Tool holder WCD 32×170
• 103303 – Tool holder WCD 40×150
• 103304 – Tool holder WCD 40×170
• 103305 – Tool holder WCD 45×170
• 103307 – Tool holder WCH 50×160
• 106755 – Live Center MT 4
• 103820 – Reduction Sleeve MT 4/1
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 123040 – Power Worker Metal Cutter
• 104670 – Extension Sleeve MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 104750 – Tool Holder Bit MT4 / B18
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 103024 – Quick-set spindle bore stop size 8 2.5-3.2"
• 103196 – Quick-change tool holder set WC
• 103350 – Radius cutting head
• 103845 – Reduction sleeve MT 5/4
• 108344 – Measuring tool set M5
• 108365 – Digital micrometer calipers 0-4"
• 108521 – Knurl set, angles
• 108675 – Indexable insert set 0.98", 30 pcs
• 108700 – Turning tool set 8pcs, 0.78"
• 108800 – Mechanical clamping
• 108810 – Hydraulic measuring tripod
• 116553 – Soft jaw pads for 3-jaw chuck 12.4"
• 116653 – Soft jaw pads for 4-jaw chuck 12.4"
• 116673 – 4-jaw face plate chuck 12" D1-6
• 116692 – Soft jaw pads 12"
• 127011 – Dial digital 0-0.5"
• 127422 – Dial holder
• 129131 – Dial caliper 12"
• 103309 – Tool holder WCJ 50×160
• 103308 – Tool holder WCJ 40×160
• 103310 – Cut-off insert holder WCA-A3a
• 103192 – Quick-change tool holder heads WC

Specifications

• Manufacturer: Knuth
• SKU: 320564
• Shipping Method: Flatbed
• Weight: 5,414 lb
• Dimensions: 117 × 51 × 63 in
• Country of Origin: China
