Knuth 14HP Vertical Milling Machine Center X.Mill T 1000 FA with Fanuc Control 181438

Knuth 14HP Vertical Milling Machine Center X.Mill T 1000 FA with Fanuc Control 181438 is a Knuth product in the Milling Machines collection.

Product Details

• Motor rating main drive: 14.8 HP
• Table load capacity: 1,760 lbs
• Number of T-slots: 5 positions
• Rapid feed X-, Y-, Z-axis: 1.417 in/min
• Description
• The X.mill T series is the latest generation of Knuth’s vertical machining centers. Here the user decides which CNC control fits best into their machine portfolio. With either Heidenhain, Siemens, or Fanuc controls, this series offers an outstanding price-performance ratio. A wide range of accessories enables you to adapt them to your specific requirements. By using the latest FEM analysis software, Knuth was also able to achieve an outstanding rigidity of the machine frame in this machine class.
• Features
• The new X.mill series is ideally suited for streamlined and cost effective series production
• The entire series is available with either a Siemens, Fanuc, or Heidenhain control, so users can select the optimum control for their needs
• Optimized frame design using FEM analysis
• Extra wide Y-shaped column for increased rigidity
• Ø32mm C3 preloaded ball screws for high accuracy
• High customization and automation possibilities
• Machine Design

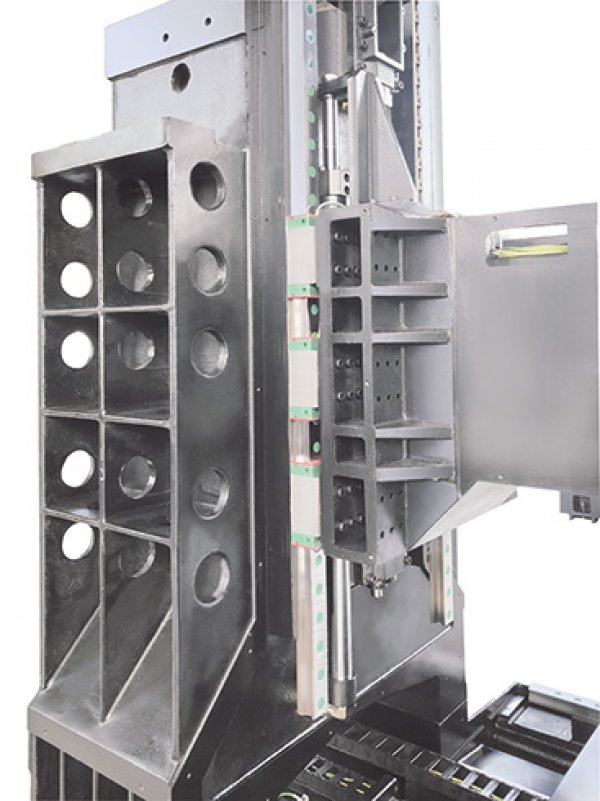

• The X.mill series machine frame was developed using the most advanced FEM analysis software on the market
• The thorough analysis of the entire machine bed construction and wide column base resulted in a design that is optimized for all load conditions
• All axes move on premium, full enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors
• Spindle
• The main spindle is supported by multiple bearings to ensure excellent absorption and dissipation of forces during machining
• The advanced design of our spindles ensure low heat accumulation under load
• Large preloaded bearings ensure radial stability during heavy-duty machining operations
• High-temperature lubricants ensure optimum lubrication at any operating temperature and a long tool life
• Tool Changer
• The robust armless 20-station tool changer brings flexibility to everyday production operations
• An optional 30-station tool changer with dual-arm gripper is also available
• Handling
• The totally enclosed workspace features a large door and side doors for easy access, safety, and cleanliness
• Electrical equipment is divided into separate control cabinets for high and low voltage systems, which results in a significant reduction of heat accumulation and noise
• An electronic hand-wheel simplifies machine set-up
• The automatic central lubrication system ensures proper lubrication of all lube points
• Standard Equipment
• Fanuc Oi-MF control
• Shield-type 20-station tool changer ST40
• Screw-type chip conveyor with bucket
• Rigid tapping
• Automatic Power-Off
• Manual coolant spray gun
• Coolant system
• Spindle air system
• Heat exchanger for electric control cabinet
• Fully enclosed work space (without top cover)
• Electronic hand-wheel
• USB port
• Automatic central lubrication
• Work lamp
• 3-color signal lamp
• Operating tools
• Alignment bolts and alignment plates
• Prepared for Renishaw TS27
• Specifications
• Working Area Table load capacity: 1,760 lbs Number of T-slots: 5 positions Spindle nose-to-table surface distance: 6” – 28” Table dimensions: 43” x 22” Spindle center-to-stand distance: 20” T-slot (width x spacing): 0.71” x 3.94”
• Spindle nose-to-table surface distance: 6” – 28”
• Table dimensions: 43” x 22”
• Spindle center-to-stand distance: 20”
• T-slot (width x spacing): 0.71” x 3.94”
• Travels Travel X-axis: 39.4” Travel T-axis: 22” Travel Z-axis: 22”
• Travel X-axis: 39.4”
• Travel T-axis: 22”
• Travel Z-axis: 22”
• Headstock Spindle mount: SK 40 Spindle speed: 10.000 rpm Torque, constant: 47 ft.lb
• Spindle mount: SK 40
• Spindle speed: 10.000 rpm
• Torque, constant: 47 ft.lb
• Rapid Feed Rapid feed X-, Y-, Z-axis: 1.417 in/min
• Feed Work feed X/Y/Z axis-height: 33 fpm x 33 fpm x 33 fpm
• Work feed X/Y/Z axis-height: 33 fpm x 33 fpm x 33 fpm
• Tool Head Number of tool station: 20 positions Tool weight max: 18 lbs Tool-change time tool/tool: 10 sec Tool Ø: 100”
• Number of tool station: 20 positions
• Tool weight max: 18 lbs
• Tool-change time tool/tool: 10 sec
• Tool Ø: 100”
• Accuracies Repeatabilities: ± 0.00012” Positioning accuracies: ± 0.0002”
• Repeatabilities: ± 0.00012”
• Positioning accuracies: ± 0.0002”
• Drive Capacity Motor rating main drive: 14.8 HP Total power consumption: 15kVA – 20kVA Motor rating X-axis: 2.4 HP Motor rating Y-axis: 2.4 HP Motor rating Z-axis: 4.02 HP
• Total power consumption: 15kVA – 20kVA
• Motor rating X-axis: 2.4 HP
• Motor rating Y-axis: 2.4 HP
• Motor rating Z-axis: 4.02 HP
• Control Software Control: Fanuc
• Software Control: Fanuc
• Measures and Weights Overall dimensions (LxWxH): 104” x 87” x 107” Weight: 10,120 lbs
• Overall dimensions (LxWxH): 104” x 87” x 107”
• Weight: 10,120 lbs
• Easy programming and operation, short learning curve
• User-friendly graphics display for visual verification of parts programs
• Use of existing programs without reprogramming requirements
• High-speed machining and standard nano-interpolation
• Fixed cycles and custom macro B for simplified parts programming
• State-of-the-Art functionality, like jerk limitation, nano smoothing, and AI Contour Control II – compatible with previous version serious O and series Oi models A, B, and C
• Series Oi Model F are the successor models of the Series O and Series Oi, which are the most popular CNC controls worldwide with over 700,000 installations
• With up to 4 simultaneously controlled axes, the CNC Series Oi provides the best controls for highly demanding machine tools
• Optional Accessories
• 252819 – Top cover for X.Mill/Vector 650-1000
• 252888 – Upgrade Fanuc Oi-MF (package 5 to package 1)
• 252889 – Manual guide Oi
• 253019 – Connection for 4th axis (wiring only and axis chart)
• 253369 – Coolant flow through spindle, 30 bar, with filter system
• 253383 – Oil Skimmer
• 253384 – Chip flush-out system
• 253386 – Renishaw TS27R tool measuring system
• 253436 – Dual-arm gripper with 24 tool stations, BT40
• 253440 – Spindle oil cooler
• 253598 – Renishaw OTS wireless tool setting (OTS)
• 253610 – Spindle speed upgrade to 12,000 rpm direct drive without CTS
• 253611 – Upgrade ATC from 24 to 30 tools (BT40) for X.Mill T
• 253613 – Prepared for Renishaw OMP40
• 253617 – Manual tailstock ST-125T for rotary table
• 253618 – Manual tailstock ST-170T for rotary table
• 253620 – Manual tailstock ST-255T for rotary table
• 253621 – Manual chuck, 5”, for rotary table
• 253622 – Manual chuck, 6”, for rotary table
• 253624 – Manual chuck, 9”, for rotary table
• 253625 – Reinforced machined base with 800mm Z axis travel
• 253626 – Preparation for CTS setup
• 253627 – Coolant flow through spindle, 290 psi, with filter system
• 253631 – Manual Guide I (requires Fanuc Package 1)
• 253639 – 4.92” diameter 4th axis (4th axis, servo motor, driver, air brakes)(Fa)
• 253640 – 6.69” diameter 4th axis (4th axis, servo motor, driver, air brakes)(Fa)

Specifications

• Manufacturer: Knuth
• SKU: 181438
• Shipping Method: Flatbed
• Weight: 11,000 lb
• Dimensions: 120 × 100 × 125 in
