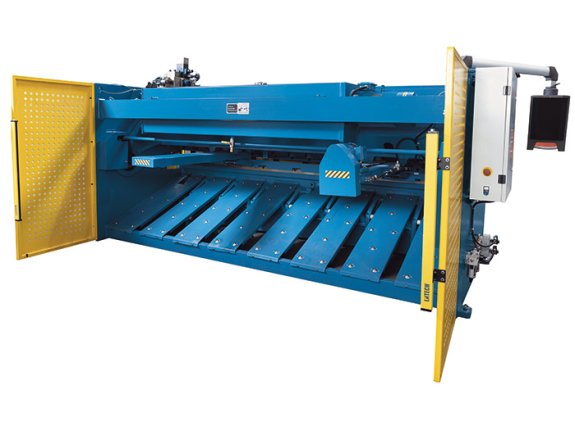

Knuth 20HP 126” KHT 3010 M NC Hydraulic Swing-Beam Shear 184214

Knuth 20HP 126” KHT 3010 M NC Hydraulic Swing-Beam Shear 184214 is a Knuth product in the Shears collection.

Product Details

• Motor rating main drive: 20.1 HP
• Working length: 126”
• Plate thickness (max): 0.39”
• Hold-down capacity: 34.1 ton
• Description
• The models from the KHT M NC series are built under a swing-beam design. The cutting bar is guided in a pivot bearing anchored in the machine body making cuts very straight without the risk of upper and lower blades jamming. The robust back gauge precisely positioned via the ESTUN 21 NC controller.
• Features
• The hydraulic Swing-Beam Shears with NC-controlled back gauge combines quality, reliability, and easy handling
• ESTUN 21 NC control
• Motorized back gauge
• Pneum. sheet hold-up device
• Cutter for stainless steel
• Adjustable angular stop
• Machine Frame
• The machine frame is made of a stress-relieved steel weldment and features a swing-beam design
• With this design, the cutter beam travels in a swinging movement so that the distance between upper and lower knife will be restored automatically after each cut
• The advantages of this design are low-torsion cuts, a more reliable release of cut parts, extended knife life, and easy kerf adjustments
• Material Support
• The large work table features roller balls and a rigid adjustable angular stop for easy handling and safe plate alignment
• Long, sturdy support arms safely hold large plates
• Hydraulics
• The entire hydraulic system is reliable, low-maintenance and easy to service
• During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
• Back Gauge
• The back gauge system is very robust and perfectly suited for rough production environments
• Preloaded ball screws are mounted in a protective enclosure
• Equipment
• The user-friendly ESTUN 21 NC control positions the back gauge precisely both in single cuts and within program runs
• The machine is operated via a mobile foot pedal with emergency stop switch
• The exact cut line is visible on the metal sheet as a shadow graph
• Upper and lower knife suitable for stainless steel
• Safety
• The continuous finger guard can be folded down to 39.4” for a better view on the cut line
• Safety concept based on the latest CE standards
• The rear-mounted light barrier system protects the work area
• Standard Equipment
• NC control Estun E21S
• Pneumatic sheet support
• Motorized back-gauge adjustment
• Shadow light cutting line
• Support arms
• Foot pedal with emergency stop switch
• Manual kerf adjustment
• Full length finger guard
• Safety system for back working area
• Operating tools
• Operator instructions
• Knife for stainless steel sheets
• Easy positioning control for plate shear back gauges
• Positioning on one side or optionally on two sides (eliminates spindle backlash)
• Retracting function during cutting process
• Automatic return to home position
• Easy parameter backup and restoration
• Quick homing to programmed positions
• Programming of up to 40 programs and 25 positioning steps
• Power-off protection
• Specifications
• Working Area Plate thickness (max): 0.39” Working length: 126” Throat: 6” Cutting angle: 1.5° Strokes per minute: 8 H/min Hold-down: 13 positions Hold-down capacity: 34.1 ton Table size (LxWxH): 139” x 20” x 31”
• Throat: 6”
• Cutting angle: 1.5°
• Strokes per minute: 8 H/min
• Hold-down: 13 positions
• Table size (LxWxH): 139” x 20” x 31”
• Back Gauge Rear stop: 39” Feed speed X-axis: 89.8”/min
• Rear stop: 39”
• Feed speed X-axis: 89.8”/min
• Front Support Arms Number of support arms: 3 positions Length of support arms: 39”
• Number of support arms: 3 positions
• Length of support arms: 39”
• Cutting Capacities Plate thickness – mild steel (max): 0.394” Plate thickness – mild steel (min): 0.039” Plate thickness – stainless steel (max): 0.236” Plate thickness – stainless steel (min): 0.039”
• Plate thickness – mild steel (max): 0.394”
• Plate thickness – mild steel (min): 0.039”
• Plate thickness – stainless steel (max): 0.236”
• Plate thickness – stainless steel (min): 0.039”
• Drive Capacity Motor rating main drive: 20.1 HP Hydraulic tank volume: 66 gal
• Hydraulic tank volume: 66 gal
• Measures and Weights Overall dimensions (LxWxH): 152” x 73” x 70” Weight: 18,700 lbs
• Overall dimensions (LxWxH): 152” x 73” x 70”
• Weight: 18,700 lbs
• Optional Accessories
• 253963 – Hydraulic oil cooler
• 253975 – Automatic central lubrication
• 253969 – Additional blade set

Specifications

• Manufacturer: Knuth
• SKU: 184214
• Shipping Method: Flatbed
• Weight: 19,000 lb
• Dimensions: 152 × 73 × 70 in
