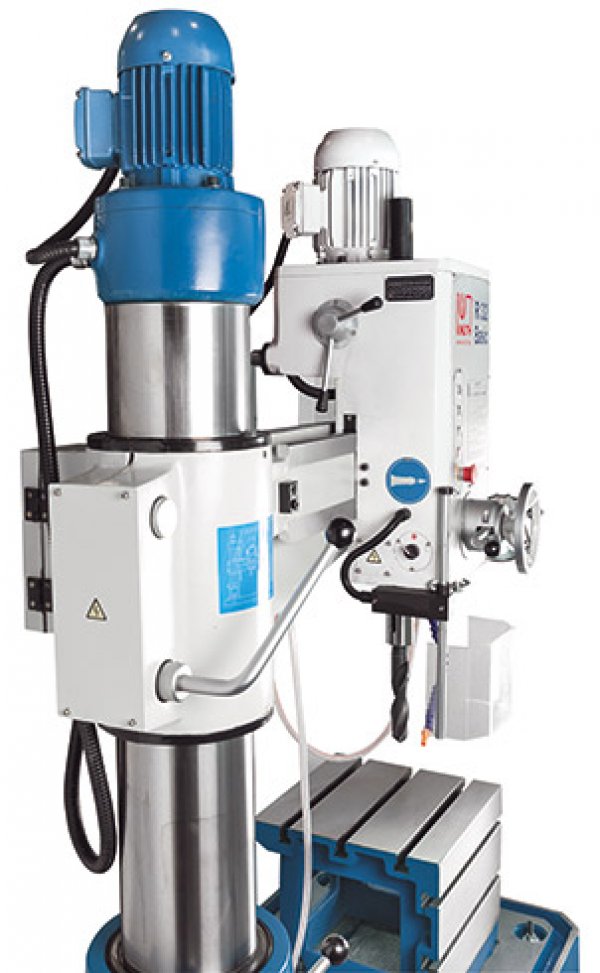

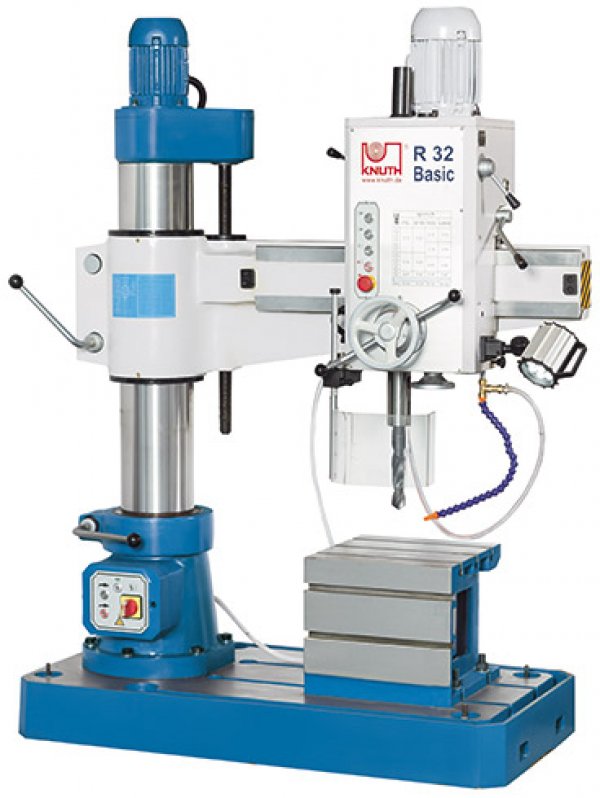

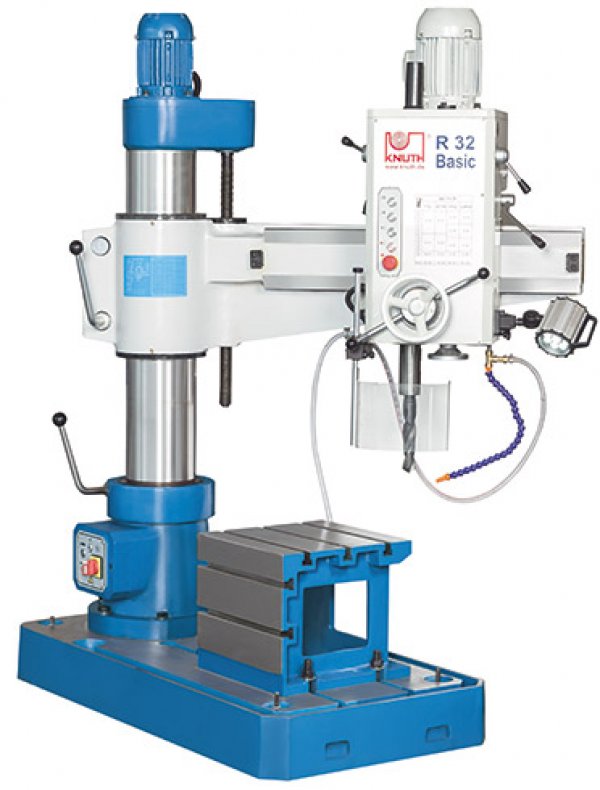

Knuth 2HP 1.26” Drilling Capacity R 32 Basic Radial Drill Press 101522

Knuth 2HP 1.26” Drilling Capacity R 32 Basic Radial Drill Press 101522 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling Capacity: 1.26”
• Column Diameter: 8”
• Throat: 13” – 32”
• Spindle nose-to-table surface distance: 13” – 34”
• Description
• As an entry-level model, this radial drilling machine offers 32 mm (1.26in) drilling capacity, 820 mm (32.28in) throat and 860 mm (33.86in) processing height. The model belongs to Knuth’s R Basic series of classic radial drilling machines with manually switched gears and manual clamps. With their heavy weight they guarantee the best stability with an excellent price-performance ratio. Due to the easy handling of large workpieces and the robust design, we recommend these models to use in workshops and steel construction, among other applications. A cube table is part of the standard equipment for smaller workpieces.
• Features
• For drilling, reaming, and tapping
• Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
• Precision-ground gears for quiet operation
• Practical layout of electrical and mechanical controls at the headstock for easy operation
• Motorized arm height adjustment
• The spindle is made of high-quality hardened steel of consistent accuracy
• Mechanical clamping for head, column, and arm
• Easy positioning on all axes
• Standard Equipment
• Coolant System
• Cube Table
• Halogen Lights
• Specifications
• Working Area Drilling Capacity: 1.26” Column Diameter: 8” Throat: 13” – 32” Spindle nose-to-table surface distance: 13” – 34” Cube Table Dimensions-height: 16” x 16” x 14” Machine Table Dimensions-height: 54” x 28” x 6” Quill Stroke: 9”
• Cube Table Dimensions-height: 16” x 16” x 14”
• Machine Table Dimensions-height: 54” x 28” x 6”
• Quill Stroke: 9”
• Headstock Spindle Mount: MT 4 Speed Range: 75 rpm – 1.220 rpm
• Spindle Mount: MT 4
• Speed Range: 75 rpm – 1.220 rpm
• Feed Feeds: 0 in/R – 0.01 in/R
• Feeds: 0 in/R – 0.01 in/R
• Drive Capacity Motor Rating Main Drive: 2 HP
• Motor Rating Main Drive: 2 HP
• Measures and Weights Overall Dimensions (LxWxH): 56” x 29” x 75” Weight: 2,596 lbs
• Overall Dimensions (LxWxH): 56” x 29” x 75”
• Weight: 2,596 lbs
• Optional Accessories
• 103184 – Coolant Concentrate 5 ltr
• 103402 – Universal Facing / Lathe / Bore Head ADA / MT 4
• 103820 – Reductions Sleeve MT 4/1
• 103825 – Reduction Sleeve MT 4/2
• 103830 – Reduction Sleeve MT 4/3
• 104670 – Extensions Sleeve MT 4/5
• 104695 – Taper Drift MT 4/5
• 104745 – Tool Holder Bit MT4 / B16
• 104750 – Tool Holder Bit MT4 / B18
• 104765 – Keyless Drill Chuck 0.04-0.05in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63in B 18
• 106009 – Compound Sliding Table 28.7×8.27”
• 106035 – Tapping Attachment M5 – M12 (MT3 + MT4)
• 106037 – Tapping Attachment M8 – M20 (MT3 + MT 4)
• 107615 – Quarter Circle Cutter – set 0.08-0.47in
• 107617 – Quarter Circle Cutter – set 0.24-0.79in
• 108631 – Lathe Bore Head with Boring Bar Set 2 in 9 pcs
• 108633 – Lathe Bore Head with Boring Bar Set 3 in 12 pcs
• 108641 – Mounting Shank for Reaming Head 1.97/2.95”, MT4
• 108655 – Combo Flat Counter Sink
• 108665 – Counter-Sink Set 90°
• 123040 – Power Worker Metal Cutter
• 125006 – PBS 140 Machine Vise
• 125007 – PBS 200 Machine Vise
• 125031 – UMS 140 Machine Vise
• 125032 – UMS 200 Machine Vise
• 129340 – Swivel Table ST 300
• 129345 – Swivel Table ST 380
• 104594 -Accessory Set for Drilling MT4, 8pc

Specifications

• Manufacturer: Knuth
• SKU: 101522
• Shipping Method: LTL Freight
• Weight: 3,135 lb
• Dimensions: 55 × 28 × 74 in
• Country of Origin: Germany
