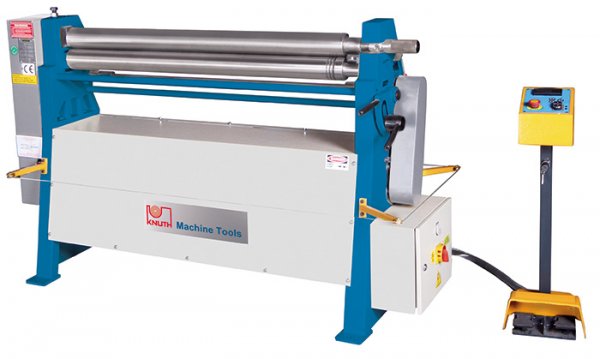

Knuth 2HP 61” KRM AT 15/2.0 Plate Rolling Machine 131972
$10,632.56Current price is: $10,632.56.
- Plate Thickness (max.): 0.08”
- Working Length: 61”
- Roll Diameter: 4”
- Roller Speed: 19.62 fpm
Knuth 2HP 61” KRM AT 15/2.0 Plate Rolling Machine 131972 is a Knuth product in the Plate Roll collection.
Product Details
- Plate Thickness (max.): 0.08”
- Working Length: 61”
- Roll Diameter: 4”
- Roller Speed: 19.62 fpm
- Description
- All machines in this series feature asymmetrical rolls. This geometry provides optimum traction even with thin metal sheets in the stretch-bending phase for high-precision bending. The rear roll is fed manually. The upper roll swivels outward for easy removal of tube-shaped bent workpieces.
- Features
- Asymmetrical structure
- Main motor with brakes
- Hardened rollers with wire insertion grooves
- Conical bender
- 3-roller roll bender with asymmetrically positioned rollers
- Rigid machine frame made of ductile cast-iron
- Hardened rollers, suitable for stainless steel
- Main motor with brake system for exact bending
- Pull-out top roller with eccentric lock for easy workpiece removal
- Bottom and rear rollers include wire insertion grooves (standard equipment)
- Conical bending feature is included in standard equipment
- Manual feed or rear roller
- Mobile control panel with foot switch for left/right rotation
- Standard Equipment
- Conical bending feature
- Hardened rollers
- Wire insertion groove
- Operator instructions
- Emergency stop lanyard
- Separate control panel with foot switch
- Side enclosure
- Specifications
- Working Area Plate Thickness (max.): 0.08” Stainless Steel: 0.071” Conical Bending: 0.071” Working Length: 61” Roll Diameter: 4” Roller Speed: 19.62 fpm Wire Grooves Diameter: 4/6/9”
- Plate Thickness (max.): 0.08” Stainless Steel: 0.071” Conical Bending: 0.071”
- Stainless Steel: 0.071”
- Conical Bending: 0.071”
- Wire Grooves Diameter: 4/6/9”
- Drive Capacity Motor Rating Main Drive: 2 HP
- Motor Rating Main Drive: 2 HP
- Measures and Weights Overall Dimensions (L x W x H): 84” x 28” x 48” Weight: 1,276 lbs.
- Overall Dimensions (L x W x H): 84” x 28” x 48”
- Weight: 1,276 lbs.
- Options
- 253979 – Digital readout for rear roller adjustment for KRM AT
- 253980 – Motorized rear roller adjustment for KRM AT
Specifications
- Manufacturer: Knuth
- SKU: 131972
- Shipping Method: Flatbed
- Weight: 1,600 lb
- Dimensions: 89 × 45 × 52 in
- Country of Origin: Turkey
| Weight | 1600.0 lbs |
|---|---|
| Dimensions | 89.0 × 45.0 × 52.0 in |
| Brand | Knuth |
