Knuth 3HP 0.98″ VHF 1.1 Vertical Universal Milling Machine 362665

Knuth 3HP 0.98″ VHF 1.1 Vertical Universal Milling Machine 362665 is a Knuth product in the Milling Machines collection.

Product Details

• Table set up area: 39” x 9”
• Table load capacity (max.): 330 lbs.
• Motor rating horizontal spindle: 3 Hp
• Motor rating vertical spindle: 2 Hp
• Description
• The versatile universal milling machine of the VHF series is equipped with a horizontal spindle, a swiveling vertical milling head, and a large clamping table. Spindle speed and feed on the X-axis are infinitely variable. With its extensive equipment, this model is ideal for a wide range of applications in training departments, repair, and model-making workshops.
• Features
• Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast iron
• Easy to shift back-gearing via 2-step gears integrated into the vertical cutter head, plus variable frequency for high torque at the main spindle

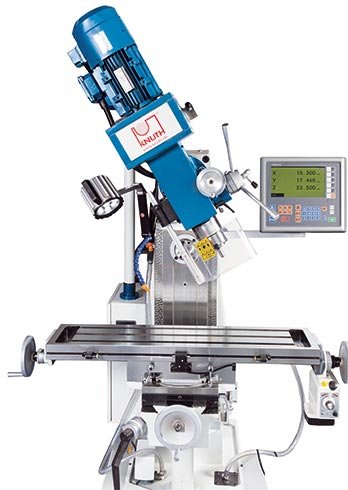

• Entire cutter head swivels ± 45°, quill movement via capstan handle, or quill micro-feed via hand-wheel
• Horizontal spindle features a quiet, low-maintenance v-belt drive

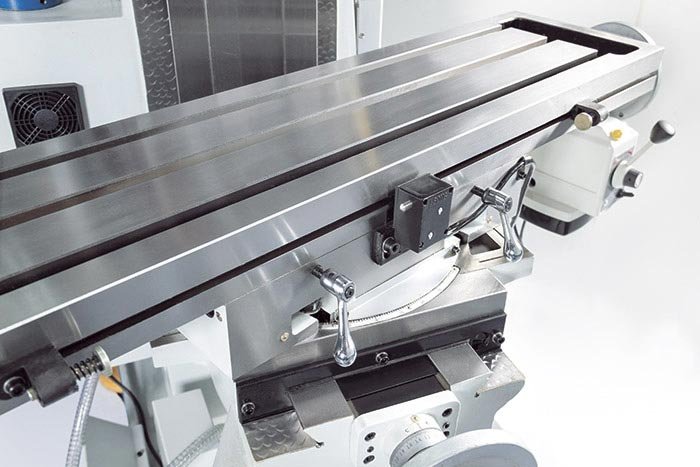

• Large setup table swivels horizontally
• Proven TV 1000 on X axis allows automatic advance and rapid feed of table, including infinitely variable speed and adjustable limit stops
• Coolant system and chip tray are included
• Standard Equipment
• 3-axis position indicator
• 2 long cutter arbors (Ø7/8", Ø1")
• Drill chuck 5/8"
• Reducing sleeve ISO 40 / MT3 and ISO 40 / MT2
• Coolant system
• Work lamp
• Operating tools
• Specifications
• Working Area Drilling capacity: 0.98” Table set up area: 39” x 9” Table load capacity (max.): 330 lbs. Milling diameter in steel (max.): 0.7”
• Drilling capacity: 0.98”
• Milling diameter in steel (max.): 0.7”
• Travels Travel X-axis: 21.1” Travel Y-axis: 6” Travel Z-axis: 13”
• Travel X-axis: 21.1”
• Travel Y-axis: 6”
• Travel Z-axis: 13”
• Vertical Milling Head Spindle speed (vertical): 100 rpm – 2000 rpm Throat: 8” – 28” Spindle mount: ISO 40 Quill stroke: 5” Spindle nose-to-table surface distance: 3” – 15”
• Spindle speed (vertical): 100 rpm – 2000 rpm
• Throat: 8” – 28”
• Spindle mount: ISO 40
• Quill stroke: 5”
• Spindle nose-to-table surface distance: 3” – 15”
• Horizontal Milling Head Spindle speed (horizontal): 60 rpm – 1350 rpm Horizontal spindle-to-table surface distance: 0” – 12”
• Spindle speed (horizontal): 60 rpm – 1350 rpm
• Horizontal spindle-to-table surface distance: 0” – 12”
• Drive Capacity Motor rating horizontal spindle: 3 Hp Motor rating vertical spindle: 2 Hp
• Measures and Weights Overall dimensions (length x width x height): 55” x 49” x 85” Weight: 2,200 lbs.
• Overall dimensions (length x width x height): 55” x 49” x 85”
• Weight: 2,200 lbs.
• Options
• 103184 – Coolant Concentrate 5 Ltr.
• 103330 – Pivoted Mounts LK 3
• 103404 – Universal Facing / Lathe Bore Head ADA / SK40
• 103720 – Adapter SK 40 / MT 2
• 103900 – Shell End Milling Arbor Ø22 SK 40
• 103730 – Adapter SK 40 / MT 3
• 103740 – Adapter SK 40 / MT 4
• 103750 – Reduction Sleeve SK 40 / SK 30
• 103895 – Shell End Milling Arbor Ø16 SK 40
• 103905 – Shell End Milling Arbor Ø27 SK 40
• 103910 – Shell End Milling Arbor Ø32 SK 40
• 103915 – Shell End Milling Arbor Ø40 SK 40
• 104596 – Accessory-Set ISO 40 5-pc.
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 104780 – Drill Chuck Arbors ISO 40 / B 16
• 104781 – Drill Chuck Arbors ISO 40 / B 18
• 104918 – Machine vise with pull-down system NZM 125
• 104955 – MS 125 Machine Vise
• 105295 – Clamping Tool Set De Luxe 14/M12
• 105340 – Step of Step Blocks
• 105355 – Stud Bolt Set, and T-Slot Nuts 14/M12
• 105790 – Swivel Hold-Down Clamp Set 100/M12
• 106052 – ER 32 Collet Set 6 pcs.
• 106056 – ER 32 Collet Chuck / Mount ISO 40
• 106062 – ER 40 Collet Chuck / Mount ISO 40
• 106075 – ER 40 Collet Set 15 pcs.
• 106801 – Milling Chuck WELDON ISO 40 / Ø 0.24 in
• 106802 – Milling Chuck WELDON ISO 40 / Ø 0.3 in
• 106803 – Milling Chuck WELDON ISO 40 / Ø 0.4 in
• 106806 – Milling Chuck WELDON ISO 40 / Ø 0.78 in
• 106807 – Milling Chuck WELDON ISO 40 / Ø 1 in
• 106808 – Milling Chuck WELDON ISO 40 / Ø 1.26 in
• 107800 – Indexable Insert End Mills Set 0.98 in
• 106805 – Milling Chuck WELDON ISO 40 / Ø 0.63 in
• 108400 – Roughing End Mill Cutter 40
• 108401 – Roughing End Mill Cutter 50
• 108402 – Roughing End Mill Cutter 63
• 108403 – Roughing End Mill Cutter 80
• 108445 – Roughing Shank Cutter 10 pcs.
• 108631 – Lathe Bore Head with Boring Bar Set 2 in 9 pcs.
• 108633 – Lathe Bore Head with Boring Bar Set 3 in 12 pcs.
• 108637 – Mounting Shaft ISO 40
• 108930 – Assembly Stand
• 110953 – Dividing head HT
• 110960 – Divider ST 130
• 110970 – Optional Accessory Set / ST 130
• 125012 – PMS 100
• 125024 – HS 125 Hydraulic Machine Vise
• 125805 – INDEX-feature / RT 160-320
• 125820 – Tailstock / RT 200/250
• 125835 – Rotary Table RT 200
• 128961 – Corrugated Parallels 1-1.5 in
• 128960 – Corrugated Parallel Parts 0.4-0.9 in
• 129335 – Swivel Table ST 250
