Knuth 44 Ton AHK M Series 1540 Press Brake with NC Control 182641

Knuth 44 Ton AHK M Series 1540 Press Brake with NC Control 182641 is a Knuth product in the Press Brakes collection.

Product Details

• Throat: 13”
• Pressure force: 44 t
• Stroke: 6.3”
• Brake length: 61”
• Description

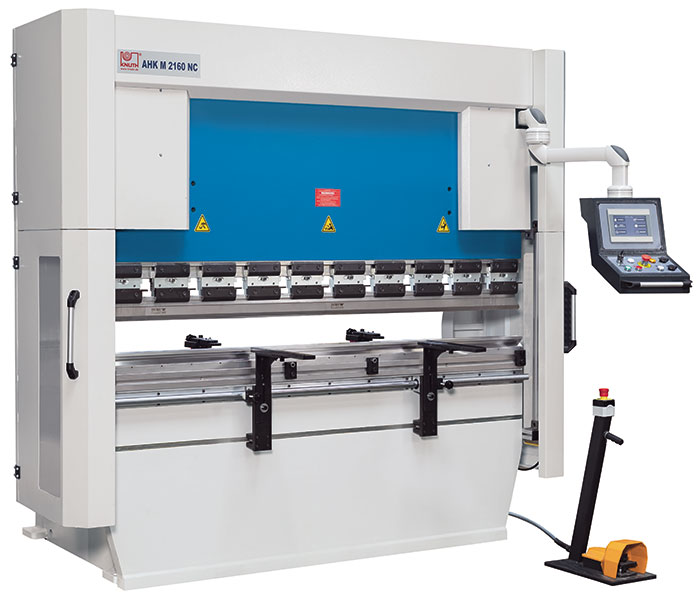

• The AHK M series was developed as a modern, inexpensive NC alternative to CNC press brakes. Many operators are familiar working without CNC programming, and this model series combines proven technology with modern safety standards. The back gauge in the X- and R-axes and the depth gauge in the cylinders can be positioned directly using the touchscreen or bending sequences can be stored in the NC control for automatic operation. The series is convincing in the production of workpieces with recurring materials and contours.
• Features
• Machine Frame and Male Die The machine frame is made of a high-precision, stress-relieved steel weldment and features a rigid bending bar and hydraulic cylinders on both sides A large throat and narrow table ensure plenty of free space to accommodate complex bending sequences
• The machine frame is made of a high-precision, stress-relieved steel weldment and features a rigid bending bar and hydraulic cylinders on both sides
• A large throat and narrow table ensure plenty of free space to accommodate complex bending sequences
• Hydraulics The hydraulic unit with reservoir is placed in the top part of the machine frame to save space and add to the rigidity of the construction Precise upper beam positioning is ensured by a torsion shaft that connects the depth stops of both cylinders
• The hydraulic unit with reservoir is placed in the top part of the machine frame to save space and add to the rigidity of the construction
• Precise upper beam positioning is ensured by a torsion shaft that connects the depth stops of both cylinders
• Front Support Arms Each support arm can be adjusted in height and is extremely sturdy A stop ridge on the supporting surface helps with workpiece alignment
• Each support arm can be adjusted in height and is extremely sturdy
• A stop ridge on the supporting surface helps with workpiece alignment
• Bending Tools Promecam tool mounts to accommodate an extensive selection of bending tools Manual quick-action clamping system for tool mount shortens tool changing times With 4 bending dies the die can handle a wide spectrum of workpieces
• Promecam tool mounts to accommodate an extensive selection of bending tools
• Manual quick-action clamping system for tool mount shortens tool changing times
• With 4 bending dies the die can handle a wide spectrum of workpieces
• Safety and Productivity Safety concept based on the latest CE standards Light curtains around the work area provide reliable protection
• Safety concept based on the latest CE standards
• Light curtains around the work area provide reliable protection

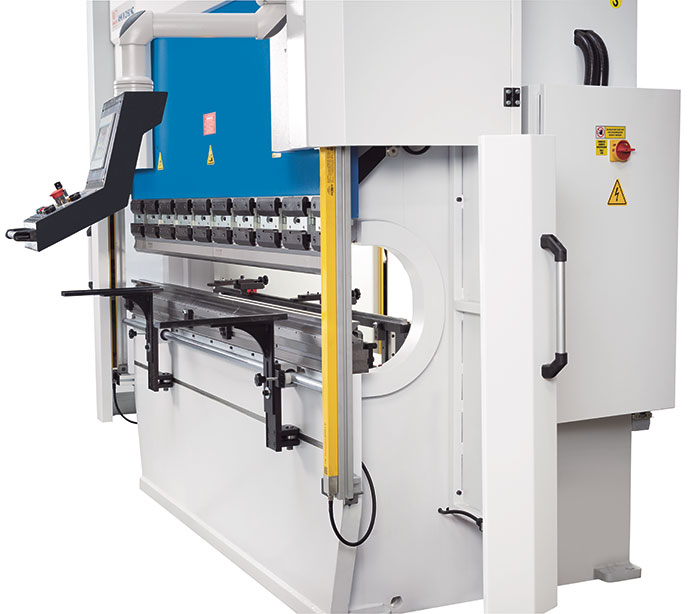

• Control All functions are input and retrieved directly at the touchscreen In manual mode, all axes can be positioned via motorized motion and the set values are shown on the display In semi-automatic mode, the values entered by the user are directly selected In auto. mode, the programmed bending sequence is positioned automatically Each storage area holds 500 data sets, and programs can be stored externally and re-imported The axis position is maintained when the display is turned off In addition to a USB port, the machine also features a network port at the control panel
• All functions are input and retrieved directly at the touchscreen
• In manual mode, all axes can be positioned via motorized motion and the set values are shown on the display
• In semi-automatic mode, the values entered by the user are directly selected
• In auto. mode, the programmed bending sequence is positioned automatically
• Each storage area holds 500 data sets, and programs can be stored externally and re-imported
• The axis position is maintained when the display is turned off
• In addition to a USB port, the machine also features a network port at the control panel

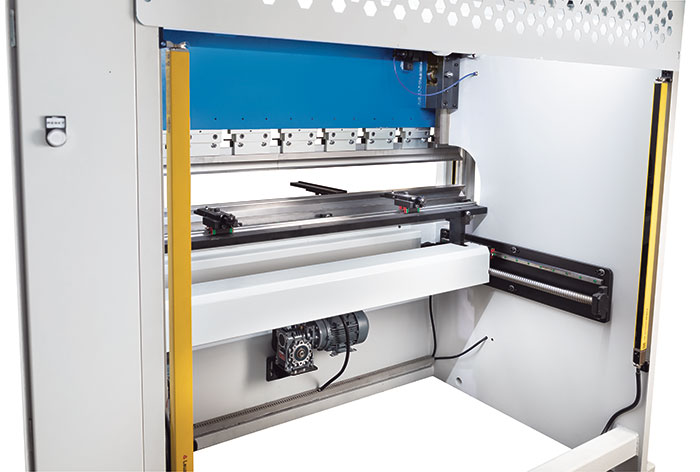

• Back Gauge The excellent stability of the NC-controlled back gauge is an important factor for achieving excellent machining precision Linear guides and large preloaded ball screws are low maintenance and extremely sturdy The motorized R-axis simplifies the precise stop-height set-up Lateral positioning of back gauge fingers on dual, smooth-running linear guides
• The excellent stability of the NC-controlled back gauge is an important factor for achieving excellent machining precision
• Linear guides and large preloaded ball screws are low maintenance and extremely sturdy
• The motorized R-axis simplifies the precise stop-height set-up
• Lateral positioning of back gauge fingers on dual, smooth-running linear guides
• Standard Equipment
• Weintek 7'' NC-control
• Motorized backgauge X-axis
• Motorized backgauge R-axis
• Upper tool H European style H = 2.6" (segmented)
• European type bottom tool 4V
• Front support arms (2 ea)
• Light curtain
• Foot pedal with E-stop button
• Operator instructions
• Specifications
• Working Area Throat: 13” Pressure force: 44 t Stroke: 6.3” Brake length: 61” Distance between columns: 50”
• Distance between columns: 50”
• Travels Travel in X-axis: 24”
• Travel in X-axis: 24”
• Feed Bending speed: 0.39”/s Rapid feed: 4”/s
• Bending speed: 0.39”/s
• Rapid feed: 4”/s
• Drive Capacity Motor rating main drive: 7.4 Hp Motor rating X-axis: 1 Hp Motor rating R-axis: 0.3 Hp
• Motor rating main drive: 7.4 Hp
• Motor rating X-axis: 1 Hp
• Motor rating R-axis: 0.3 Hp
• Measures and Weights Overall dimensions (length x width x height): 67” x 63” x 88” Weight: 7,590 lbs.
• Overall dimensions (length x width x height): 67” x 63” x 88”
• Weight: 7,590 lbs.
• Options
• 253657 – Motorized crowning
• 253659 – Extended backgauge for X-axis (1540 NC / 2160 NC)
• 253660 – Additional backgauge finger (pc) (1540 NC / 2160 NC)

Specifications

• Manufacturer: Knuth
• SKU: 182641
• Shipping Method: LTL Freight
• Weight: 7,790 lb
• Dimensions: 72 × 68 × 93 in
• Country of Origin: Turkey
