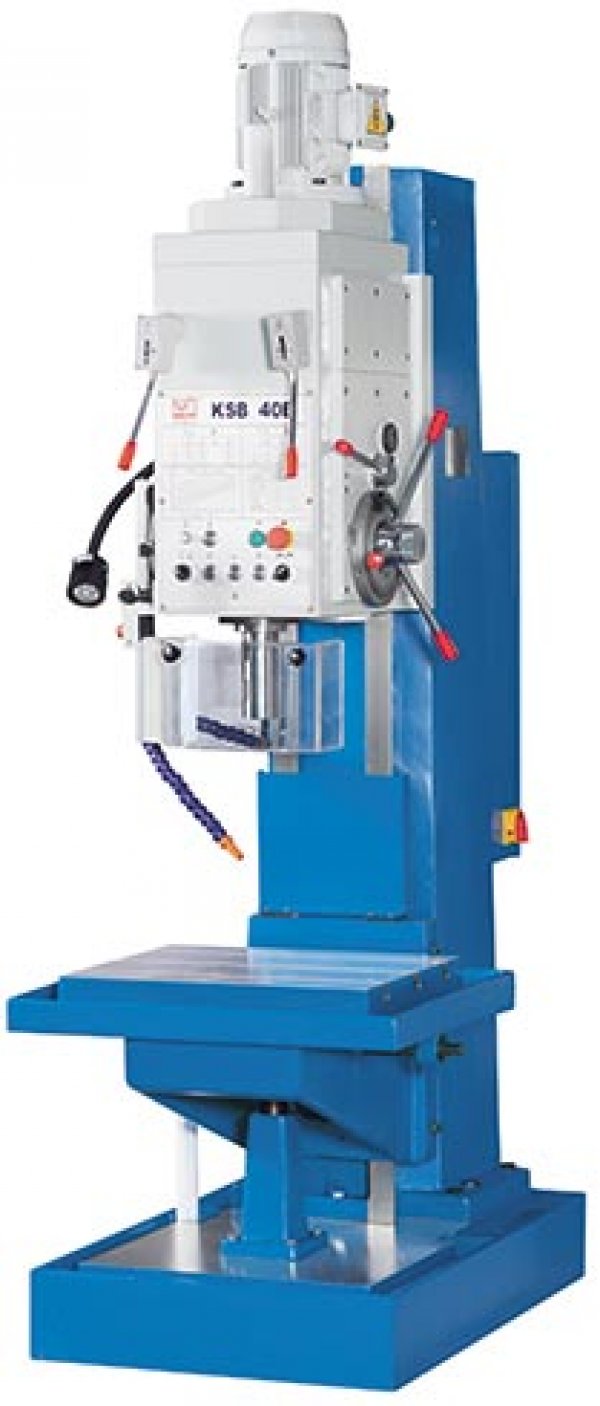

Knuth 4HP 1.57″ KSB 40B Vertical Box Column Drill Press 101693

Knuth 4HP 1.57″ KSB 40B Vertical Box Column Drill Press 101693 is a Knuth product in the Drill Presses collection.

Product Details

• Drill Capacity: 1.57”
• Quill Stroke: 10”
• Table: 19” x 22”
• Spindle Speed: 31.5 rpm – 1,400 rpm
• Description
• The box drilling machines of the KSB series are the heavyweights among column drilling machines. Their unwavering stability enables superior performance in demanding applications. Nothing vibrates here. Nothing bends here. Finely stepped spindle and feed gears provide the correct machining parameters for large bores. The table and head can be adjusted on the column and cannot be swiveled, which provides an additional advantage in terms of stability.
• Features
• Extremely rigid box-column design provides high load capacity, and is torsion-proof and rigid

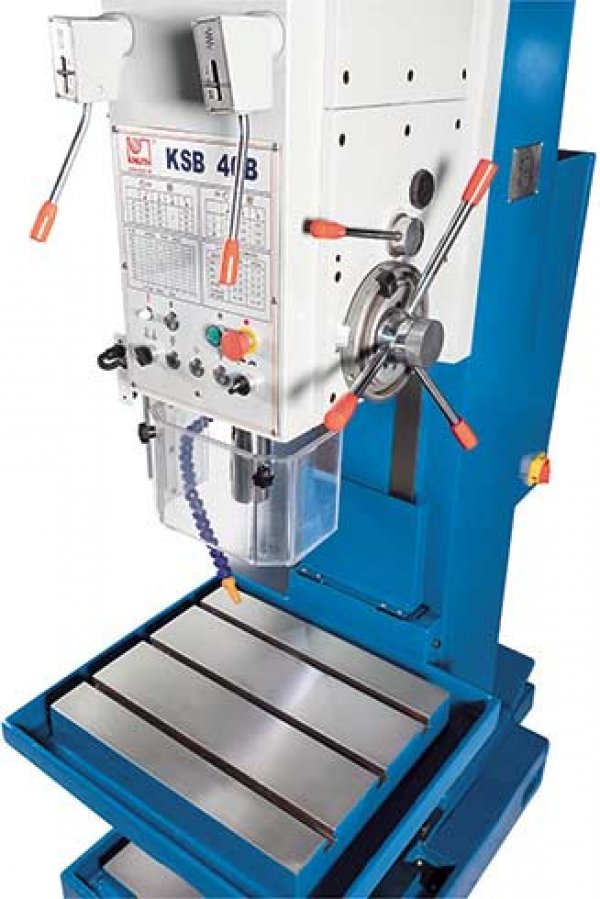

• Table and drill head can be moved individually for an optimum machining height
• 9-step feed and speed gears, with oil-bath lubrication
• High torque across the entire speed range

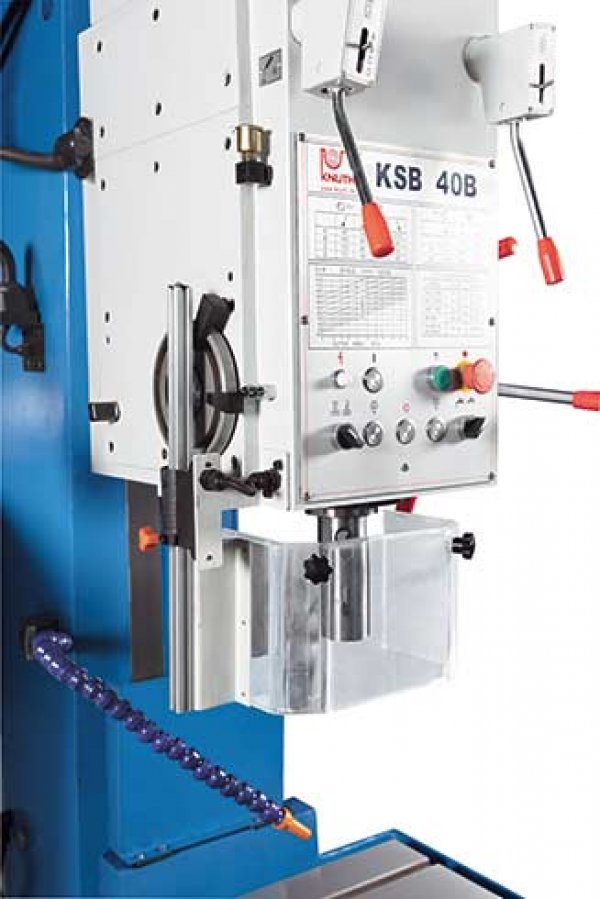

• Thread-cutting unit automatically reverses upon reaching the preset depth
• Powerful automatic feed
• Standard Equipment
• Coolant system
• Tapping unit
• LED work lamp
• Operating tools
• Operator instructions
• Specifications
• Working Area Drilling capacity: 1.57” Table set up area: 19” x 22” Number of T-slots: 3 positions T-slots, width: 0.7” Throat: 13” Spindle nose-to-table surface distance: 26” Quill stroke: 10” Table stroke: 12” Vertical head travel: 8” Feed force, axial (max.): 16 kN Feed Z-axis-stages: 9 Feed Z-axis: 0.0022in/R – 0.0709 in/R
• Drilling capacity: 1.57”
• Table set up area: 19” x 22”
• Number of T-slots: 3 positions
• T-slots, width: 0.7”
• Throat: 13”
• Spindle nose-to-table surface distance: 26”
• Table stroke: 12”
• Vertical head travel: 8”
• Feed force, axial (max.): 16 kN
• Feed Z-axis-stages: 9
• Feed Z-axis: 0.0022in/R – 0.0709 in/R
• Headstock Spindle torque (max): 258 ft.lb Spindle mount: MT 4 Spindle speed: 31.5 rpm – 1,400 rpm
• Spindle torque (max): 258 ft.lb
• Spindle mount: MT 4
• Drive Capacity Motor rating main drive: 4HP Motor rating coolant pump: 0.1HP
• Motor rating main drive: 4HP
• Motor rating coolant pump: 0.1HP
• Measures and Weight Overall Dimensions: 41”L x 36”W x 100”H Weight: 2,750 lbs Flow rate: 6.6 gal/min
• Overall Dimensions: 41”L x 36”W x 100”H
• Weight: 2,750 lbs
• Flow rate: 6.6 gal/min
• Optional Equipment
• 110966 – Direct indexing head S 200
• 125840 – Rotary table RT 250
• 129345 – Swivel table ST 380
• 106009 – Compound sliding table 28.7×8.27”
• 125007 – Drill press quick-action machine vise with V-guides PBS 200
• 125032 – UMS 200 machine vise
• 104594 – Accessory set for drilling MT4, 8-piece
• 105305 – Deluxe clamping tool set 18/M16
• 103184 – Coolant concentrate, 5 liter
• 103402 – Universal facing / lathe bore head ADA / MT 4
• 108633 – Lathe bore head with boring bar set 3 in 12 pieces
• 108641 – Mounting shank for reaming head 1.97/2.95”, MT4
• 104745 – Tool holder bit MT4 / B16
• 104750 – Tool holder bit MT4 / B18

Specifications

• Manufacturer: Knuth
• SKU: 101693
• Shipping Method: LTL Freight
• Weight: 2,750 lb
• Dimensions: 41 × 36 × 100 in
• Country of Origin: Germany
