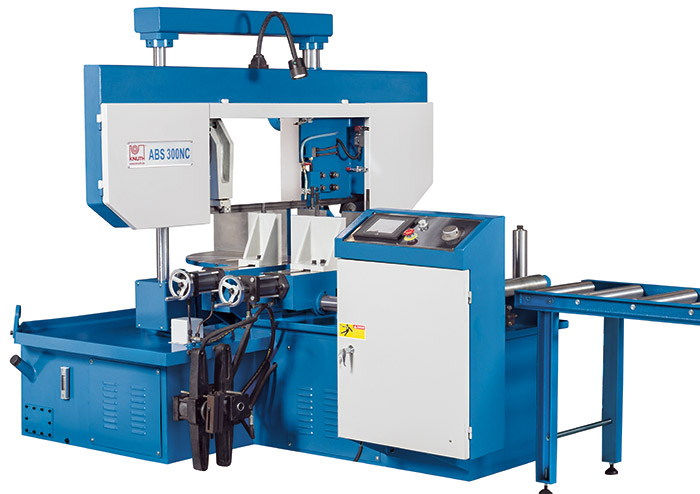

Knuth 4HP ABS 300 NC Fully Automatic Horizontal Band Saw 152880

Knuth 4HP ABS 300 NC Fully Automatic Horizontal Band Saw 152880 is a Knuth product in the Band Saws collection.

Product Details

• Cutting speed: 65.4 fpm – 294.3 fpm
• Feed per single stroke (max.): 15.75”
• Motor rating hydraulic pump: 1 Hp
• Blade dimensions: 174.41” x 1.34” x 0.04”
• Description
• The ABS NC band saw series is a cost-effective, intelligent turnkey solution for sawing in series production. With NC control and simple programming, the ABS NC series meets all the requirements for efficient and flexible production. Cut pipes, profiles, or solid material individually or as a bundle. The dual column construction eliminates vibrations and guarantees consistently high cutting accuracy even after many years of use.
• Features
• Cutting angle settings 0° – 45°
• Robust touch screen control panel
• Automatic workpiece feed
• Torsion-resistant dual-column construction
• Hydraulic saw frame feed via chrome-plated column guide
• Slightly inclined saw frame improves cutting performance and increases the service-life
• Dual hydraulic workpiece clamping
• Infinitely variable cutting speed
• Programmable automatic angle positioner can be set in 1° increments from 0° to 45°
• Hydraulic bundle vise for both vises included with standard equipment
• Precise and stable saw band guides ensure high angular accuracy
• Automatic band breakage control
• Infinitely variable saw blade speed with settings shown on the display
• Standard Equipment
• Siemens PLC control
• Autom. cleaning brush
• Feed roller table (6.5 feet)
• 1 saw blade
• Touch screen monitor
• Automatic parts counter
• Bundle vise
• Chip conveyor
• Coolant system
• Operating tools
• Operator manual
• Reliable Siemens SIMATIC S7-200 SMART PLC with rugged touchscreen input panel
• In Manual Mode, all machine functions can be selected and adjusted via touchscreen
• In Auto Mode, feed distance, cut angle, and number of cuts can be programmed within the respective configurations
• Up to 5 different angle and distance settings can be linked within one automatic program cycle
• The programmable automatic angle positioner can be set in 1° increments from 0°- 45°
• Infinitely adjustable saw blade speed with settings shown on the display
• Individual lengths and miter angles, and the number of required steps can be entered for each cut
• Cut widths can be compensation centrally without considering the programmed workpiece lengths
• All machine parameters can be checked by the operator via user-friendly menus
• Quick fault diagnostics with clear fault description on the display
• Specifications
• Cutting Capacities Cutting capacity 0° Round: 12” Square: 12” Flat (length x width): 14” x 12” Cutting capacity 30° Round: 12” Square: 12” Flat (length x width): 12” x 12” Cutting capacity 45° Round: 9” Square: 9” Flat (length x width): 9” x 12” Cutting speed: 65.4 fpm – 294.3 fpm Feed per single stroke (max.): 15.75”
• Cutting capacity 0° Round: 12” Square: 12” Flat (length x width): 14” x 12”
• Round: 12”
• Square: 12”
• Flat (length x width): 14” x 12”
• Cutting capacity 30° Round: 12” Square: 12” Flat (length x width): 12” x 12”
• Flat (length x width): 12” x 12”
• Cutting capacity 45° Round: 9” Square: 9” Flat (length x width): 9” x 12”
• Round: 9”
• Square: 9”
• Flat (length x width): 9” x 12”
• Cutting Capacity in Semi-Automatic Mode Cutting capacity 60° Round: 9” Square: 9” Flat (length x width): 9” x 12”
• Cutting capacity 60° Round: 9” Square: 9” Flat (length x width): 9” x 12”
• Drive Capacity Motor rating main drive: 4 Hp Motor rating hydraulic pump: 1 Hp Motor rating coolant pump: 0.1 Hp
• Motor rating main drive: 4 Hp
• Motor rating coolant pump: 0.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 87” x 79” x 67” Weight: 4,180 lbs. Blade dimensions: 174.41” x 1.34” x 0.04”
• Overall dimensions (length x width x height): 87” x 79” x 67”
• Weight: 4,180 lbs.
• Options
• 119211 – Bi-Metallic Bandsaw Blade / ABS 300 NC (4/6 Z/")
• 119212 – Bi-Metallic Bandsaw Blade / ABS 300 NC (5/8 Z/")
• 103184 – Coolant Concentrate 5 Ltr.
• 251909 – 79” roller table for ABS 300 NC (152880)
• 252714 – 118” roller table for ABS 300 NC (152880)
• 253503 – Micro cooling spray for Part No. 152880 – 152883
• 119210 – Bi-Metallic Bandsaw Blade / ABS 300 NC (3/4 Z/")
• 103330 – Pivoted Mounts LK 3

Specifications

• Manufacturer: Knuth
• SKU: 152880
• Shipping Method: Flatbed
• Weight: 4,380 lb
• Dimensions: 92 × 84 × 72 in
• Country of Origin: China
