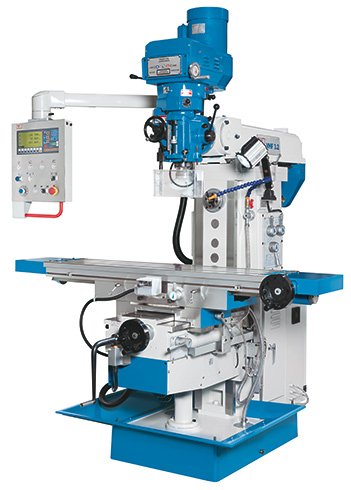

Knuth 5HP 54″x13″ VHF 3.2 Universal Milling Machine 301411

Knuth 5HP 54″x13″ VHF 3.2 Universal Milling Machine 301411 is a Knuth product in the Milling Machines collection.

Product Details

• Main drive motor rating (vertical): 5 Hp
• Main drive motor rating (horizontal): 4 Hp
• Table set up area: 54” x 13”
• Number of T-slots: 3 positions
• Description
• The versatile universal milling machine complements the proven top model of the VHF series. The combination of horizontal spindle, swiveling vertical milling head, and large clamping table, with an increased speed range and the infinitely variable servo feed, extend the wide range of applications of the VHF series. Together with the extensive equipment, this model is also ideally suited for milling in repair workshops as well as training and production departments.
• Features
• Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
• Quiet, precision-made headstock gears with hardened and ground gears

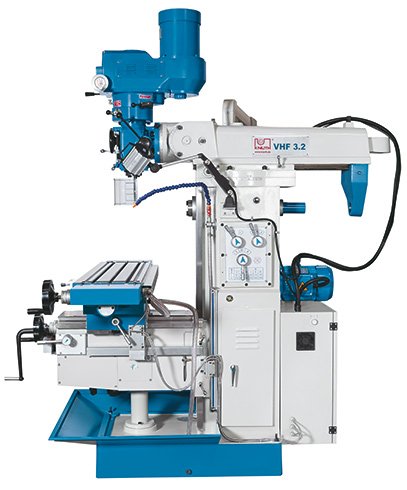

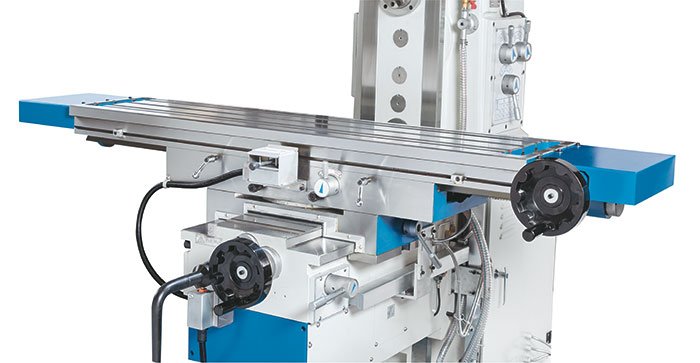

• The milling table features a large setup area and can be rotated in linear direction
• The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually
• For angular bores, the vertical cutter head swivels in two directions: r + l ±90°; tilt fwd + rev ±45°
• Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque
• Vertical and horizontal spindle each have their separate drive
• Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
• Powerful servo-motor allows infinite variation of feeds on all 3 axes
• Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
• Control panel swivels for comfortable operation
• Coolant system and chip tray are included
• Standard Equipment
• Chip tray
• Coolant system
• Central lubrication
• 3-axis position indicator
• Operator instructions
• M16 draw bar
• Operating tools
• Cutter arbor Ø 1"
• Specifications
• Working Area Table set up area: 54” x 13” Number of T-slots: 3 positions Table load capacity (max.): 660 lbs. T-slot (width x spacing): 0.55” x 3.15” Milling table swivel range: 45 deg
• Table load capacity (max.): 660 lbs.
• T-slot (width x spacing): 0.55” x 3.15”
• Milling table swivel range: 45 deg
• Travels Travel X-axis: 39.4” Travel Y-axis: 14” Travel Z-axis: 16”
• Travel X-axis: 39.4”
• Travel Y-axis: 14”
• Travel Z-axis: 16”
• Vertical Milling Head Spindle mount (vertical): ISO 40 Throat: 7” – 34” Vertical spindle-to-table surface distance: 6.3” – 22.05” Milling head swivel range: 90 deg Cutter head tilt angle: 45 deg Spindle speed (infinitely variable) (L): 70 rpm – 450 rpm Spindle speed (infinitely variable) (H): 450 rpm – 3.600 rpm
• Spindle mount (vertical): ISO 40
• Throat: 7” – 34”
• Vertical spindle-to-table surface distance: 6.3” – 22.05”
• Milling head swivel range: 90 deg
• Cutter head tilt angle: 45 deg
• Spindle speed (infinitely variable) (L): 70 rpm – 450 rpm
• Spindle speed (infinitely variable) (H): 450 rpm – 3.600 rpm
• Rapid Feed Rapid feed Z-axis: 39.37”/min Rapid feed X-/ Y-axis: 53”/min
• Rapid feed Z-axis: 39.37”/min
• Rapid feed X-/ Y-axis: 53”/min
• Horizontal Milling Head Spindle speeds-stages: 12 Spindle speeds: 35 rpm – 1.500 rpm Spindle mount: ISO 40 Horizontal spindle-to-table surface distance: 3” – 19”
• Spindle speeds-stages: 12
• Spindle speeds: 35 rpm – 1.500 rpm
• Spindle mount: ISO 40
• Horizontal spindle-to-table surface distance: 3” – 19”
• Feed Feed speed X-axis-stages: 8 Feed speed X-axis: 1.1811”/min – 32.6771”/min Feed speed Y-axis-stages: 8 Feed speed Y-axis: 1”/min – 33”/min Feed speed Z-axis-stages: 8 Feed speed Z-axis: 0.9055”/min – 24.6063”/min
• Feed speed X-axis-stages: 8
• Feed speed X-axis: 1.1811”/min – 32.6771”/min
• Feed speed Y-axis-stages: 8
• Feed speed Y-axis: 1”/min – 33”/min
• Feed speed Z-axis-stages: 8
• Feed speed Z-axis: 0.9055”/min – 24.6063”/min
• Drive Capacity Main drive motor rating (vertical): 5 Hp Main drive motor rating (horizontal): 4 Hp
• Measures and Weights Overall dimensions (length x width x height): 75” x 69” x 93” Weight: 4,290 lbs.
• Overall dimensions (length x width x height): 75” x 69” x 93”
• Weight: 4,290 lbs.
• Options
• 106075 – ER 40 Collet Set 15 pcs.
• 125024 – HS 125 Hydraulic Machine Vise
• 103900 – Shell End Milling Arbor Ø22 SK 40
• 103331 – Pivoted Mounts LK 5
• 105295 – Clamping Tool Set De Luxe 14/M12
• 104596 – Accessory-Set ISO 40 5-pc.
• 103184 – Coolant concentrate 5 ltr
• 103404 – Universal facing/lathe bore head ADA/SK40
• 103895 – Shell end milling arbor Ø16 SK40
• 103905 – Shell end milling arbor Ø27 SK40
• 103910 – Shell end milling arbor Ø32 SK40
• 103915 – Shell end milling arbor Ø40 SK40
• 104920 – Machine vise with pulldown system NZM 160
• 105790 – Swivel hold-down clamp set 100/M12
• 106062 – ER30 collet chuck/mount ISO 40
• 106090 – Angle collet fixture (vertical + horizontal)
• 106103 – 5-C collet clamp Ø 0.04"
• 106104 – 5-C collet clamp Ø 0.08"
• 106105 – 5-C collet clamp Ø 0.12"
• 106110 – 5-C collet clamp Ø 0.16"
• 106215 – 5-C collet clamp Ø 1"
• 108057 – Edge tracer set
• 108400 – Roughing end mill cutter 40
• 108401 – Roughing end mill cutter 50
• 108402 – Roughing end mill cutter 63
• 108403 – Roughing end mill cutter 80
• 108440 – End milling set HSS TiN
• 108445 – Roughing shank cutter 10 pcs
• 108633 – Lathe bore head with boring bar set 3 in 12 pcs
• 108637 – Mounting shank for reaming head 1.97/2.95" EN ISO 40
• 108930 – Assembly stand MAS-BT40, SK 40
• 110960 – Divider ST 130
• 110970 – Optional accessory set / ST 130
• 123040 – Power worker metal cutter
• 125835 – Rotary table RT 200
• 128960 – Corrugated parallel parts 0.4-0.9"
• 128961 – Corrugated parallels 1-1.5"

Specifications

• Manufacturer: Knuth
• SKU: 301411
• Shipping Method: Flatbed
• Weight: 4,490 lb
• Dimensions: 80 × 74 × 98 in
• Country of Origin: China
