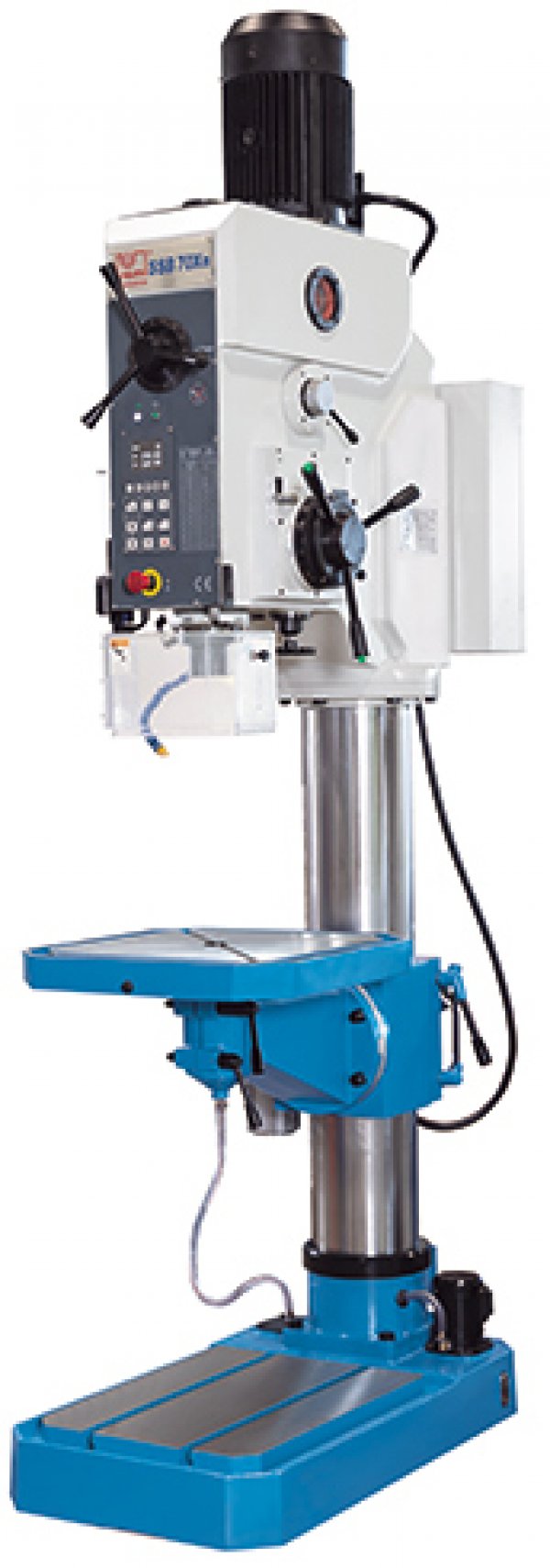

Knuth 7HP SSB 70 Xn Column Drilling Machine with Thread Cutting Capability 101674

Knuth 7HP SSB 70 Xn Column Drilling Machine with Thread Cutting Capability 101674 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling capacity: 2.76”
• Spindle speed: 38 – 1,230 rpm
• Table swivel range (max): ± 45°
• Motor rating main drive: 7.4 HP
• Description
• The heavy-duty design of SSB 70 Xn makes this model the optimal solution for both repair and production requirements. This universal drilling machine have a thick-walled column, powerful drives and robust gearboxes for spindle and feed. The large work area and the large universal clamping tables allow easy handling and processing of small workpieces, but also large and heavy parts and assemblies.
• Features
• The top model of this series features an extra heavy construction with a thick-walled column
• Base, column, table, and gear head are made of premium high-quality cast iron

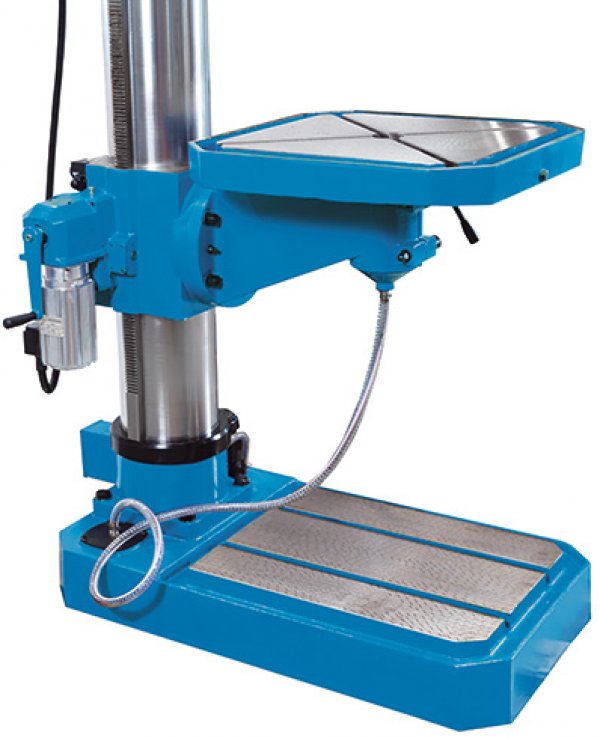

• A large drill press table features a circumferential coolant groove and up to ± 45° swivel range
• Table height adjustment via a powerful motorized drive
• Main spindle and gears are integrated in the lube oil circuit via a powerful pump
• 6 automatic drill feeds can be selected via gears and engage via an electromagnetic clutch
• Easy handling of the machine ensures effortless operation in a production environment
• Modern Operating Concept
• The depth stop is set electronically at the display
• The automatic feed is controlled via buttons and can be engaged and disengaged directly at the twist grip handle
• Measuring units for input and display can be selected by the operator (mm or inch)
• If the thread cutting function is enabled, the spindle rotation will automatically reverse upon reaching the set depth
• Includes a powerful coolant system and safety features
• Standard Equipment
• Thread cutting function
• LED work lamp
• Coolant system
• Operating tools
• Operator instructions
• Drill chuck with key
• Reduction sleeves
• Automatic spindle feeds
• Motorized table height adjustment
• Control panel with digital display
• Protective shield
• Specifications
• Working Area Drilling capacity: 2.76” Tapping capacity, steel: M 50 Table set up area: 24” x 24” Table stroke: 31” Quill stroke: 11” Table swivel range (max): ± 45° Spindle nose-to-throat surface distance: 31” Spindle nose-to-foot distance: 54” Throat: 17” Column diameter: 9” Foot set up area (length): 25”
• Tapping capacity, steel: M 50
• Table set up area: 24” x 24”
• Table stroke: 31”
• Quill stroke: 11”
• Spindle nose-to-throat surface distance: 31”
• Spindle nose-to-foot distance: 54”
• Throat: 17”
• Column diameter: 9”
• Foot set up area (length): 25”
• Headstock Spindle mount: MT 5 Spindle speed: 38 – 1,230 rpm
• Spindle mount: MT 5
• Feed Quill feeds: 0.1-0.4 in/rev
• Quill feeds: 0.1-0.4 in/rev
• Drive Capacity Motor rating main drive: 7.4 HP Motor rating coolant pump: 0.2 HP Motor rating for vertical table travel: 0.5 HP
• Motor rating coolant pump: 0.2 HP
• Motor rating for vertical table travel: 0.5 HP
• Measures and Weights Overall Dimensions (LxWxH): 49” x 26” x 122” Weight: 2,156 lbs
• Overall Dimensions (LxWxH): 49” x 26” x 122”
• Weight: 2,156 lbs
• Optional Accessories
• 105300 – Deluxe clamping tool set 16/M14
• 105795 – Swivel hold-down clamp set 100/M14
• 125032 – UMS 200 Machine Vise
• 103184 – Coolant Concentrate 5 ltr

Specifications

• Manufacturer: Knuth
• SKU: 101674
• Shipping Method: LTL Freight
• Weight: 2,300 lb
• Dimensions: 49 × 26 × 122 in
