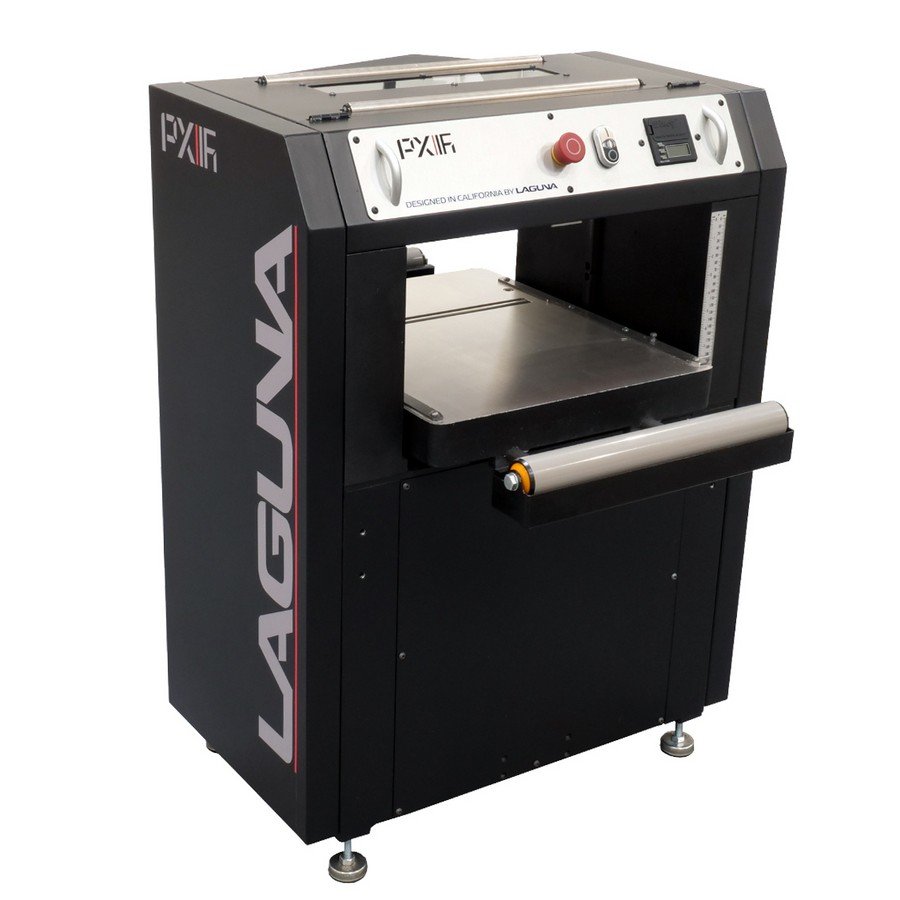

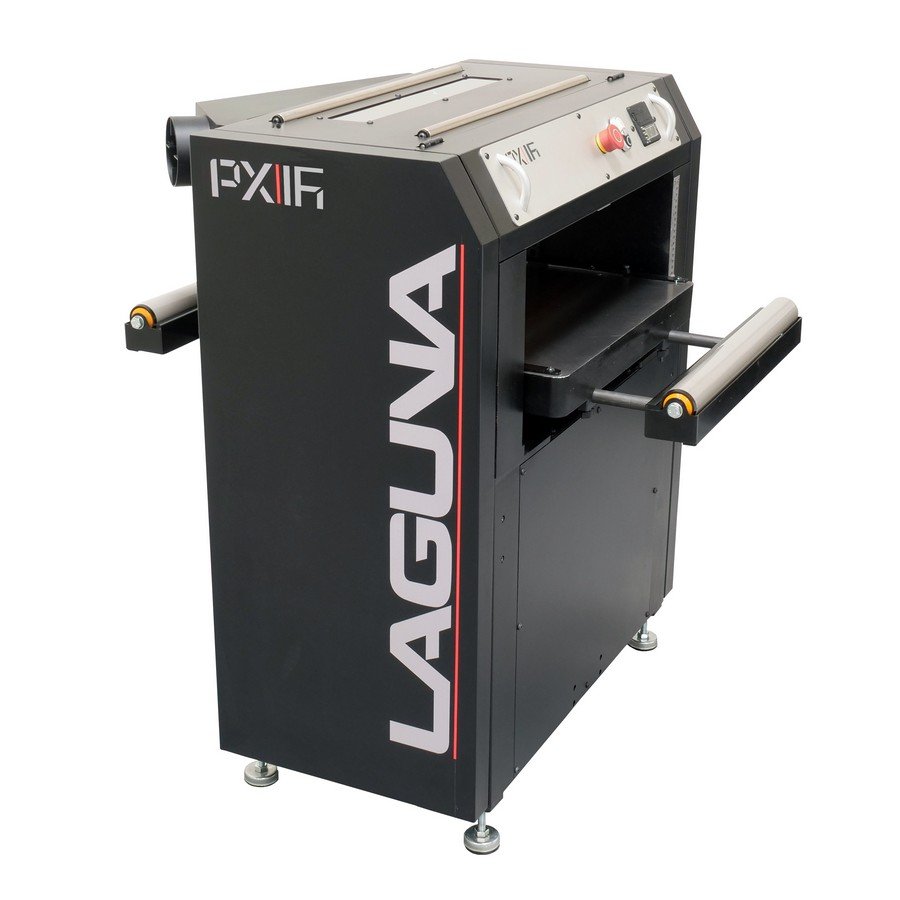

Laguna MPLANPX16-0130 PX|16 Sheartec II Planer 220V 5HP Single Phase
$2,477.40Current price is: $2,477.40.
- 955.000 lbsWeight
- MPLANPX16-0130Model
- PlanersProduct Type
- 5 HPPower
7 in stock
Overview
Laguna MPLANPX16-0130 PX|16 Sheartec II Planer 220V 5HP Single Phase is documented as a model-specific catalog item from Laguna Tools. The exact MPLANPX16-0130 configuration is mapped to GT Machinery Solutions SKU LTMPLANPX16-0130. Recorded technical data includes weight: 955.000 lbs. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Motor: 220v 5HP 1phase 60hz/23Amp.
- CSA: Yes
- Bed Size: 16 x 21-1/2"
- Pull-Out Extension: 4"
- Max. Depth of cut: 1/4"
- Max. Stock Thickness: 8"
- Min. Stock Thickness: 1/4"
- Min. Stock Length: 8"
- Max. Stock Width: 16"
- Feed Speed: 16 & 28 FPM
Technical Specifications
| Weight | 955.000 lbs |
|---|
| Weight | 955 lbs |
|---|---|
| Brand | Laguna Tools |
