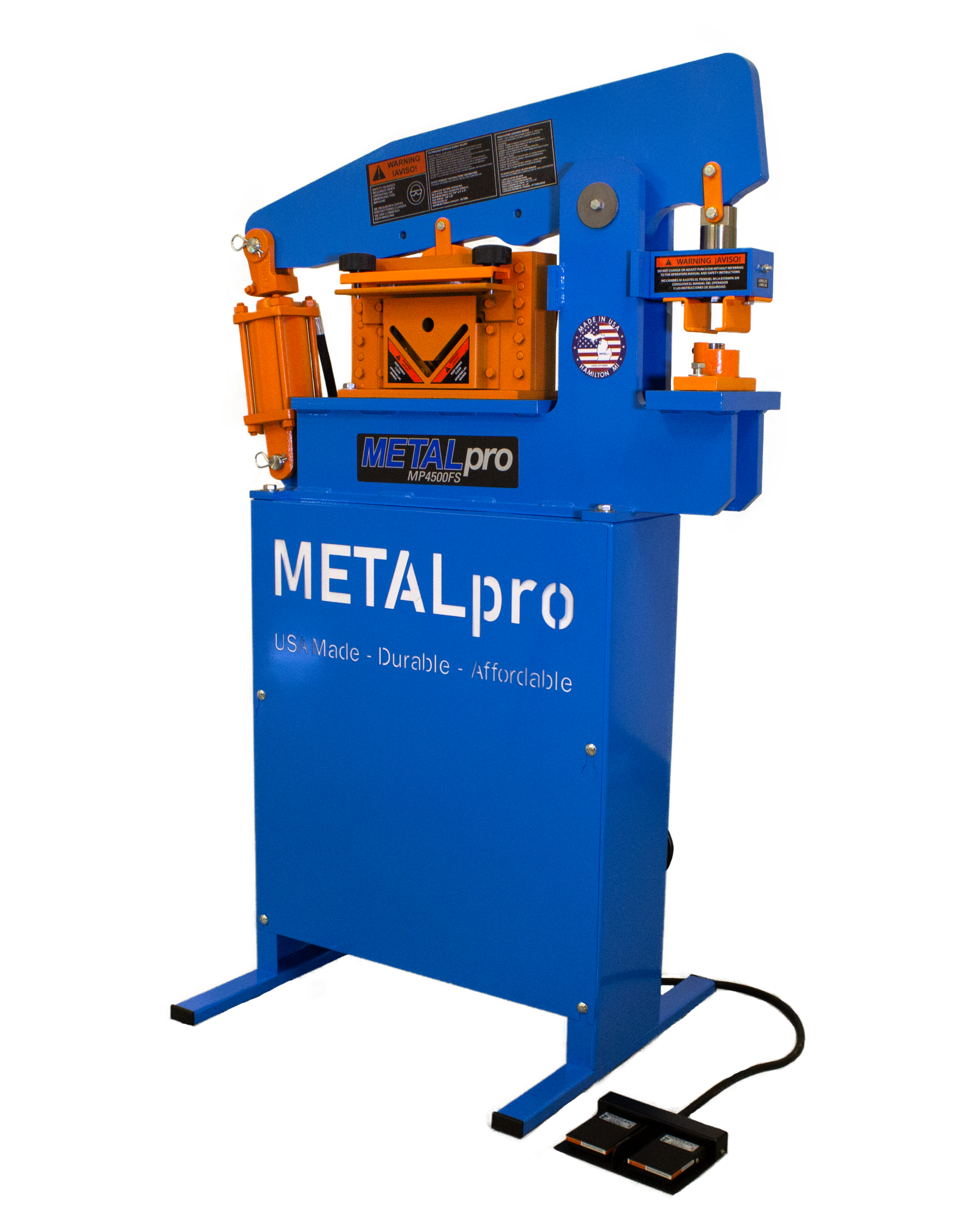

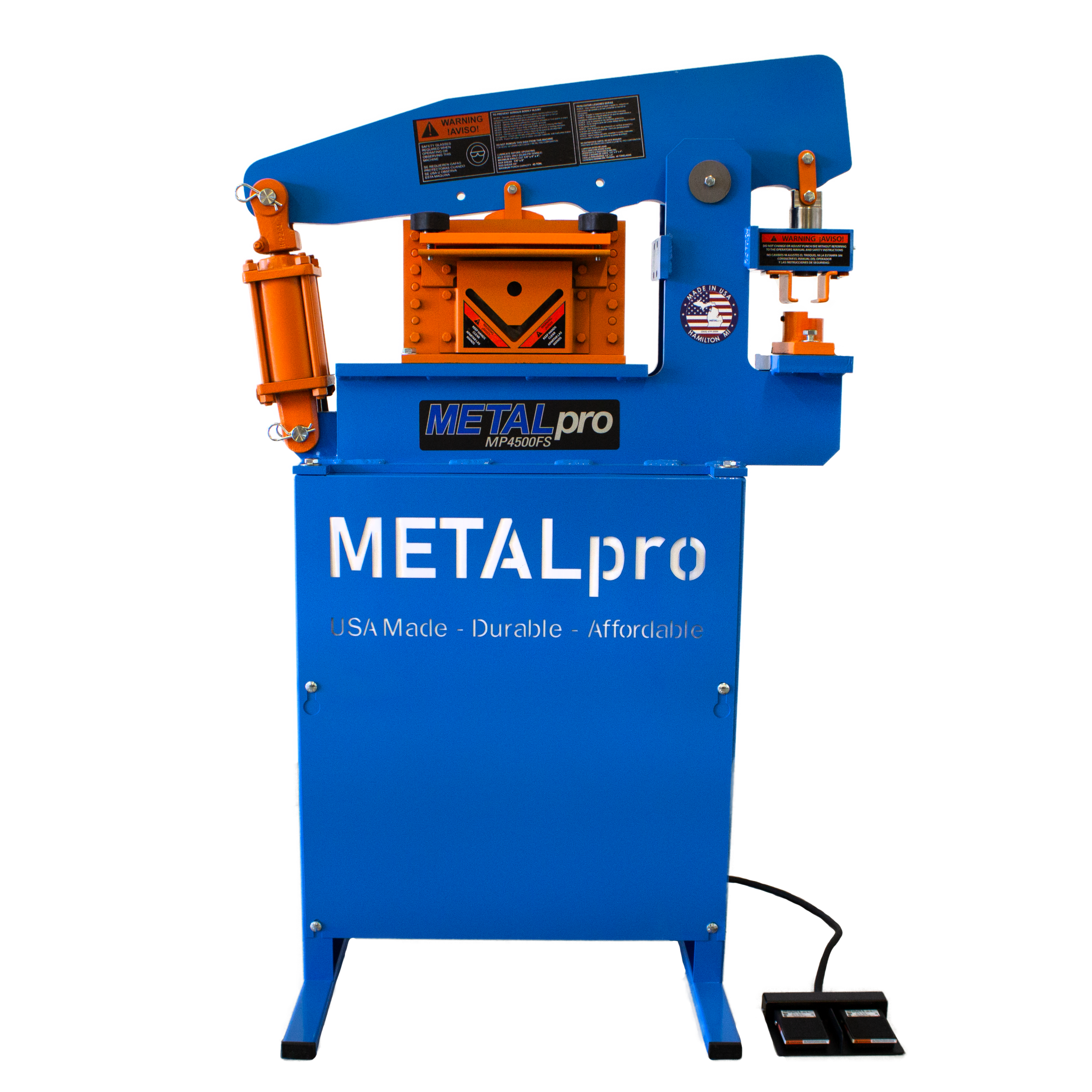

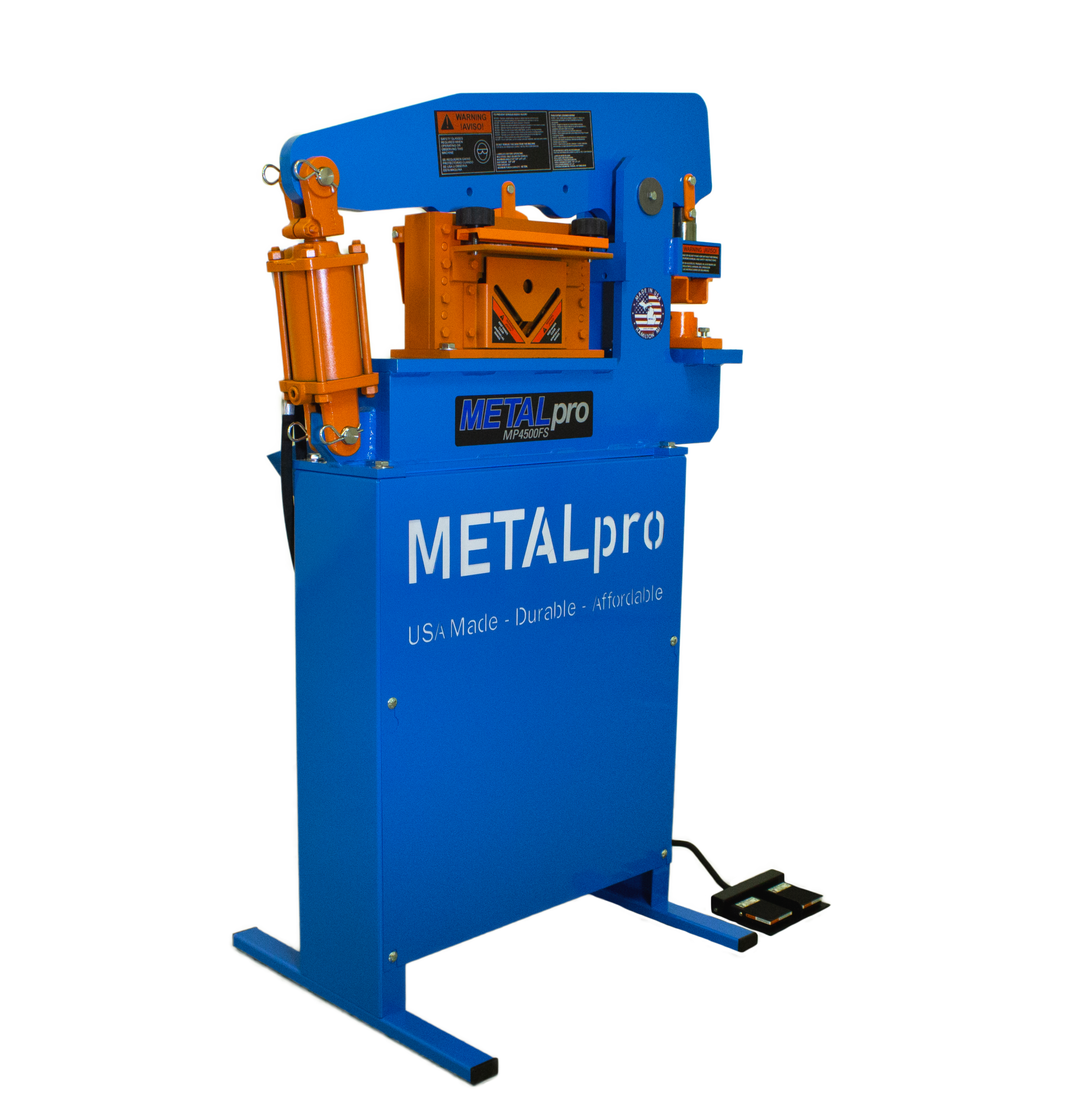

MetalPro 45 Ton 110V Single Phase Foot Switch Controlled Ironworker MP4500FS
$4,338.75Current price is: $4,338.75.
- 45 Ton Capacity
- Throat Depth: 3-3⁄4"
- 1/2" material punch/shear capacity
- 3 Year Warranty
MetalPro 45 Ton 110V Single Phase Foot Switch Controlled Ironworker MP4500FS is a Metalpro product in the Ironworkers collection.
Product Details
- 45 Ton Capacity
- Throat Depth: 3-3⁄4"
- 1/2" material punch/shear capacity
- 3 Year Warranty
- Description
- The MP4500FS is a 45-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 45 tons of pressure at the punch station and 22.5 tons of pressure at the central workstation. This allows the user to punch a ⅞”” round hole through ½”” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.
- This machine comes standard equipped with METALpro’s 8 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.
- Standard Features
- Punch capacity of 45 tons
- 3 3⁄4" throat depth
- 2" die holder, punch retaining nut and stripper
- Power cavity with 3-in-1 shear
- Guarding complies with ANSI B11-8 standards
- Meets American National Safety Standards for ironworkers
- True Blue Guarantee – 3 Year Warranty
- Optional brakes and custom tooling sold separately
- Specifications – Rated on 65,000 PSI Tensile
- Frame Dimensions
- Width: 24"
- Height: 59"
- Length: 36 1⁄2"
- Weight: 550 pounds
- Speed
- Strokes per minute: approximately 6-8
- Motor: 110V 11⁄2 horsepower
- Capacity: 45 tons
- Punch: 45 ton max capacity
- Shear
- Flat bar: Up to 1/2" Mild Steel
- Angle: 1⁄4" x 4"x 4"
- Rod: 3⁄4"
- Square: 5/8"
- Hydraulics: 2900 PSI
- Oil capacity: 1.5 US gallons
- Overall Weight: 575 lbs
- Overall Dimensions: 37" x 24" x 55 1⁄4"
- Optional Accessories (sold separately)
- Brake: 25 tons
- Notcher: optional 1⁄2, 3⁄4, 1,11⁄4, 11⁄2, 2 inch sch. 40
- Picket tool: optional 1⁄2, 5/8, 3⁄4 inch
- Pressing: custom tooling available
- Round, square, oblong, and custom shaped punches and dies
- Wheel kit
Specifications
- Manufacturer: Metalpro
- SKU: MP4500FS
- Shipping Method: LTL Freight
- Weight: 575 lb
- Dimensions: 40 × 30 × 30 in
- Country of Origin: United States of America
- Warranty: 3 Years (Parts)
| Weight | 575.0 lbs |
|---|---|
| Dimensions | 40.0 × 30.0 × 30.0 in |
| Brand | Metalpro |
