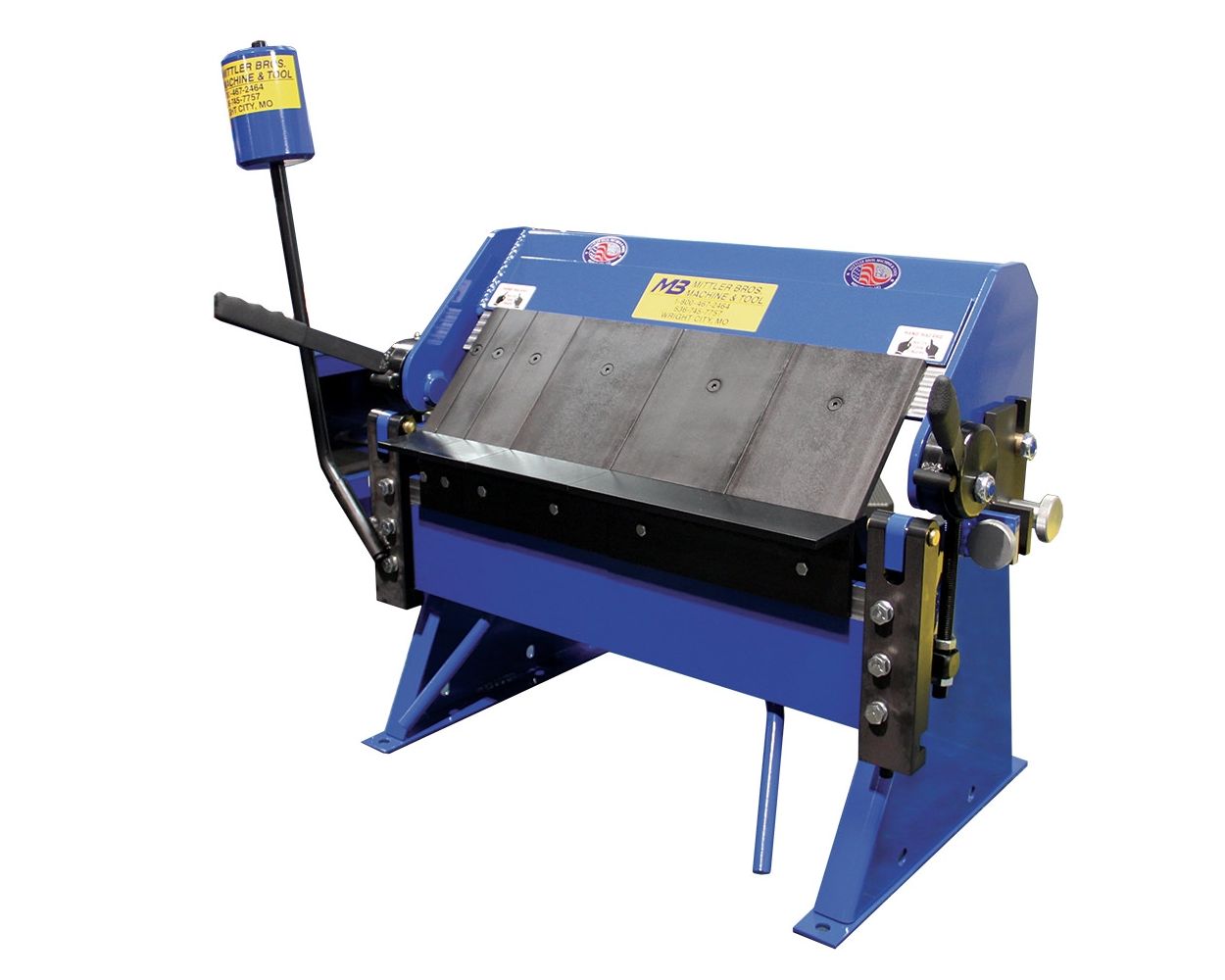

Mittler Bros 24” Ultimate Box & Pan Brake with 3/16” Radius Finger Set 2800-24-16-R

Mittler Bros 24” Ultimate Box & Pan Brake with 3/16” Radius Finger Set 2800-24-16-R is a Mittler Bros product in the Sheet Metal Brakes collection.

Product Details

• 3/16” Radius Finger Set
• Max Capacity: 16ga Mild Steel, 20ga Stainless, 12ga Aluminum
• 3-1/2" Depth of Box
• Max. 1-1/2" Lift of Beam Max
• Description
• All the features of the 48" Ultimate Box & Pan, just half the size with 24" of workable space!

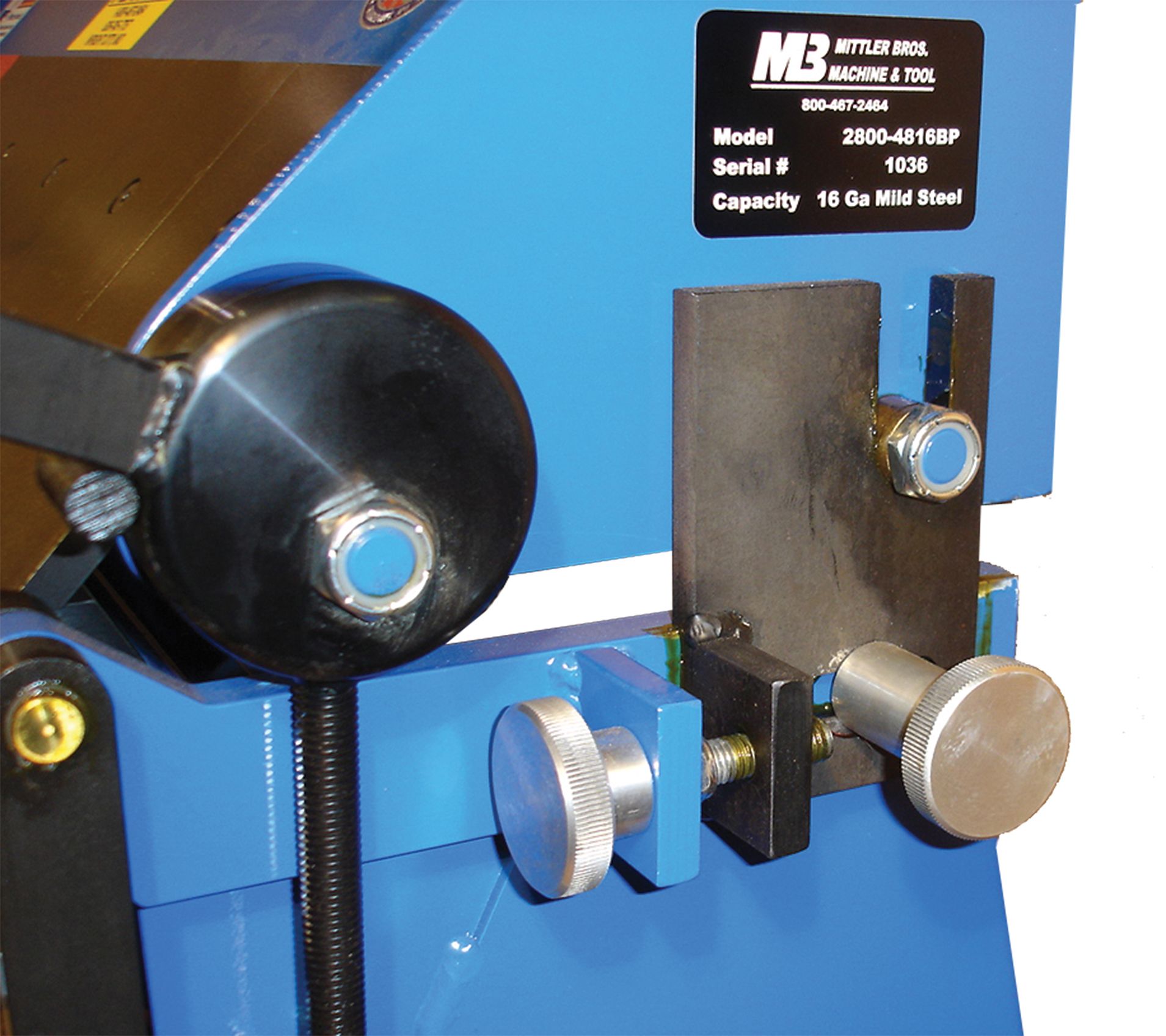

• The ULTIMATE Box & Pan Brake has a unique “3 Finger” design. This design incorporates moveable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that were extremely difficult if not impossible before. The ULTIMATE Box & Pan Brake has wrenchless upper set back adjustments and is designed to bend 16 gauge mild steel the full width with the included apron angle fingers. A complete set of upper fingers, bed fingers, apron angle fingers, and counterweight are standard equipment.
• Includes:
• 1”, 2”, 3” (qty. 1), 6” (qty. 3) Upper Fingers
• Features & Specifications
• 24" of Radius Fingers Installed (Your Choice of Size)
• Does Not Include Standard Upper Fingers
• Bending Length: 24"
• 125° Degree of Bend Max.
• 2" Down leg Max.
• Front to Rear Adjustment: 1"
• Radius Finger Kits Available
• Max Capacity: 16ga (.062") Mild Steel 20ga (.0375") Stainless 12ga (.080") Aluminum
• 16ga (.062") Mild Steel
• 20ga (.0375") Stainless
• 12ga (.080") Aluminum
• *Does NOT Include Stand, Stand Can Be Purchased Separately Part # 2800-420*

Specifications

• Manufacturer: Mittler Bros
• SKU: 2800-24-16-R (3/16 FS)
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 72 × 24 × 40 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
