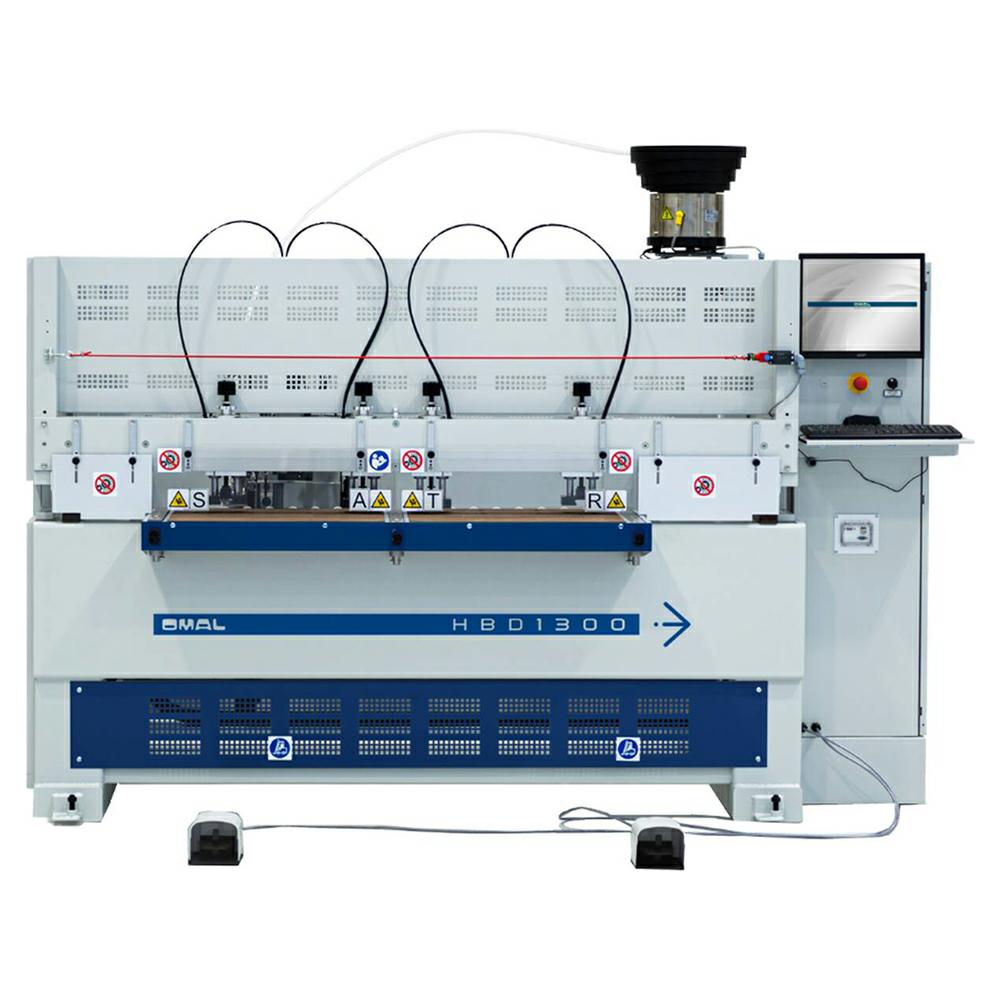

OMAL HBD 1300 1H 1V Open Frame Horizontal Bore/Dowel Machine
$51,078.00Current price is: $51,078.00.
- 3000 lbsWeight
- S000103Model
- Boring MachinesProduct Type
- SCMHBD1300-1H-1VSKU
3 in stock
Overview
OMAL HBD 1300 1H 1V Open Frame Horizontal Bore/Dowel Machine is documented as a model-specific catalog item from Omal. The exact S000103 configuration is mapped to GT Machinery Solutions SKU SCMHBD1300-1H-1V. Recorded technical data includes weight: 3,000.000 lbs. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Number of Drilling Units: 1+1
- Drill Motor kw/Hp: 0.75 kw / 1 Hp
- Drills Rotation Speed: 6000 RPM
- Max Depth of Holes: 30mm (1.18")
- Max Diameter of Drill: 10mm (3/8")
- Number of Dowel Insertion unit: 1
- Standard Dowel Dimension (other dimensions on request): 8mm x 35mm
- Maximum Dowel Length (other dimensions on request): 40mm
- Maximum Dowel Projection: 20mm
- 2 position revolver for dowel
Technical Specifications
| Weight | 3,000.000 lbs |
|---|
| Weight | 3000 lbs |
|---|---|
| Brand | Omal |
