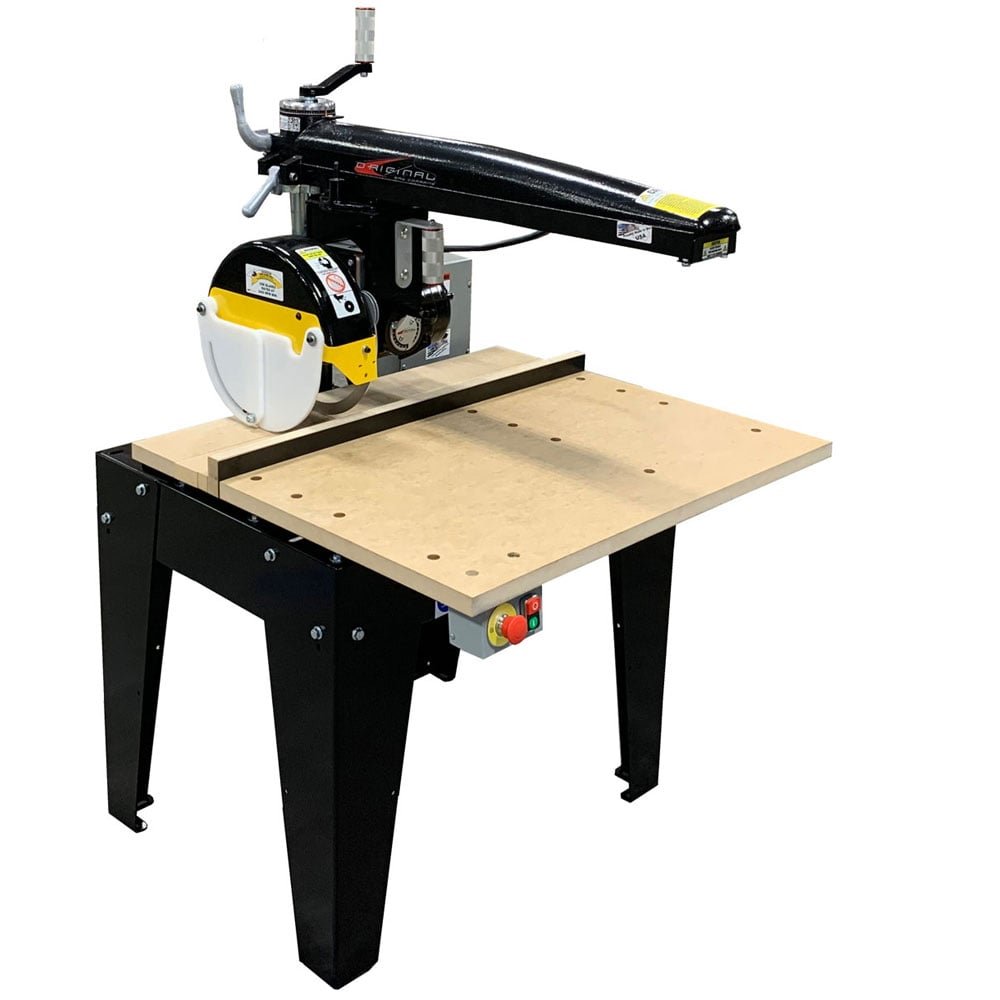

Original Saw 3512-01 12″ Contractor Duty Radial Arm Saw 3HP Single Phase
$3,741.47Current price is: $3,741.47.
- 900.000 lbsWeight
- 3512-01Model
- Radial Arm SawsProduct Type
- 3 HPPower
9 in stock
Overview
Original Saw 3512-01 12" Contractor Duty Radial Arm Saw 3HP Single Phase is documented as a model-specific catalog item from Original Saw Company. The exact 3512-01 configuration is mapped to GT Machinery Solutions SKU OR3512-01. Recorded technical data includes weight: 900.000 lbs. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- 3 hp 1 phase 208/220 volt TEFC motor 60 Hz (3512-01)
- Automatic blade braking system
- 24” crosscut standard on all machines in series
- Precision carriage riding on 4 tight-tolerance, horizontally mounted convex bearings
- Over sized MDF table top
- E-Stop
- Powder coated heavy gauge steel frame and legs
- Standard worktable height 32”
- Arbor nut and precision ground arbor collars
- Wrench kit (includes Allen arbor wrench and flat arbor wrench)
Technical Specifications
| Weight | 900.000 lbs |
|---|
| Weight | 900 lbs |
|---|---|
| Brand | Original Saw Company |
