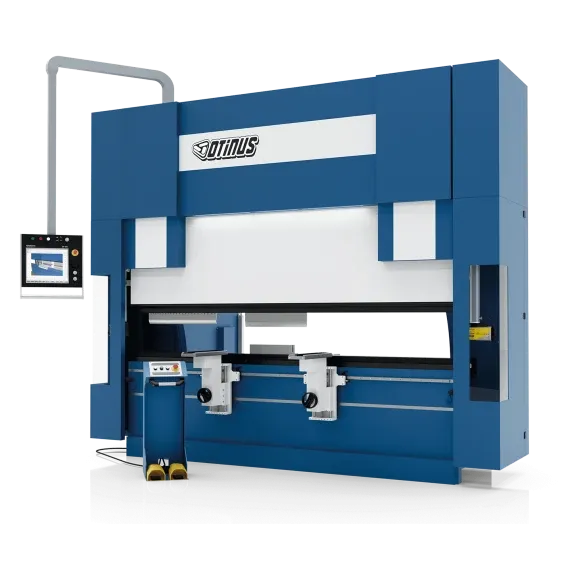

Otinus Pro Line 460V Three Phase 220 Ton x 162” Delem-DA66T Controlled Hydraulic Press Brake PBO-4120-PRO
$67,550.00Current price is: $67,550.00.
- Throat depth: 16”
- Max ram stroke: 10”
- Daylight: 21”
- Approach/Working/Return Speeds: 160-10-110 mm/sec
Otinus Pro Line 460V Three Phase 220 Ton x 162” Delem-DA66T Controlled Hydraulic Press Brake PBO-4120-PRO is a Otinus product in the Press Brakes collection.
Product Details
- Throat depth: 16”
- Max ram stroke: 10”
- Daylight: 21”
- Approach/Working/Return Speeds: 160-10-110 mm/sec
- Features
- Delem Controller
- Fiessler Akas light curtains
- Amada-Promecam tool clamping system
- Quick clamping system
- Movements in all axes controlled by servomotors
- User-friendly interface
- Front supports for sheet handling
- Oil cooling system (OCS)
- Hydraulic system: HAWE
- Light curtains
- Limit switches
- Safety guards
- Standard Equipment
- Controller: Delem DA-66T
- Y1+Y2+X+R axes (servo drives)
- Automatic crowning
- Promecam rapid clamp system
- 2 backgauge fingers
- 2 front supports on linear guides
- AKAS II light curtains
- Delem DA-66T Controller
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programming mode
- 17” TFT touch screen
- Windows with controller software (possibility to create programs on the PC)
- Crowning control managed through the controller
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Controls and sensors prevent collisions along individual axes
- Specifications
- Tonnage: 220 ton (2000 kN)
- Max working length: 162”
- Bed height: 35”
- Table width: 4”
- Oil tank volume: 56 gal
- Nominal motor power: 25HP (18.5 kW)
- Electrical Requirements: 460V Three Phase
- Machine Dims: 144” x 63” x 108”
- Approx Weight: 27,562 lbs
Specifications
- Manufacturer: Otinus
- SKU: PBO-4120-PRO
- Shipping Method: Flatbed
- Weight: 27,700 lb
- Dimensions: 148 × 68 × 112 in
| Weight | 27700.0 lbs |
|---|---|
| Dimensions | 148.0 × 68.0 × 112.0 in |
| Brand | Otinus |
