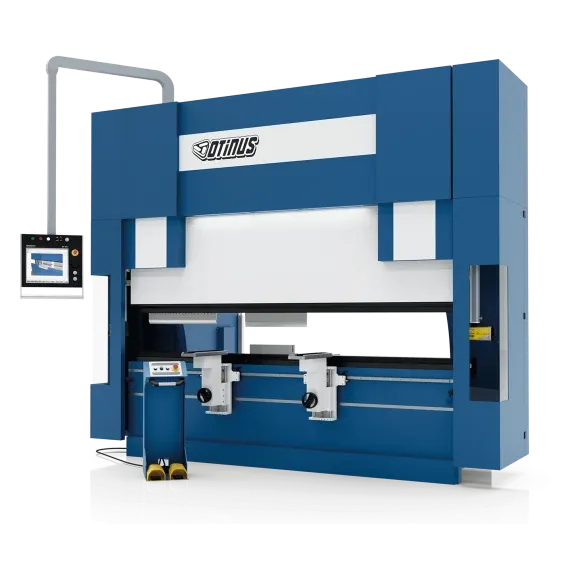

Otinus Pro Line 460V Three Phase 44 Ton x 50” Delem-DA66T Controlled Hydraulic Press Brake PBO-1204-PRO
$47,800.00Current price is: $47,800.00.
- Daylight opening: 18”
- Stroke: 8”
- Throat gap: 16”
- Approach/Working/Return Speeds: 160-10-130 mm/sec
Otinus Pro Line 460V Three Phase 44 Ton x 50” Delem-DA66T Controlled Hydraulic Press Brake PBO-1204-PRO is a Otinus product in the Press Brakes collection.
Product Details
- Daylight opening: 18”
- Stroke: 8”
- Throat gap: 16”
- Approach/Working/Return Speeds: 160-10-130 mm/sec
- Features
- Delem Controller
- Fiessler Akas light curtains
- Amada-Promecam tool clamping system
- Quick clamping system
- Movements in all axes controlled by servomotors
- User-friendly interface
- Front supports for sheet handling
- Oil cooling system (OCS)
- Hydraulic system: HAWE
- Light curtains
- Limit switches
- Safety guards
- Standard Equipment
- Controller: Delem DA-66T
- Y1 + Y2 + X + R axes (servo drives)
- Automatic crowning
- Promecam rapid clamp system
- 2 backgauge fingers
- 2 front supports on linear guides
- ALAS II light curtains
- Delem DA-66T Controller
- Automatic control of 8 axes translating into more efficient bending
- Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
- Saving up to 30 upper and lower dies
- Controller with 2D/3D programing mode
- 17” TFT touch screen
- Windows with controller software
- Crowning control managed through the controller
- Complex Delem design
- USB that allows connecting in new devices
- Available space for connecting a bending angle sensor
- Control and sensors prevent collisions along individual axes
- Specifications
- Tonnage: 44 ton (400 kN)
- Max working length: 50”
- Inside frames: 42”
- Distance between frames: 4ft
- Table width: 2”
- Bed height: 31”
- Oil tank volume: 21 gal
- Motor Output: 5HP (4.0 kW)
- Electrical Requirements: 460V Three Phase
- Machine Dims: 60” x 58” x 91”
- Approx Weight: 7,276 lbs
Specifications
- Manufacturer: Otinus
- SKU: PBO-1204-PRO
- Shipping Method: Flatbed
- Weight: 7,400 lb
- Dimensions: 65 × 62 × 95 in
| Weight | 7400.0 lbs |
|---|---|
| Dimensions | 65.0 × 62.0 × 95.0 in |
| Brand | Otinus |
