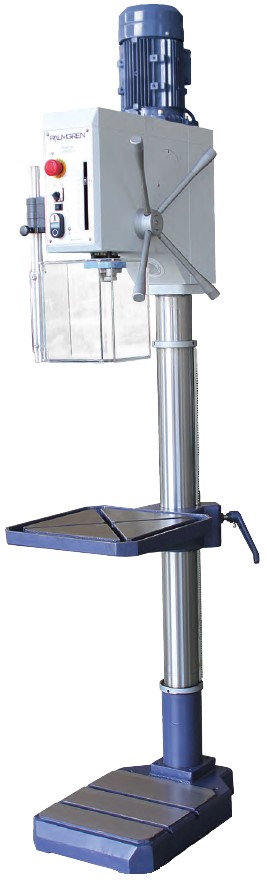

Palmgren 20” Gear Head Drill Press 9680223
$3,140.63Current price is: $3,140.63.
- Motor: 1-1/2 – 2HP – 240V – 3PH – 60Hz
- Number of Speeds: 8
- Spindle Travel: 8"
- Table Work Surface: 15-1/2" x 14 – 13/16"
Palmgren 20” Gear Head Drill Press 9680223 is a Palmgren product in the Drill Presses collection.
Product Details
- Motor: 1-1/2 – 2HP – 240V – 3PH – 60Hz
- Number of Speeds: 8
- Spindle Travel: 8"
- Table Work Surface: 15-1/2" x 14 – 13/16"
- Description
- This versatile all gear drive drill press is ideal for precision drilling applications and continuous industrial use. The all gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. This drill utilizes the combination of steel and reinforced fiber gears to ensure positive, quite operation. All clutches are made of ground steel for added performance and strength. The wide speed range makes this drill ideal for drilling small to large diameter holes fast and easily.
- Features
- Wide speed range with 8 different speeds
- Simple knob selectors for operator ease in changing spindle speeds
- Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Quick release drill ejector
- Front mounted control panel designed for operator convenience
- Forward & reverse spindle switch
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Work light
- Specifications
- Drive Type: Gear Head
- Swing: 20"
- Spindle Taper: MT3
- Capacity Steel: 1 – 1/8"
- Capacity Cast Iron: 1 – 1/8"
- Power Feed: No
- Chuck Size: 5/8"
- Spindle Speed: 130 – 3480 RPM
- Base Size: 12-1/2" x 15 – 13/16"
- Number of T-Slots: 2
- Table Slot Size: 1/2"
- Column Dia.: 3 – 39/64"
- Max. Spindle To Base: 47 – 13/64"
- Quill Dia.: 2 – 23/64"
- Spindle to Table: 34 – 13/32"
- Dimensions (W x L x H): 15" x 25" x 82"
Specifications
- Manufacturer: Palmgren
- SKU: 9680223
- UPC: 726896802237
- Shipping Method: LTL Freight
- Weight: 458 lb
- Dimensions: 25 × 15 × 82 in
- Warranty: 3 Years (Parts)
| Weight | 458.0 lbs |
|---|---|
| Dimensions | 25.0 × 15.0 × 82.0 in |
| Brand | Palmgren |
