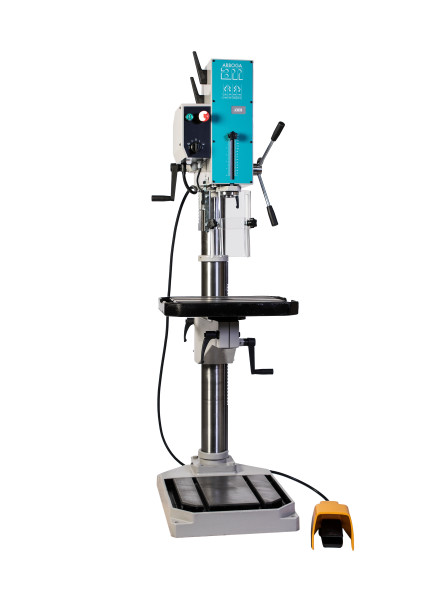

Palmgren 230V Three Phase 26” Gear Head Drill Press with Foot Reversing Switch 9680248
$5,559.45Current price is: $5,559.45.
- Capacity Steel: 1-1/8"
- Capacity Cast Iron: 1-1/4"
- Power Feed: No
- Number Of Speeds: 8
Palmgren 230V Three Phase 26” Gear Head Drill Press with Foot Reversing Switch 9680248 is a Palmgren product in the Drill Presses collection.
Product Details
- Capacity Steel: 1-1/8"
- Capacity Cast Iron: 1-1/4"
- Power Feed: No
- Number Of Speeds: 8
- Description
- This premier all gear drive drill press combines power with precision to handle virtually any drilling application. The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy.
- Chuck & Spindle Guard A clear adjustable chuck and spindle guard offers added protection to the operator throughout the drilling cycle
- A clear adjustable chuck and spindle guard offers added protection to the operator throughout the drilling cycle
- Inch / Metric Depth Stop Front mounted for better visibility and added operator convenience. It is easily adjusted with the turn of a locking knob and displays both inch and metric measurements.
- Front mounted for better visibility and added operator convenience. It is easily adjusted with the turn of a locking knob and displays both inch and metric measurements.
- All Gear Drive The all gear drive transmission delivers full power at any speed, driving tools at nearly 100% of available horsepower. These drills utilize the combination of hardened steel and high strength fiber helical cut gears to ensure positive, quite operation. All clutches are made of ground steel for easy speed changes and added strength.
- The all gear drive transmission delivers full power at any speed, driving tools at nearly 100% of available horsepower. These drills utilize the combination of hardened steel and high strength fiber helical cut gears to ensure positive, quite operation. All clutches are made of ground steel for easy speed changes and added strength.
- Features
- Inch/Metric depth stop
- 2 speed manual forward & reverse switch
- Foot reversing switch
- Head & table rotates 360 degrees around the column
- Machined & t-slotted table and base
- Quick release drill ejector
- Chuck guard
- No-volt release prevents spindle start up when power returns after shutdown
- 4" Palmgren drill press vise
- Drill chuck & arbor
- Made in Sweden
- Specifications
- Swing: 25"
- Spindle Taper: MT3
- Motor: 1.5-2 HP, 230V, 3PH
- Spindle Speed: 90-3610 RPM
- Spindle Travel: 5-7/8"
- Base Size: 18-3/4" x 26-3/4"
- Table Work Surface: 20" x 15-3/4"
- Number Of T-Slots: 3
- Table Slot Size: 1"
- Column Diameter: 4-1/8"
- Spindle To Table: 31-1/4"
- Overall Dimensions: 18-3/4" x 26-3/4" x 74-1/2"
- Weight: 572 lbs.
Specifications
- Manufacturer: Palmgren
- SKU: 9680248
- UPC: 726896802480
- Shipping Method: LTL Freight
- Weight: 672 lb
- Dimensions: 24 × 32 × 80 in
- Country of Origin: Sweden
- Warranty: 3 Years (Parts)
| Weight | 672.0 lbs |
|---|---|
| Dimensions | 24.0 × 32.0 × 80.0 in |
| Brand | Palmgren |
