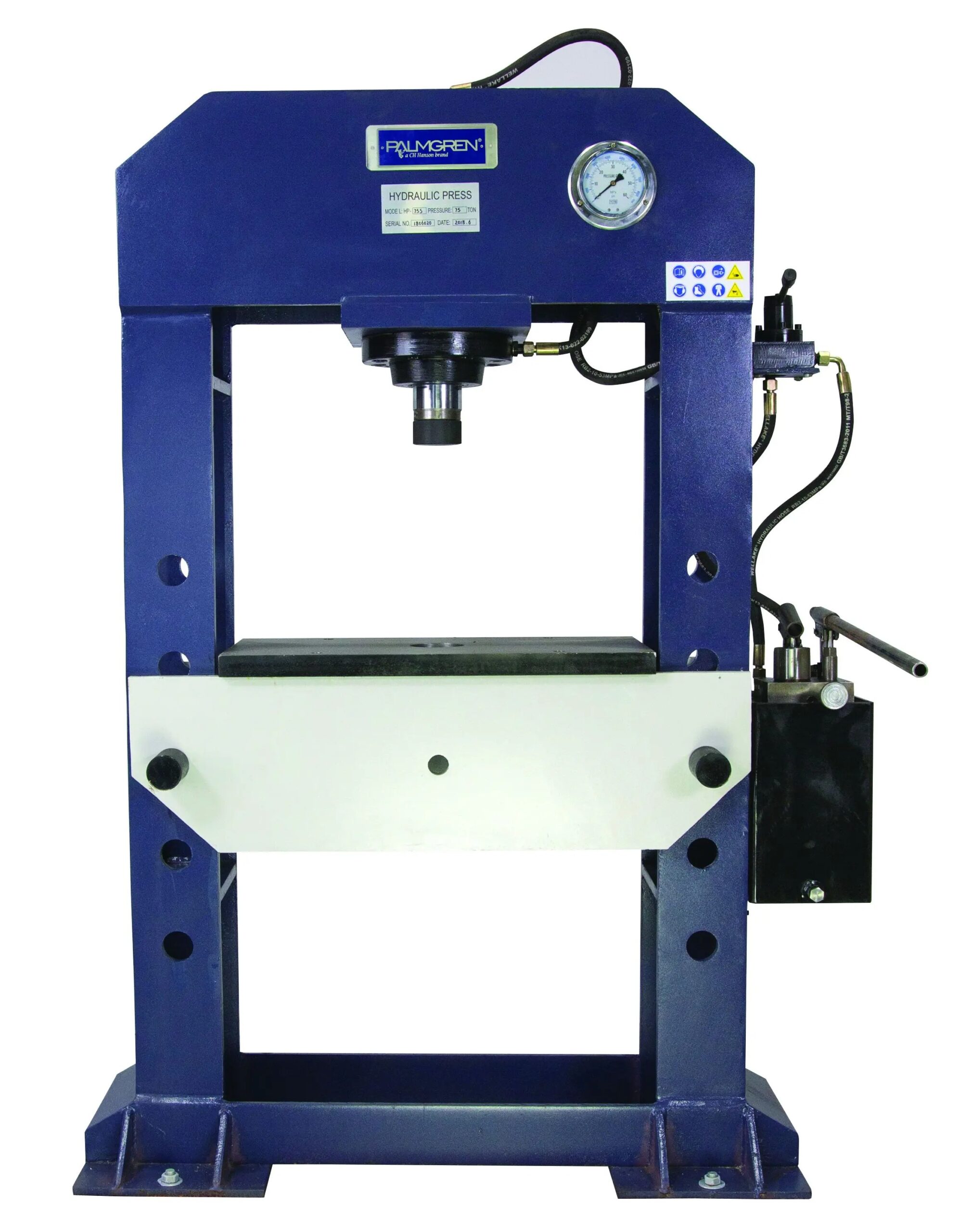

Palmgren 75 Ton Hand Operated H-Frame Hydraulic Press 9661615
$6,662.50Current price is: $6,662.50.
- Max. Distance Ram to Table: 24.2"
- Max. Work Diameter: 23" x 25.5"
- Minimum Work Diameter: 23 x 0.75
- Throat Capacity: 23.6" x 15.75"
Palmgren 75 Ton Hand Operated H-Frame Hydraulic Press 9661615 is a Palmgren product in the Hydraulic Presses collection.
Product Details
- Max. Distance Ram to Table: 24.2"
- Max. Work Diameter: 23" x 25.5"
- Minimum Work Diameter: 23 x 0.75
- Throat Capacity: 23.6" x 15.75"
- Description
- Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.
- Features
- Pressure gauge for direct pressure readings
- Easily adjustable table for quick height changes between applications
- Holes in side frames allow for insertion of long material
- Hand operation for economic performance
- Efficient hand pump is conveniently located for reduced operator fatigue
- Fully-welded heavy steel plate frame for maximum rigidity
- Factory preset relief valve to prevent exceeding maximum pressure capacity
- By-pass hole prevents excessive ram extension
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
- Single acting cylinder design for improved operation
- Table Weight Capacity: 3300 lbs
- Adj. between Table Pin to Holes: 5.9 in
- Distance between channels: 10.16 in
- V-Block Weight: 5.9 lbs
- Specifications
- Capacity over Table (inches): 15.75
- Country of Origin: CN
- Cylinder (Fixed or Dynamic): FIXED
- Cylinder Type: Single Action
- Diameter of Work (inches): 23
- Frame Capacity: 75 tons
- H-frame Press Type: Electronic Pump
- Largest Arbor Extension: 11.81
- Leverage Radio: 1000/1
- Max Pressure: 75 ton
- Overall Dimensions (LxWxH): 51" x 19.6" x 67"
- Pressure (tons): 75
- Press Type: H-frame Presses
- Pump Type: MANUAL
- Ram Bore (inches): 2.5
- Ram Diameter: 3
- Ram Size: 11.81
- Reservoir Capacity: 12 QT 20L
- Size of Ram Face (inches): 2.5 Dia.
- Table Weight: 175
- Warranty: 3 Year
- Working Height (inch): 15-43
- Working Width (inch): 31.5
- UPC: 726896616155
Specifications
- Manufacturer: Palmgren
- SKU: 9661615
- UPC: 726896616155
- Shipping Method: LTL Freight
- Weight: 2,000 lb
- Dimensions: 44 × 20 × 68 in
- Country of Origin: China
- Warranty: 1 Year (Parts)
| Weight | 2000.0 lbs |
|---|---|
| Dimensions | 44.0 × 20.0 × 68.0 in |
| Brand | Palmgren |
