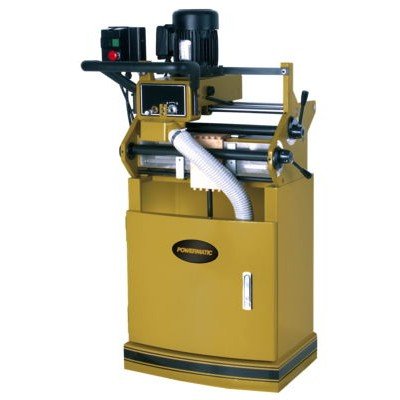

Powermatic DT45 Dovetailer 1HP 1Ph 115/230V
$4,360.85Current price is: $4,360.85.
- 1, 1-1/2, 2, 2-1/2Center to Center Dovetail Spacing (In.)
- 500Dust Collection Minimum CFM Required (CFM)
- 1 HPHorsepower
- 31 x 11Maximum Work Piece Size (In.)
3 in stock
Overview
Powermatic DT45 Dovetailer 1HP 1Ph 115/230V is documented as a Dovetailer from Powermatic Tools. The exact PM9-1791304 configuration is mapped to GT Machinery Solutions SKU JPW1791304. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1, and motor voltage (v.): 115/230. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Center to Center Dovetail Spacing (In.) | 1, 1-1/2, 2, 2-1/2 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Horsepower | 1 HP |
| Maximum Work Piece Size (In.) | 31 x 11 |
| Minimum Front Thickness (In.) | 11933 |
| Minimum Side Thickness (In.) | 11933 |
| Minimum Work Piece Size (L x W)(In.) | 7-7/8 x 2-3/8 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Number of Dovetail Center Lines | 4 |
| Number of Spindles | 1 |
| Phase | 1 |
| Prewired Voltage (V.) | 115 |
| Product Type | Dovetailer |
| Spindle Speed (RPM) | 18500 |
| Style (Type) | Manual |
| Table Height From Floor (In.) | 35 |
| Warranty | 5 Years |
| Weight | 380.000 lbs |
| Weight | 380 lbs |
|---|---|
| Brand | Powermatic Tools |
