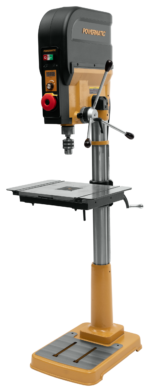

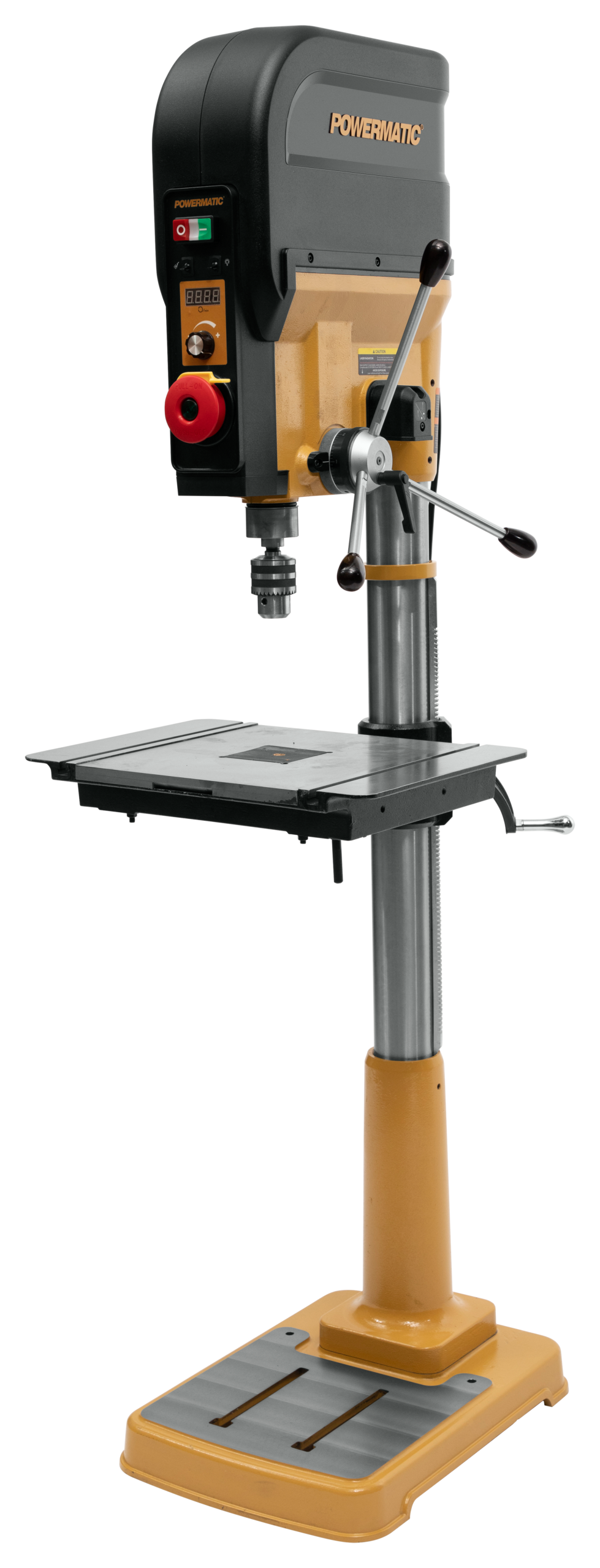

Powermatic PM2820EVS Drill Press, 1HP 1PH 120V 1792820

Powermatic PM2820EVS Drill Press, 1HP 1PH 120V 1792820 is a Powermatic product in the Drill Presses collection.

Product Details

• Designed for a range of materials and applications
• For unbeatable accuracy, the laser cross hairs provide precise tool point indication.
• Gear driven power transfers torque consistently and efficiently for a wide range of materials.
• Handles can be reversed for left or right sided operation.

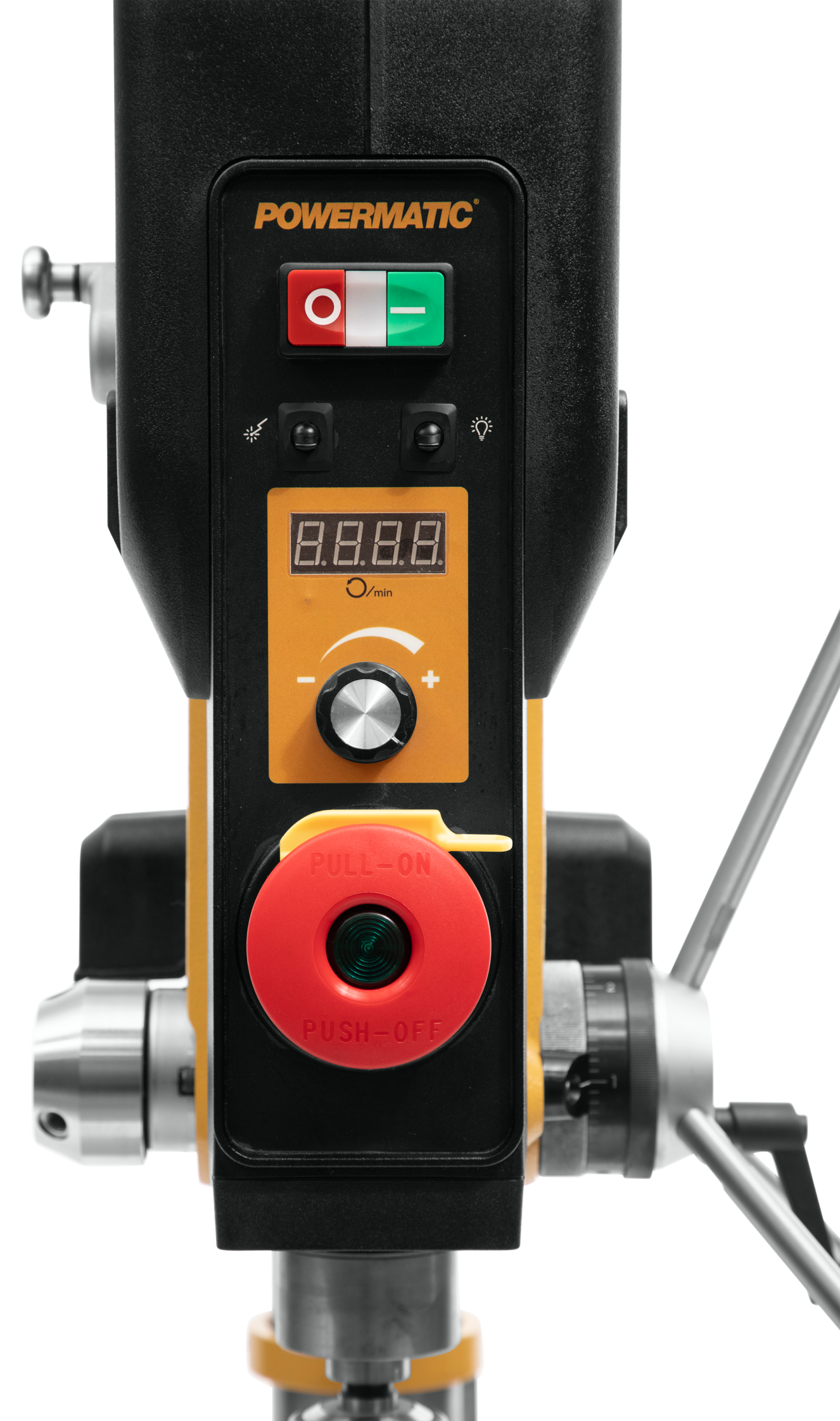

• Highly visible digital readout gives users control.
• Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.

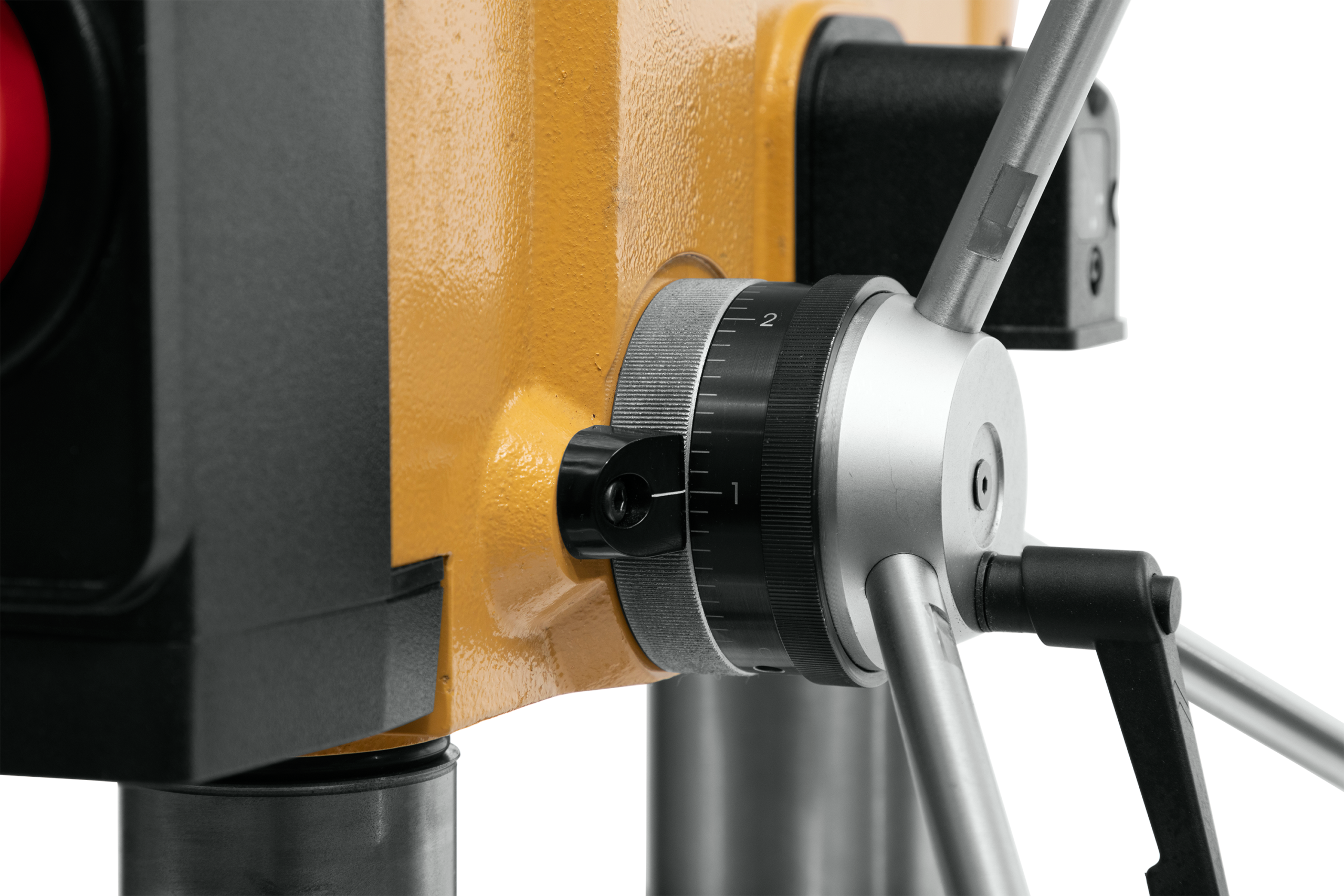

• Includes Powermatic’s patented integrated depth stop for efficient drilling
• Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.
• Standing on an oversized cast base for outstanding stability for the 20 inch swing.
• The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
• The large cast table adjusts to a range of positions and tilts to a full ninety degree position.
• Specification: Value
• Spindle Speed (RPM): 150 – 3600
• Swing (In.): 20
• Spindle Travel (In.): 6
• Style (Type): Floor
• Number of Spindle Speeds: 2 Variable
• Table Size (L x W) (In.): 20-1/2 x 15-1/2
• Spindle Taper: MT2
• Spindle Distance to Base (In.): 45
• Weight (Lbs.): 336.6
• Spindle Distance to Table (Max.) (In.): 23
• Chuck Distance to Base (In.): 41-1/4
• Chuck Distance to Table (In.): 19-1/4
• Chuck Size (In.): 5/8
• Quill Diameter (In.): 2.6
• Motor Power (HP): 1
• Table Size Fully Extended (L x W) (In.): 20-1/2 x 15-1/2
• Table Tilt (Deg.): 90 L/R
• Base Work Table (In.): 11.81 x 12.05
• Column Diameter (In.): 3-3/8
• Base Dimensions (In.): 22.7 x 16.33 x 2.75
• Motor (HP): 1
• Fence Size (L x H) (In.): 19-3/4 x 2-5/8
• Base Size (In.): 22-3/4 x 16-3/8 x 2-3/4
• Motor Phase: Single
• Motor Voltage (V.): 120
• Overall Dimensions (L x W x H) (In.): 24.5 x 20.5 x 71.85
• Prewired Voltage (V.): 115
• Motor Amps: 8
• Net Weight (Lbs.): 336.6
• Gross Weight (Lbs): 413.6
• Height: 19.6900
• Length: 55.5100
• Weight: 412.6000
• Width: 30.9000

Specifications

• Manufacturer: Powermatic
• SKU: PM9-1792820
• UPC: 731325833836
• Shipping Method: LTL Freight
• Weight: 412.6 lb
• Dimensions: 55.51 × 30.9 × 19.69 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
