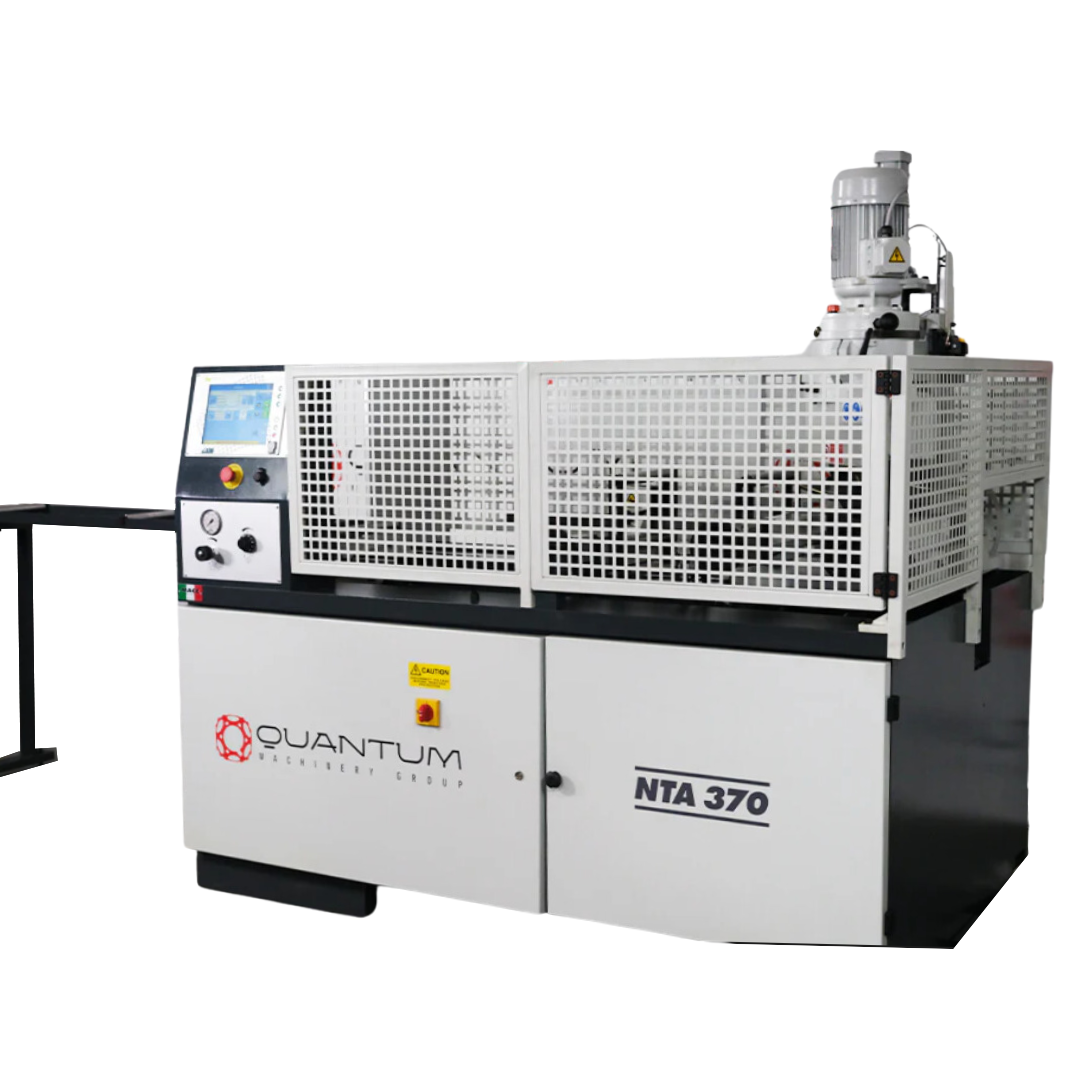

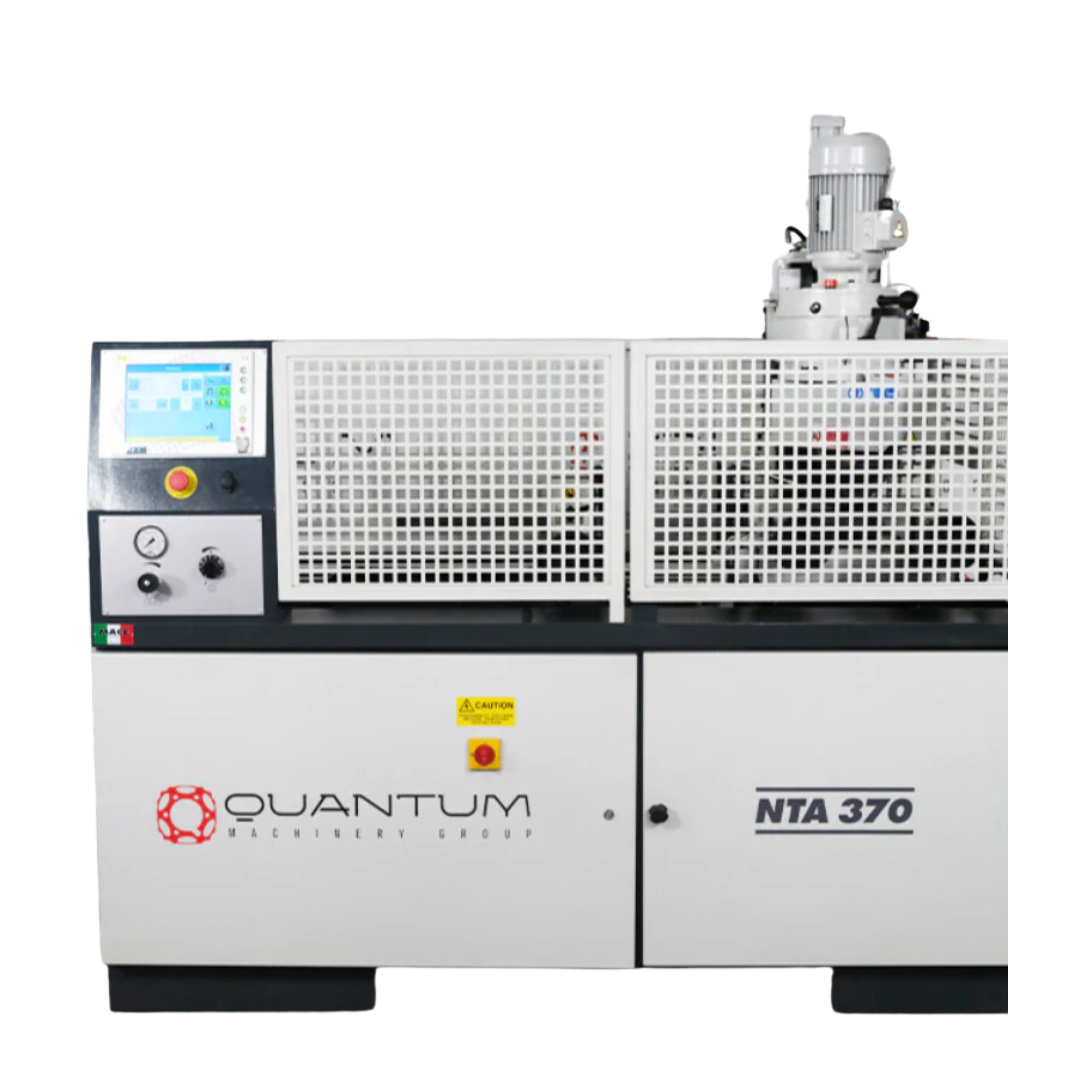

Quantum Machinery 14.50” 220V Three Phase Fully-Automatic Double-Column Cold Saw NTA370
$36,328.50Current price is: $36,328.50.
- Blade Size (Bore HSS): 370mm x 2.5mm x 32mm
- Max vice opening: 7.2” (183mm)
- Stop feeder stroke length: 23.6”
- 2 Speeds: 25-50 RPM
Quantum Machinery 14.50” 220V Three Phase Fully-Automatic Double-Column Cold Saw NTA370 is a Quantum Machinery Group product in the Cold Saws collection.
Product Details
- Blade Size (Bore HSS): 370mm x 2.5mm x 32mm
- Max vice opening: 7.2” (183mm)
- Stop feeder stroke length: 23.6”
- 2 Speeds: 25-50 RPM
- Description

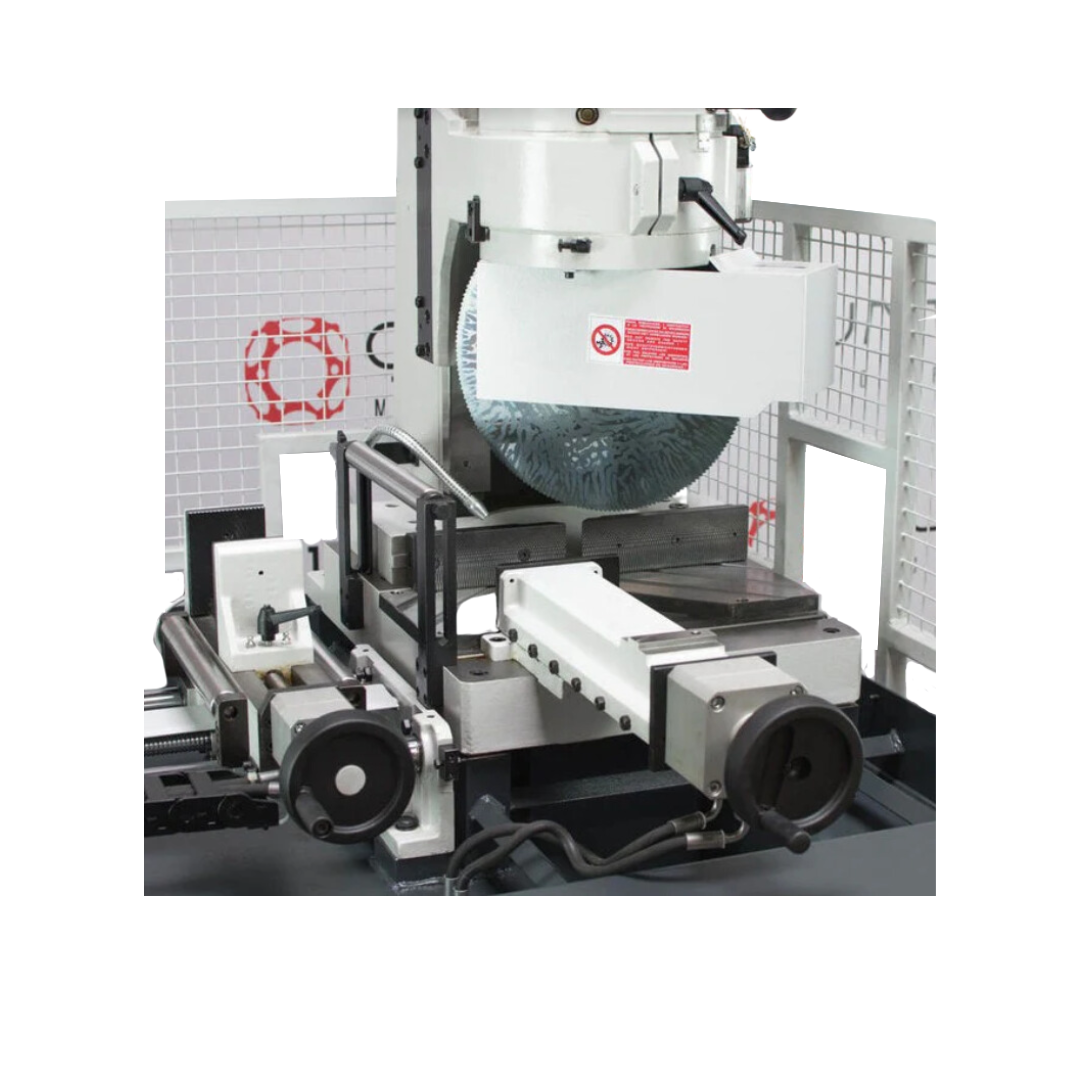

- The Quantum Macc NTA 370 Vertical Double-Column Fully-Automatic Cold Saw has a moveable head that can move up to 45 degrees right and left; and the head also has rotation stops at 45°-0°-45°. The NTA 370 has a vice that is complete with an anti-burr device and a motor pump for blade lubrication. This unit is equipped with a bar stop, bar support arm, and service tools, as well as the machine’s manual. The NTA 370 can store up to 9 programs, each of them with 99 steps for a total of about 890 cutting positions with relevant piece-counter.
- Operation
- Feeding of material
- Closing of vice and fixed vice will lock
- Activation of blade motor, rotation of blade and delivery of coolant
- Cutting head begins down-stroke
- Completes cut & head returns to initial position as blade motor and coolant stops
- Vice then opens
- Maximum Cutting Capacities
- Round Tube Straight Cut: 3” 45° Left/Right Cut: 3”
- Straight Cut: 3”
- 45° Left/Right Cut: 3”
- Square Tube Straight Cut: 3” 45° Left/Right Cut: 3”
- Solid Round Tube Straight Cut: 3” 45° Left/Right Cut: 3”
- Rectangular Tube Straight Cut: 3.9”H x 3”W 45° Left/Right Cut: 3.9”H x 3”W
- Straight Cut: 3.9”H x 3”W
- 45° Left/Right Cut: 3.9”H x 3”W
- Features
- Automatic CNC hydraulic circular cold saw performing cuts from 0° to 45° to the right and left produced according to the current safety standards
- Additional vice
- Motor pump
- Vice pressure regulator
- Tempered and ground vertical slider
- Tempered and ground vice jaws
- Head lowering adjustment
- Service tools
- Instruction manual and exploded view of spare parts
- Specifications
- Electrical Requirements: 220V / Three Phase / 60Hz
- Overall Dims: 138” x 47” x 75”
- Machine Weight: 1,985 lbs
- Optional Add-Ons
- Variable Speed Inverter
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: NTA 370
- Shipping Method: LTL Freight
- Weight: 2,200 lb
- Dimensions: 145 × 52 × 80 in
| Weight | 2200.0 lbs |
|---|---|
| Dimensions | 145.0 × 52.0 × 80.0 in |
| Brand | Quantum Machinery Group |
