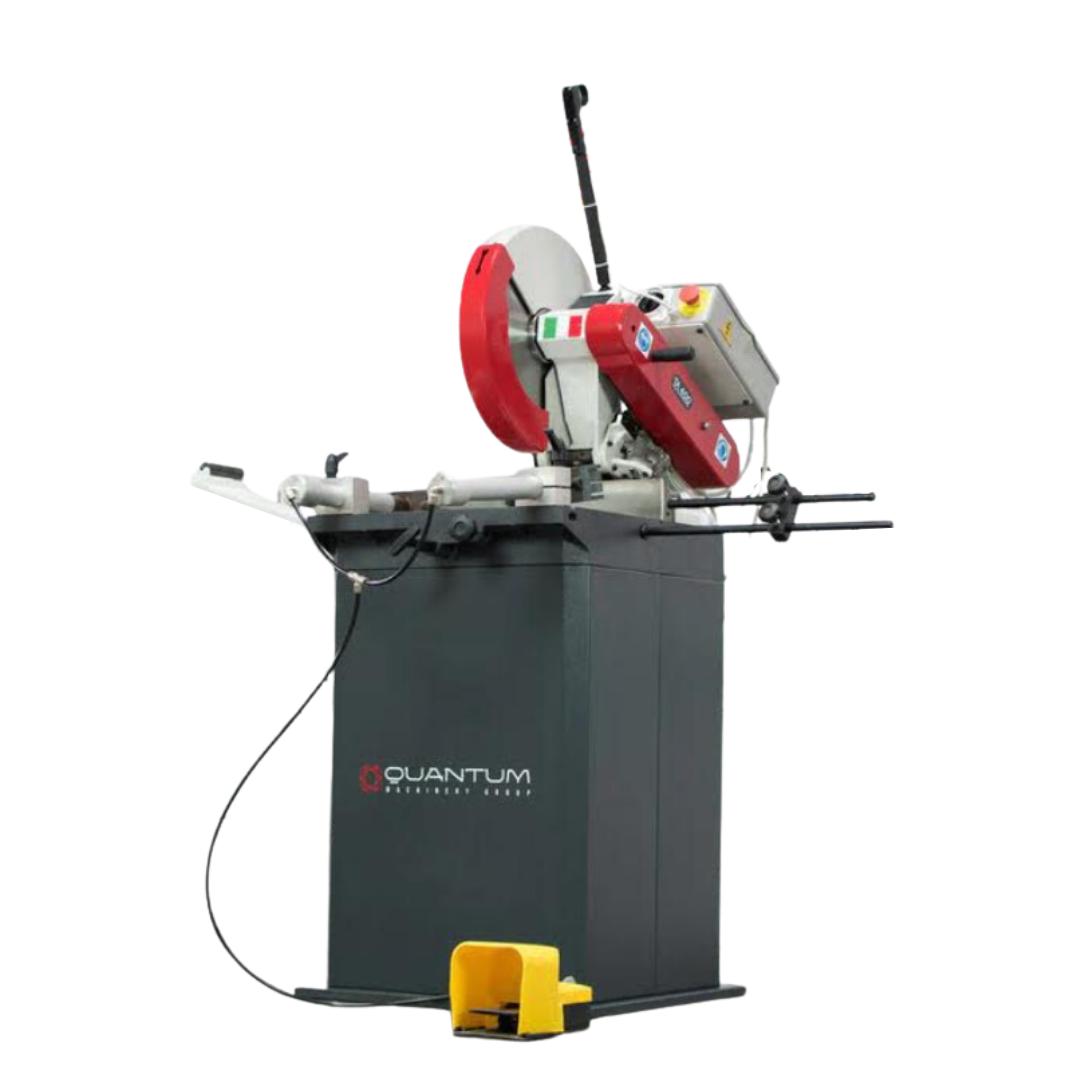

Quantum Machinery 15.75” 220V Three Phase Manual Non-Ferrous Circular Aluminum Cutting Saw TA 400
$4,322.50Current price is: $4,322.50.
- Blade Size (Bore Carbide Tip): 400mm x 2.5mm x 32mm
- Max Vice Opening: 7”
- Blade Speed: 3,000 RPM
- Movable Cutting Head: 45° Left/Right
Quantum Machinery 15.75” 220V Three Phase Manual Non-Ferrous Circular Aluminum Cutting Saw TA 400 is a Quantum Machinery Group product in the Cold Saws collection.
Product Details
- Blade Size (Bore Carbide Tip): 400mm x 2.5mm x 32mm
- Max Vice Opening: 7”
- Blade Speed: 3,000 RPM
- Movable Cutting Head: 45° Left/Right
- Maximum Cutting Capacities
- Round Tube Straight Cut: 5.5” 45° Left/Right Cut: 5”
- Straight Cut: 5.5”
- 45° Left/Right Cut: 5”
- Square Tube Straight Cut: 4.25” 45° Left/Right Cut: 3.9”
- Straight Cut: 4.25”
- 45° Left/Right Cut: 3.9”
- Solid Round Straight Cut: 2.25” 45° Left/Right Cut: 2.25”
- Straight Cut: 2.25”
- 45° Left/Right Cut: 2.25”
- Rectangular Tube Straight Cut: 3.9”H x 7”W 45° Left/Right Cut: 3.9”H x 5.9”W
- Straight Cut: 3.9”H x 7”W
- 45° Left/Right Cut: 3.9”H x 5.9”W
- Features
- Movable Cutting Head: from 45° Left up to 45° Right and Inclinable head up to 45° left
- Manual circular saw for aluminum
- 24V low voltage installation with hold-to-run head control handle
- Locking pin ensuring fast positioning of the head
- Blade holder shaft on bearings
- Movable bed assembled on spheres
- Two manual vices and Teflon jaws for material clamping
- Includes: Steel Pedestal/Stand, Pedal Controlled Pneumatic Vice, Rapid Stop on Motor, Instruction Manual, Service Tools, & 1 Bore Carbide Tip Blade
- Specifications
- Inclinable Head: 45° Left
- Electrical Requirements: 220V / Three Phase / 60Hz
- Machine Dims: 40” x 59” x 36”
- Machine Weight: 350 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: TA400
- Shipping Method: LTL Freight
- Weight: 450 lb
- Dimensions: 48 × 70 × 48 in
- Country of Origin: Italy
| Weight | 450.0 lbs |
|---|---|
| Dimensions | 48.0 × 70.0 × 48.0 in |
| Brand | Quantum Machinery Group |
