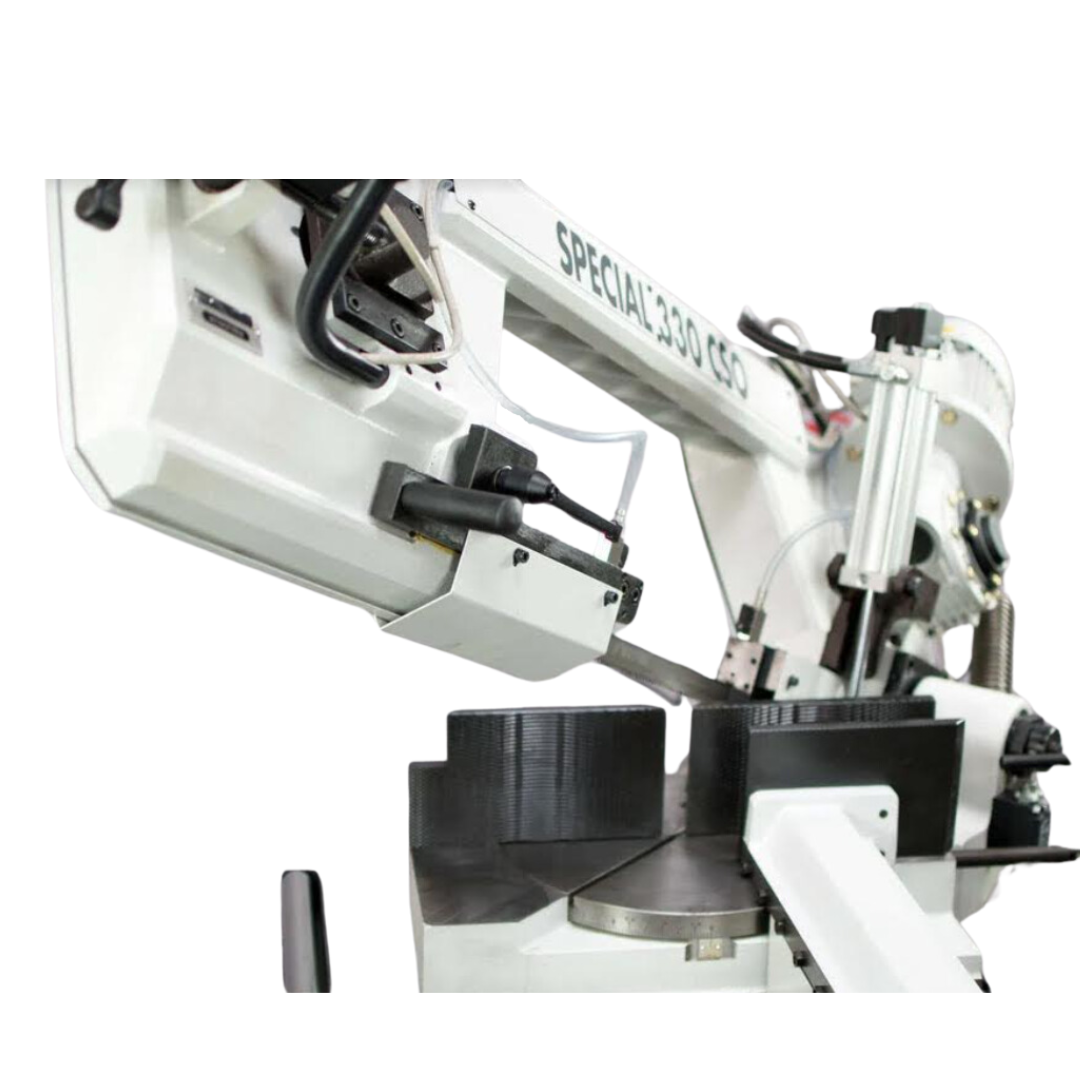

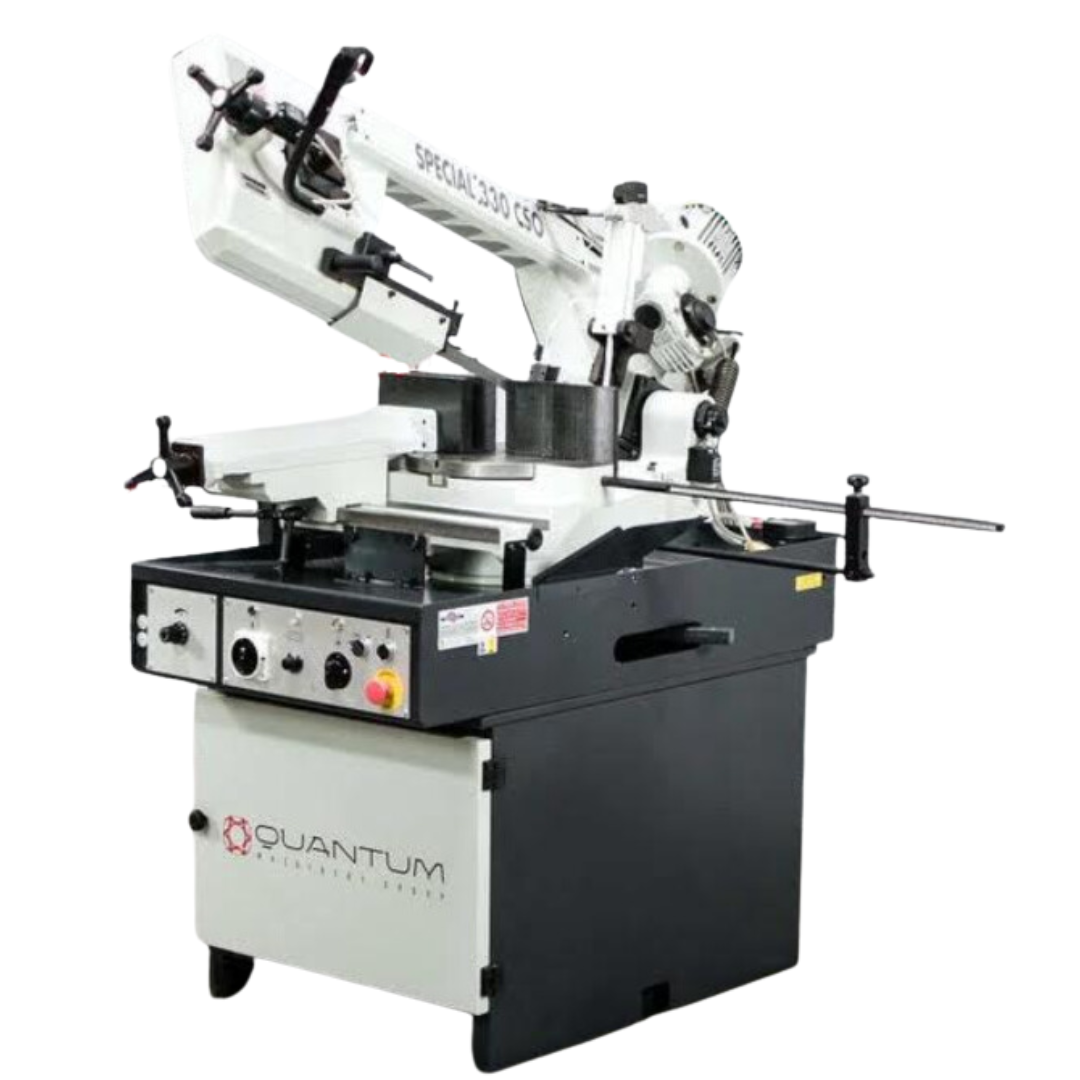

Quantum Machinery 220V Three Phase 10.6” Manual Band Saw with Automatic Head Descent and Variable Speed Inverter S 335 CSO
$9,267.70Current price is: $9,267.70.
- Cutting Thickness: 0.047”
- Cutting Range: 45° left to 60° right
- Blade Size: 3010mm x 27mm x 0.9mm
- Max Vice Opening: 13”
Quantum Machinery 220V Three Phase 10.6” Manual Band Saw with Automatic Head Descent and Variable Speed Inverter S 335 CSO is a Quantum Machinery Group product in the Band Saws collection.
Product Details
- Cutting Thickness: 0.047”
- Cutting Range: 45° left to 60° right
- Blade Size: 3010mm x 27mm x 0.9mm
- Max Vice Opening: 13”
- Maximum Cutting Capacities
- Round Tube Straight Cut: 10.2” 45° Right Cut: 8.5” 45° Left Cut: 7” 60° Right Cut: 5.1”
- Straight Cut: 10.2”
- 45° Right Cut: 8.5”
- 45° Left Cut: 7”
- 60° Right Cut: 5.1”
- Square Tube Straight Cut: 9.8” 45° Right Cut: 7.9” 45° Left Cut: 6.1” 60° Right Cut: 5.1”
- Straight Cut: 9.8”
- 45° Right Cut: 7.9”
- 45° Left Cut: 6.1”
- Rectangular Tube Straight Cut: 8.5”H x 13”W 45° Right Cut: 6.3”H x 8.3”W 45° Left Cut: 2.4”H x 8.9”W 60° Right Cut: 5.1”H x 5.5”W
- Straight Cut: 8.5”H x 13”W
- 45° Right Cut: 6.3”H x 8.3”W
- 45° Left Cut: 2.4”H x 8.9”W
- 60° Right Cut: 5.1”H x 5.5”W
- Features
- Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure, and Head Return are manually operated
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw
- Appropriately dimensioned flywheels
- Strong band guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch
- Vice with a device for quick approach
- Wide rotating material support table
- Accident-preventing devices on the flywheel casing, on the control handle, and on the blade

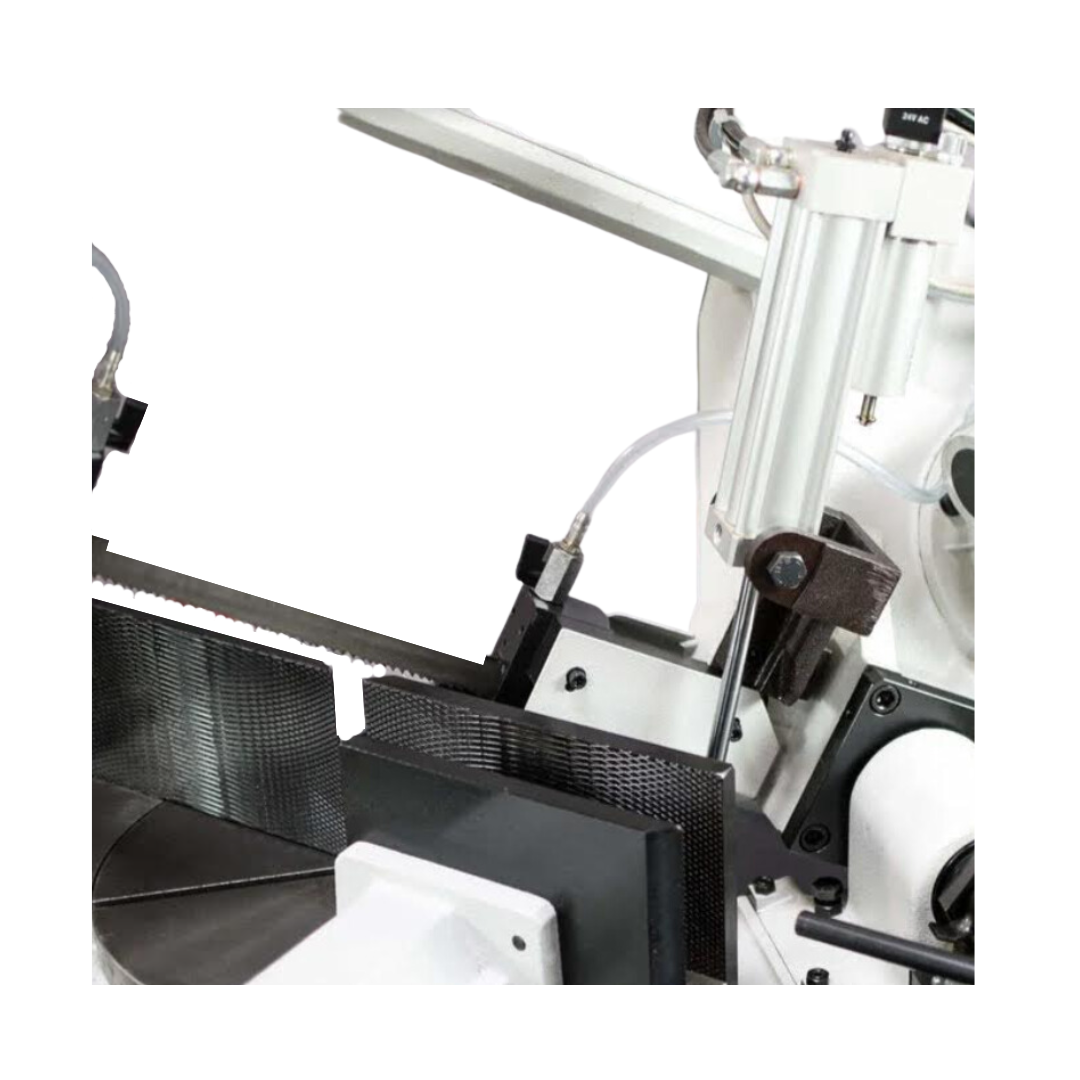

- Hydraulic cylinder for controlled descent
- Removable chip collection tray
- Cutting range 45° left 60° right
- Adjustable stop for cuts of the same size
- 24 V low tension plant
- 0.06 kW power-driven pump for band cooling
- Includes: bar stop, bar support arm, instruction manual, service tools, & 1 band saw blade
- Specifications
- Motor Power: 0.75 – 1.1 kW
- Electrical Requirements: 220V / Three Phase / 60Hz
- Machine Weight: 915 lbs
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: S 335 CSO
- Shipping Method: LTL Freight
- Weight: 1,050 lb
- Dimensions: 75 × 58 × 80 in
| Weight | 1050.0 lbs |
|---|---|
| Dimensions | 75.0 × 58.0 × 80.0 in |
| Brand | Quantum Machinery Group |
