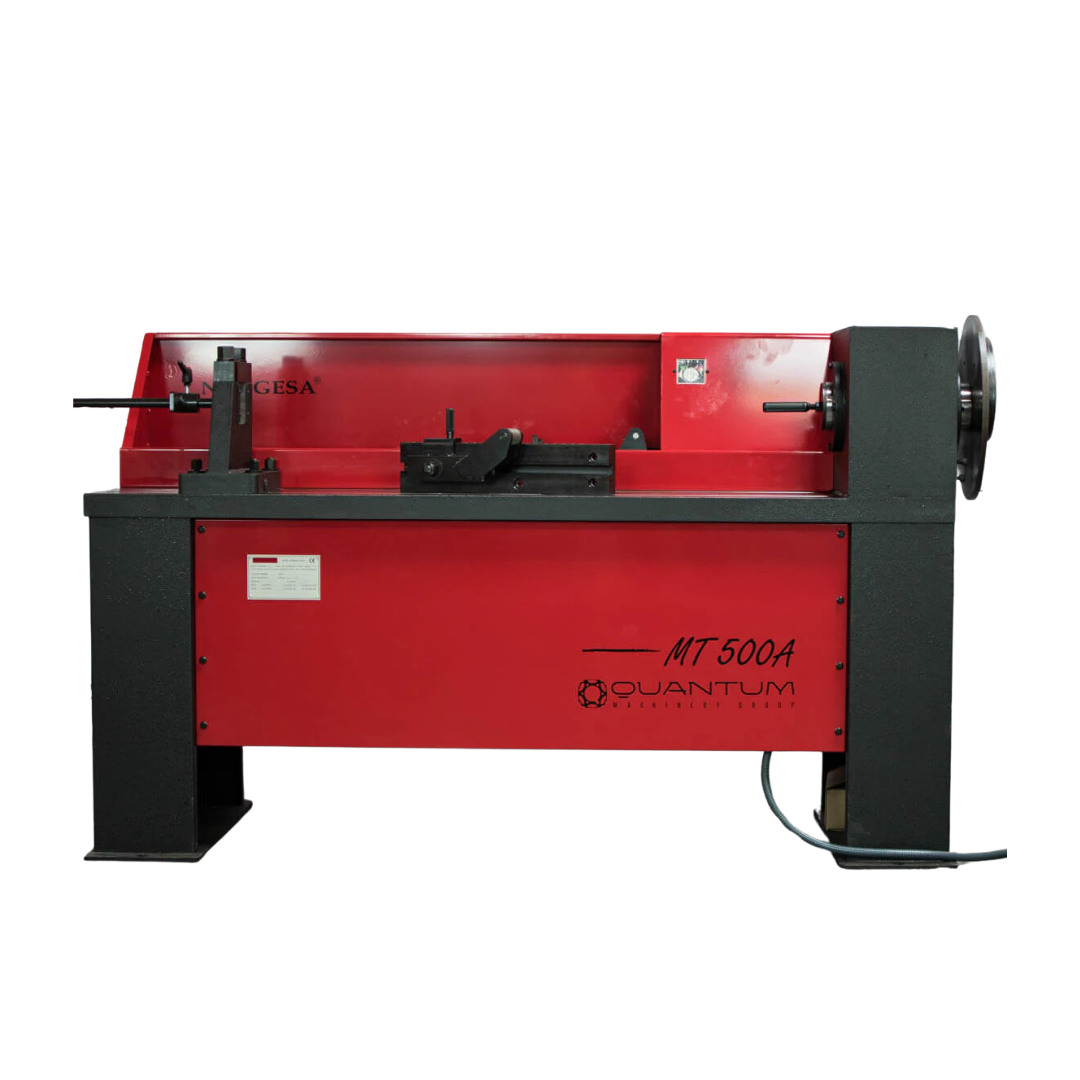

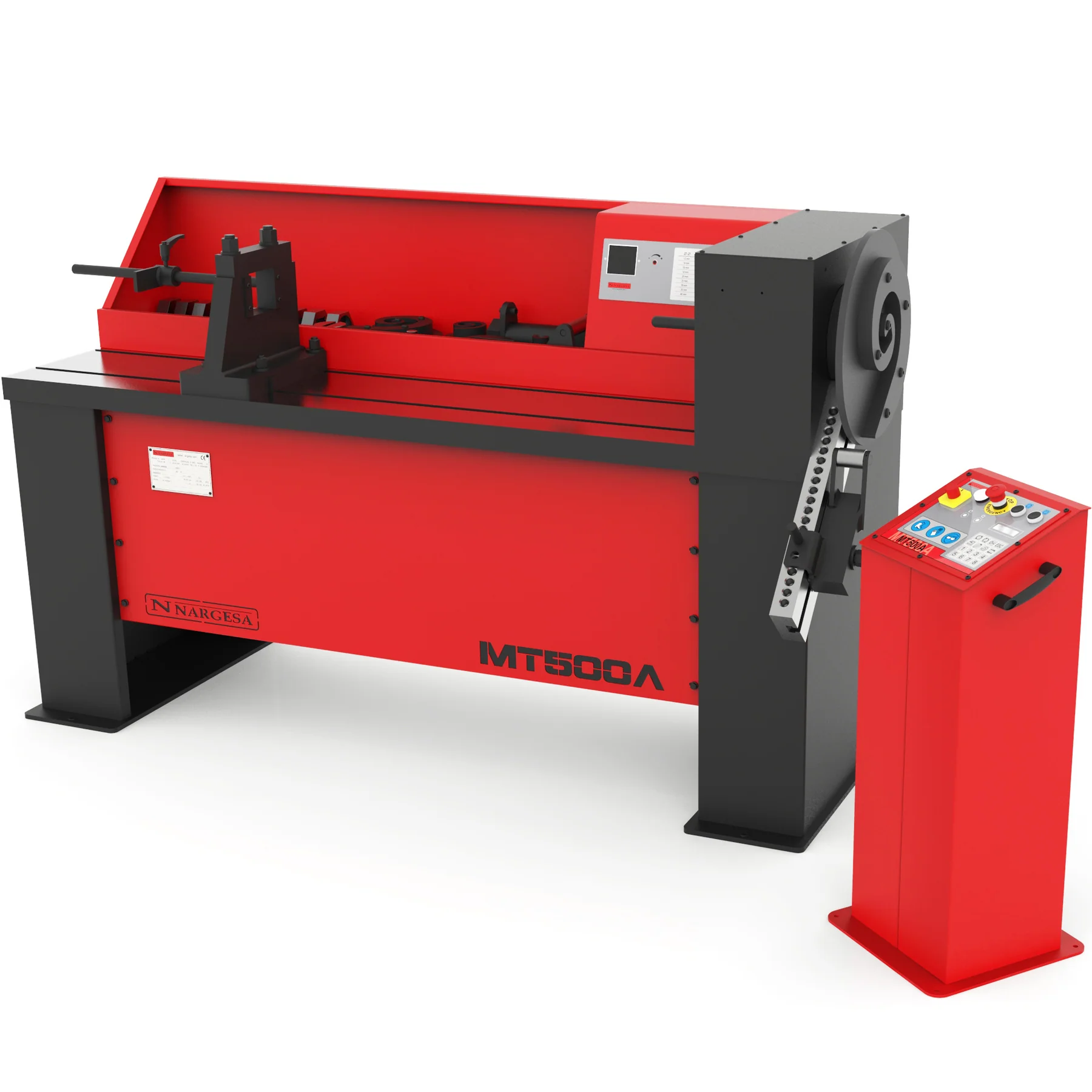

Quantum Machinery Industrial 220V Three Phase 1¾” Bar Twisting and Scrolling Machine MT500A

Quantum Machinery Industrial 220V Three Phase 1¾” Bar Twisting and Scrolling Machine MT500A is a Quantum Machinery Group product in the Ironworkers collection.

Product Details

• Max Twisting Capacity: 1¾”
• Max Bending Capacity: 1”
• Max Scrolling & Bending in Flat Bar: 2” x 3/8”
• Rotary Speed: 4 RPM
• Description
• The Nargesa MT500A Bar Twisting and Scrolling Machine was patented by Prada Nargesa many years ago and it makes Quantum Machinery become a leading company at manufacturing this kind of equipment. It has been made in a welded and mechanized steel monoblock. It is thought to work cold iron. Ideal for making all kinds of pieces for the ornamental forging, balusters, volutes, etc… Used in: Window grills, balusters, tables, chairs… making a lot of different shapes in round, square, tubular profiles, handrails, flat bars, etc.

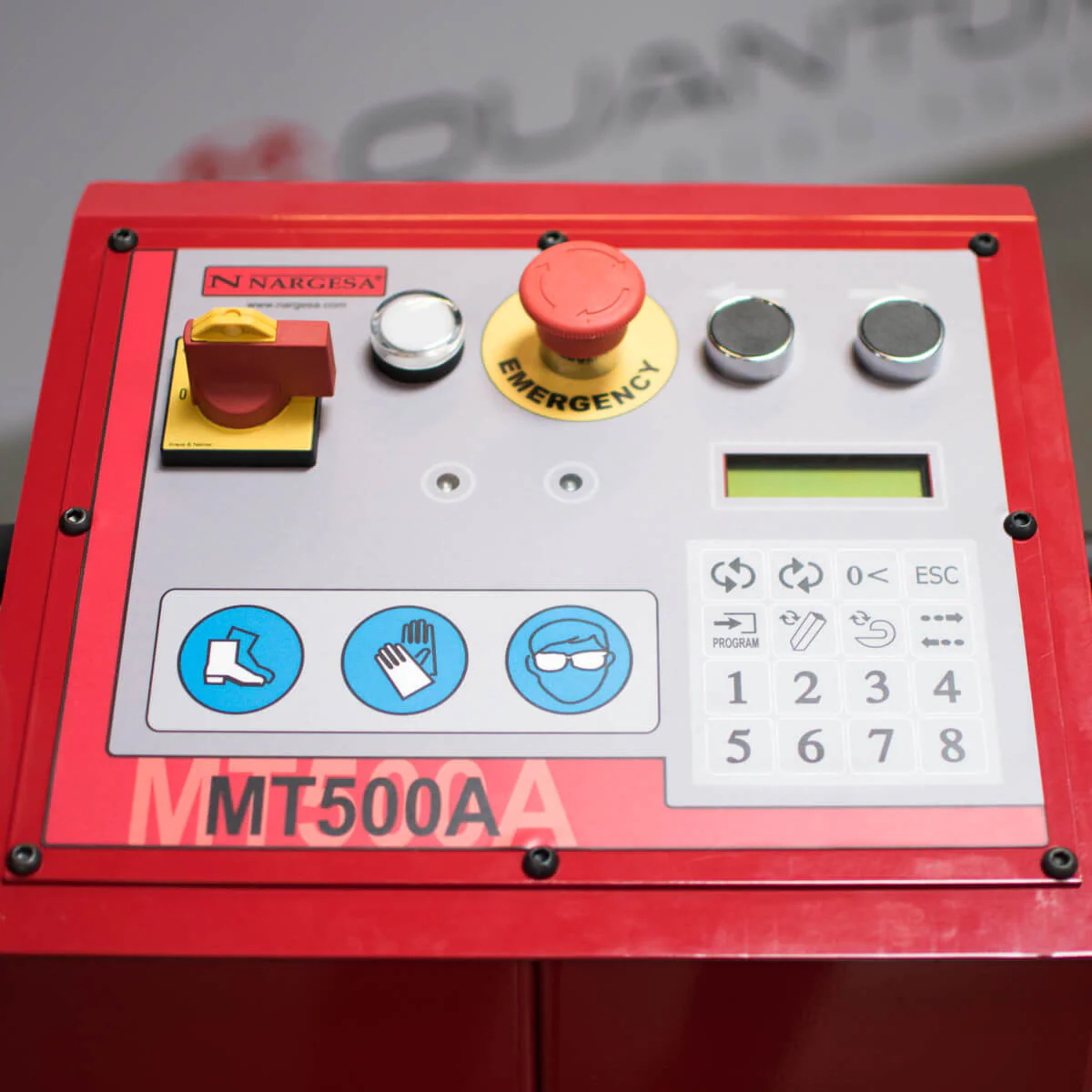

• The MT500A Control Panel
• The electrical panel of the scroll forming machine MT500A is characterized by its simplicity and easy handling. Great capacity of production and it allows to program the starting point and the end point of the piece to be made.
• Easy use
• Digital Screen
• Touch pad
• Piece counter
• Automatic unbolt
• Capacity for 8 different memories
• Features
• Safe and reliable transmission by a motor reducer with a flat treated pinions, achieving a remarkable performance and least maintenance
• Perfect for making all kinds of ornamental standard parts and essential to make your own designs, a lot more demanded in the market. The pieces requested by architects, technicians and final customers, make it a very important tooling in a blacksmith workshop
• Working method by twisting and flexion in COLD
• Machine suitable for small and medium production
• In order to make this kind of special job, Nargesa provides the user with the fitting plates, under request, so the very customer can make his own designs himself
• The twisting machine Nargesa MT500A is equipped with a complete set of standard tooling, by means of which the user can make a great deal of shapes: twisted, scrolls, bending, hooks, chains…
• The MT500A has an NC that enables it to make bigger productions
• Possibility of buying the tooling for the machine in mm or inches
• NC programmer to repeat series, piece counter, automatic unbolt, memories
• Adjustable millimeter scale on its head to make all parts the same
• Electric panel command with double button, right and left, which makes it a very easy handling machine
• Specifications
• Max Continued Scrolling Length: 63.7”
• Motor Power: 4 kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Machine Dims: 88” x 39” x 51”
• Machine Weight: 3,000 lbs
• Optional Add-Ons
• Specialized Tooling Tooling for bending flat rings Tooling for making ‘belly top railing’ Edge scroll tooling Oval scroll tooling Ornamental basket tooling
• Tooling for bending flat rings
• Tooling for making ‘belly top railing’
• Edge scroll tooling
• Oval scroll tooling
• Ornamental basket tooling

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: MT500A
• Shipping Method: LTL Freight
• Weight: 3,200 lb
• Dimensions: 94 × 45 × 58 in
