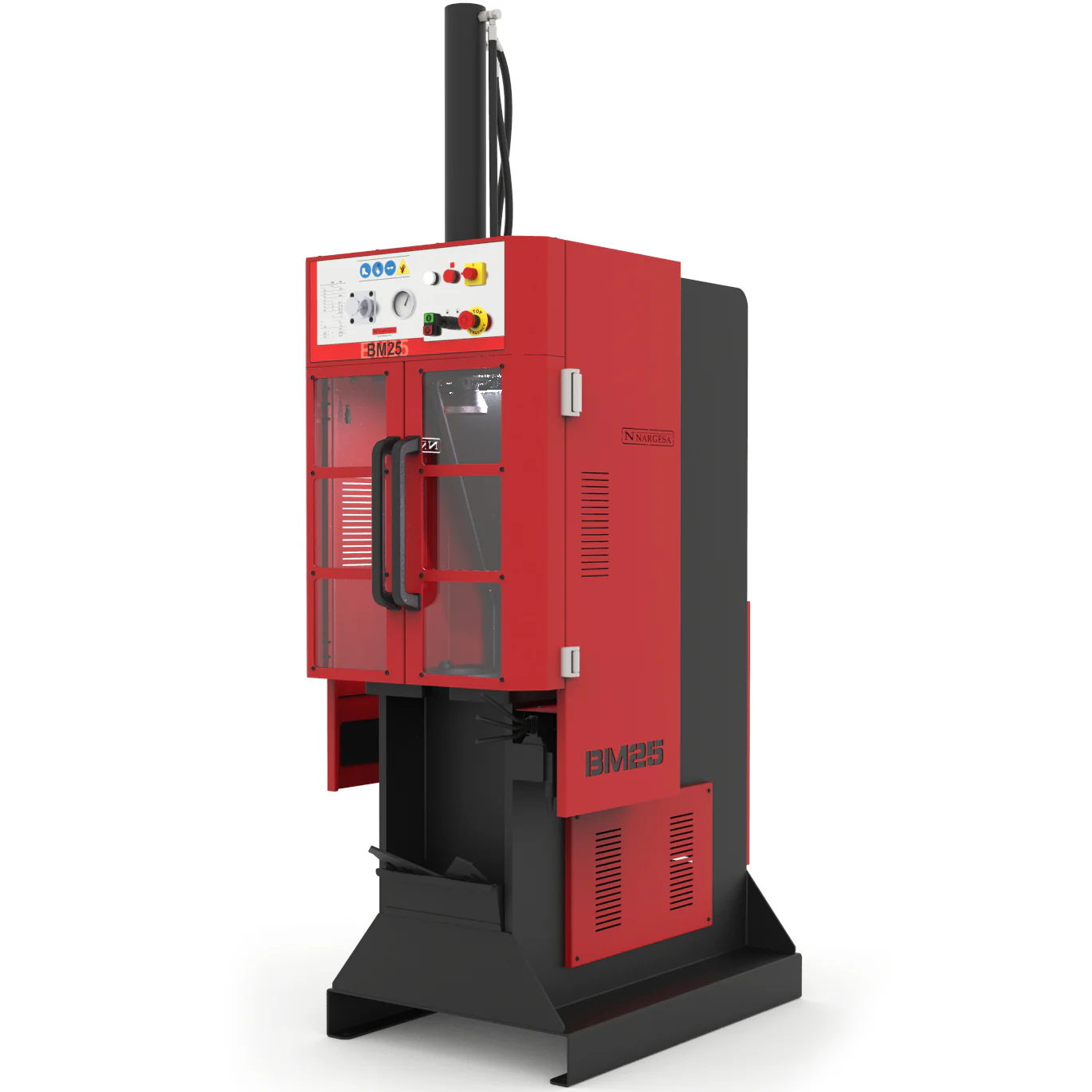

Quantum Machinery Nargesa 480V Three Phase 10 Ton Hydraulic Vertical Broaching Machine BM25
$17,799.60Current price is: $17,799.60.
- Max Broaching Capacity: 0.98”
- Working Speed: 1”/second
- Gooseneck: 11.8”
- Max Piece Diameter: 23.6”
Quantum Machinery Nargesa 480V Three Phase 10 Ton Hydraulic Vertical Broaching Machine BM25 is a Quantum Machinery Group product in the Metal Forming & Shaping collection.
Product Details
- Max Broaching Capacity: 0.98”
- Working Speed: 1”/second
- Gooseneck: 11.8”
- Max Piece Diameter: 23.6”
- Description
- The BM25 Vertical Broaching Machine is designed for both small and medium-scale productions. Notable for its flexibility, dependability, and swift setup, this hydraulic equipment from NARGESA is constructed from a solid, welded, and machined steel monoblock. It’s an essential tool for crafting notches and keyways in a variety of components, including sprockets, pulleys, and gears. Additionally, the BM25 can be utilized as a press for loosening rusted parts and is adept at assembling and disassembling bearings, among other applications.
- Features
- Versatility: it’s used for making small and big pieces. All kinds of broaching and different tolerances. 2mm keyways from 2 up to 25mm or 1”.
- Reliability: due to its way of use the keyway is always made with the required tolerance
- Easy Use: anyone can make a keyway, there’s no need to be a skillful operative
- Fast Setting Up: the preparation time of the machine before making a broaching operation is approximately 1 min
- Advantages: the machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation
- Broaches in millimeters and inches
- Broaches of different kinds and tolerances: ISO J-9, ISO P-9
- Broaches are manufactured under strict quality controls, guaranteeing the higher liability and durability. Made in the USA
- Its versatility, reliability, productivity, and easy handling make it one of the best machines for a maintenance workshop or medium production factory. Medium production defined as less than 350 units
- Specifications
- Hydraulic Power: 10 Tons
- Return Speed: 2.20”/second
- Shank Displacement: 23.6”
- Pump Flow: 7.5 liters
- Motor Power: 3HP / 2.2kW
- Electrical Requirements: 480V / Three Phase / 60Hz
- Bench Dims: 16.5” x 16.5”
- Machine Dims: 32” x 50” x 93”
- Machine Weight: 1,750 lbs
- Optional Add-Ons
- Broaching Accessories
Specifications
- Manufacturer: Quantum Machinery Group
- SKU: BM25(480V)
- Shipping Method: LTL Freight
- Weight: 1,900 lb
- Dimensions: 40 × 58 × 100 in
| Weight | 1900.0 lbs |
|---|---|
| Dimensions | 40.0 × 58.0 × 100.0 in |
| Brand | Quantum Machinery Group |
