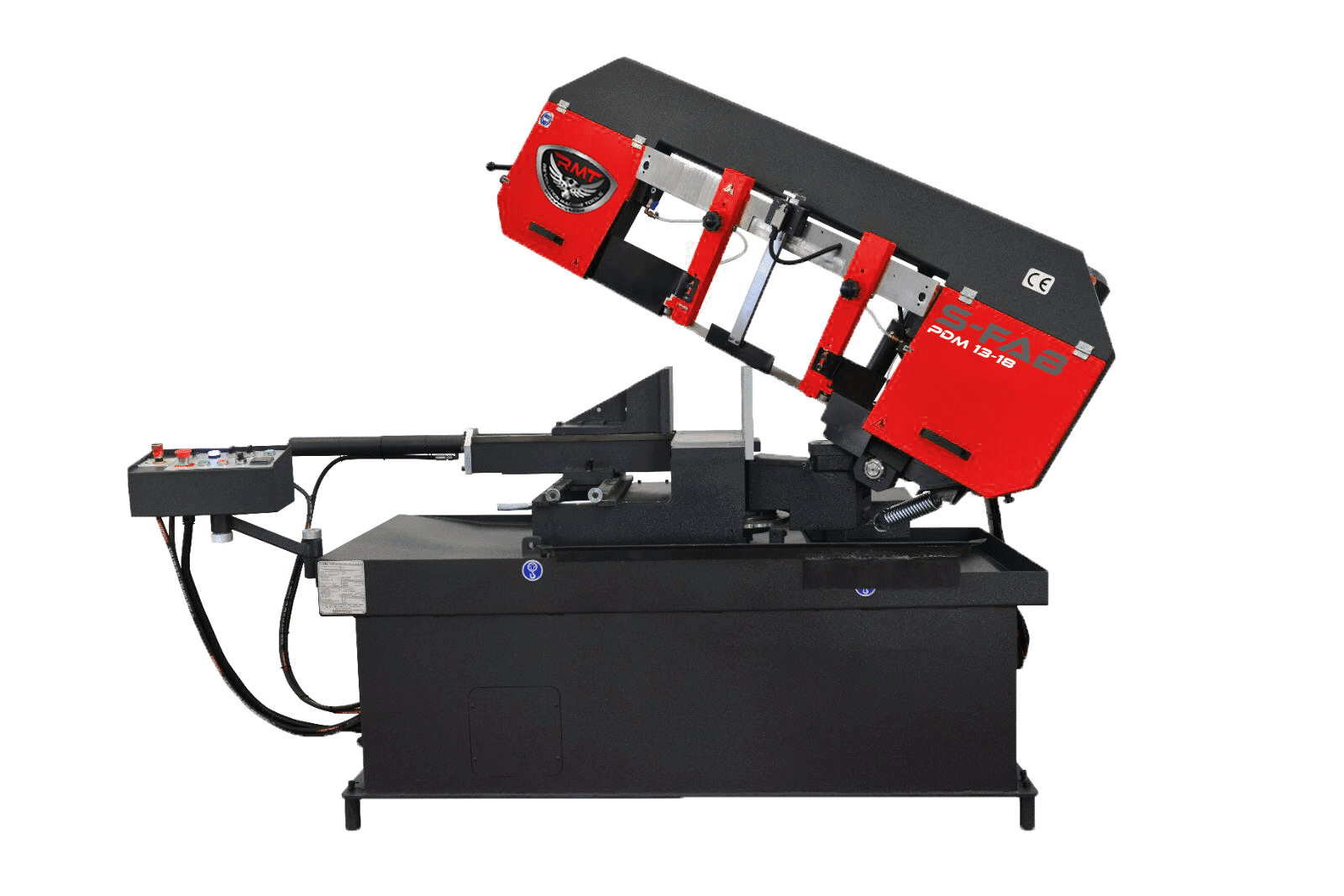

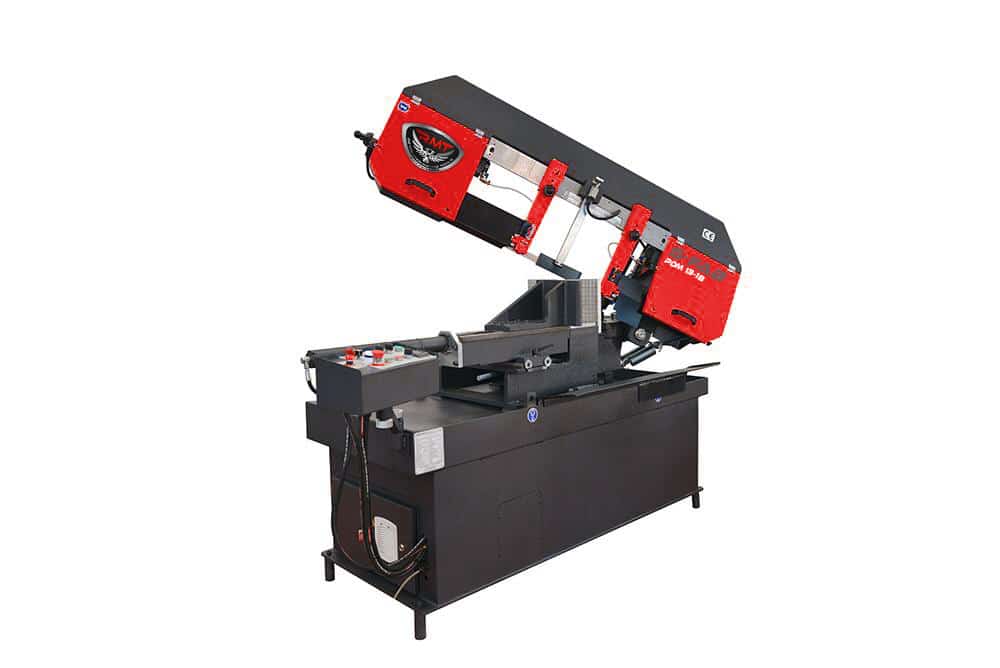

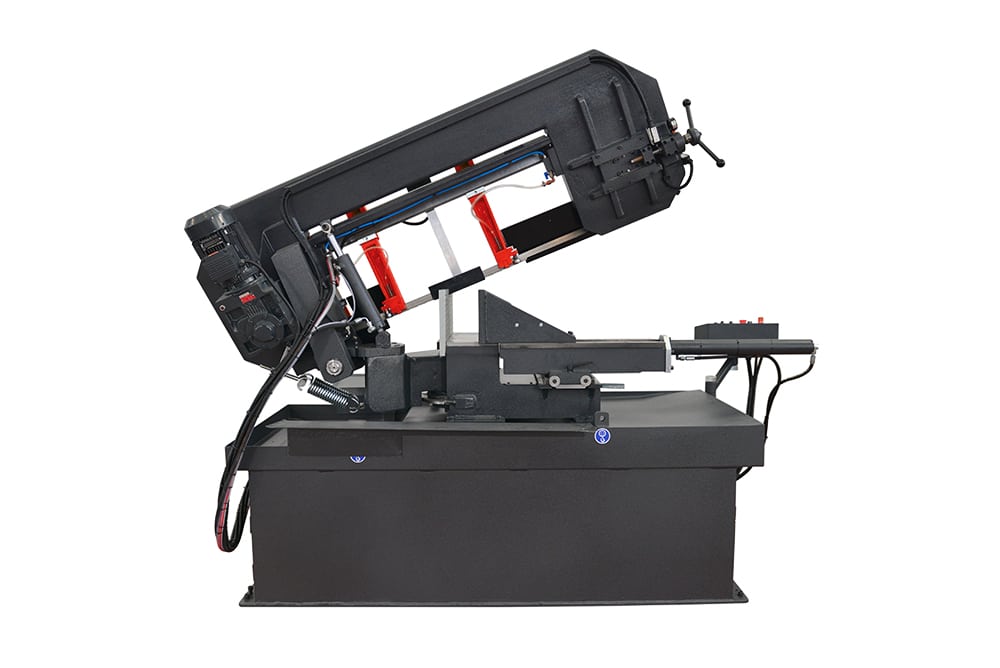

Revolution Machine Tools 3HP Semi-Automatic Pivoting Horizontal Double Miter Band Saw S-FAB PDM 13-18
$29,019.25Current price is: $29,019.25.
- Main Motor: 3 HP
- Hydraulic Motor: 0.5 HP
- Coolant Pump: 0.2 HP
- Capacity: 0°, 30°, 45°, -30°, -45°, -60°
Revolution Machine Tools 3HP Semi-Automatic Pivoting Horizontal Double Miter Band Saw S-FAB PDM 13-18 is a Revolution Machine Tools product in the Band Saws collection.
Product Details
- Main Motor: 3 HP
- Hydraulic Motor: 0.5 HP
- Coolant Pump: 0.2 HP
- Capacity: 0°, 30°, 45°, -30°, -45°, -60°
- Description
- Revolution Machine Tools S-FAB PDM 13-18 Semi-Automatic Pivot Type Double Miter Bandsaw is a horizontal bandsawing machine that is ideal for angle cutting of materials with varying number of cuts. It is possible to cut at variable angles between +45° and -60° by angling the upper body of the machine. The machine cuts hydraulically and then automatically raising to the height after cutting. The material is fed manually to the length stop and the cut is repeated.
- Features
- Control panel
- Blade brush
- Hydraulic vice
- Material length stop
- Security switch
- Height adjustment switch
- Siti heavy duty gearbox
- Infinite variable speed inverter
- Sensitive pressure control
- Hydromechanical blade tension
- Optical saw height adjustment
- Anti-vibration cylinder
- Coolant pump
- Digital angle readout
- Specifications
- Capacity at 0 ° Round: 13" (330 mm) Flat (H x W): 13" X 18" (450 x 320 mm) Square: 12.6" X 12.6" (320 x 320 mm)
- Round: 13" (330 mm)
- Flat (H x W): 13" X 18" (450 x 320 mm)
- Square: 12.6" X 12.6" (320 x 320 mm)
- Capacity at 30 ° Round: 12.6" (320 mm) Flat (H x W): 16.1"x 12.6" (410 x 320 mm) Square: 12.6" (320 mm)
- Round: 12.6" (320 mm)
- Flat (H x W): 16.1"x 12.6" (410 x 320 mm)
- Square: 12.6" (320 mm)
- Capacity at 45 ° Round: 12.6" (320 mm) Flat (H x W): 13" X 12.6" (330 x 320 mm) Square: 12.6" (320 mm)
- Flat (H x W): 13" X 12.6" (330 x 320 mm)
- Capacity at -30 ° Round: 12.6" (320 mm) Flat (H x W): 16.5" X 12.6" (420 x 320 mm) Square: 12.6" (320 mm)
- Flat (H x W): 16.5" X 12.6" (420 x 320 mm)
- Capacity at -45 ° Round: 12.6" (320 mm) Flat (H x W): 13.4" X 12.6" (340 x 320 mm) Square: 12.6" (320 mm)
- Flat (H x W): 13.4" X 12.6" (340 x 320 mm)
- Capacity at -60 ° Round: 9.5" (240 mm) Flat (H x W): 9.1"x8.7" (230 x 220 mm) Square: 8.7" (220 mm)
- Round: 9.5" (240 mm)
- Flat (H x W): 9.1"x8.7" (230 x 220 mm)
- Square: 8.7" (220 mm)
- Main Motor: 3 HP (2.2 kw)
- Hydraulic Motor: 0.5 HP (0.37 kw)
- Coolant Pump: 0.2 HP (0.12 kw)
- Cutting Speeds: 65 – 328 ft/min (20 – 100 m/min)
- Band Dims.: 163" x 1.34" x 0.043" (4160 x 34 x 1.1 mm)
- Working Height: 40.8" (1035 mm)
- Weight: 2,094 lbs. (950 kg)
- Machine Dims. (L x W x H): 88” x 35” x 74” (2230 mm x 880 mm x 1890 mm)
- Options
- Hydraulic blade tension
- Dropsa air/oil clean lubrication system
- Micro mist cooling
- 10ft roller table
- 10ft motorized roller table
- Laser line
- 230V or 460V
Specifications
- Manufacturer: Revolution Machine Tools
- SKU: S-FAB PDM 13-18
- Shipping Method: LTL Freight
- Weight: 2,294 lb
- Dimensions: 93 × 40 × 79 in
- Country of Origin: Turkey
- Warranty: 1 Year (Parts)
| Weight | 2294.0 lbs |
|---|---|
| Dimensions | 93.0 × 40.0 × 79.0 in |
| Brand | Revolution Machine Tools |
